Overview PVC Insulated Flexible Cable is a low voltage flexible power supply cable used in many household appliances such as refrigerators, washing machines and spin dryers. The cable has PVC insulation with a PVC outer sheath. Standards BS EN 50525-2-11 Flame propagation to BS EN 50265 Construction Conductor: Plain Annealed Flexible Copper Conductors Insulation: PVC Sheath: PVC Sheath Colour: Black or White Characteristics Voltage Rating: 300/500 volts Temperature limits: Fixed -5°C to +60°C, Flexing +5°C to +60°C Minimum Bending Radius:Fixed 2 x overall diameterFlexing x 6 overall diameter Should not be installed at temperatures below 0°C Core IDs 2 Core: Brown, Blue 3 Core: Brown, Blue, G/Y 4 Core: Brown, Black, Grey, G/Y 5 Core: Brown, Black, Grey, Blue, G/Y Please note: If you require advice on which cable to use or how and where to install it, it is recommended that you consult a relevant qualified tradesperson.

Read more less

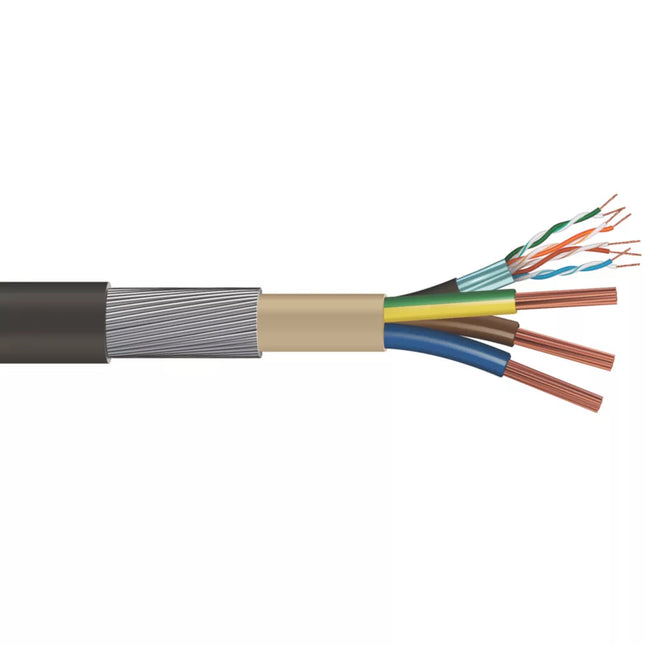

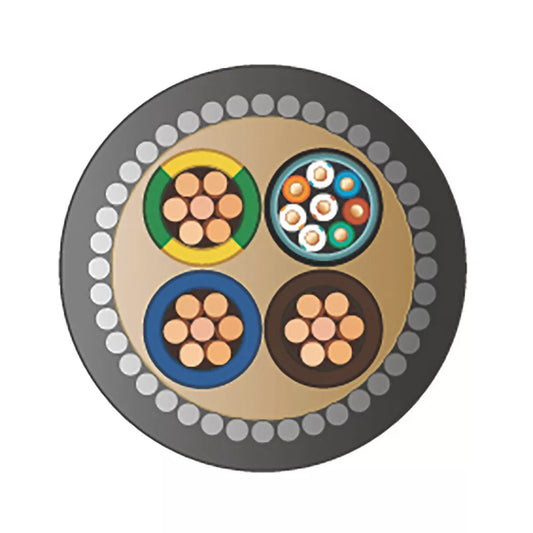

WHAT'S IN THE BOX 1x TIME EV-ULTRA BLACK 3-CORE 10MM² & CAT 5E 4-PAIR ARMOURED EV CHARGING CABLE 1M COIL (901RG) NOTES FROM MT EXPERT Brown, Blue, Green/Yellow & Colour Coded Cores Twisted in Pairs OVERVIEW TIME EV-ULTRA BLACK 3-CORE 10MM² & CAT 5E 4-PAIR ARMOURED EV CHARGING CABLE 1M COIL (901RG) Galvanised steel wire armoured EV-Ultra cable. Includes power conductors and a cat 5e screened data cable, encased in a double-insulated sheath for protection. Ideal for installations that require both power and data. Easy to handle and route through walls and buildings. Can be clipped to surface, on cable tray/ladder work and embedded in concrete as well as laid direct in ground if suitable mechanical protection is in place. Suitable for use with the installation of electric vehicle charge points. This cable is priced per metre. To order, please enter the number of metres required and the cable will be supplied as one length. Black PVC Sheathed Cable Brown, Blue, Green/Yellow & Colour Coded Cores Twisted in Pairs 7 Strands Per Core For Indoor Use Cut to Length SPECIFICATION Brand Time Cable Code EV-Ultra Cable End Type Bare Cable Length 1 m Cable Product Type Armoured EV Charging Cable Profile Round Cable Voltage Rating 600/1000 V Coil or Drum Coil Conductor Area 10 mm² External Diameter 20.2 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 90 °C Minimum Operating Temperature -15 °C Model No SF901RG No. of Cable Cores 3-Core No. of Strands Per Core 7 Strands Per Core Pack Size 1 Pieces in Pack/Case 1 Product Type Armoured EV Charging Sheath Colour Black

Read more less

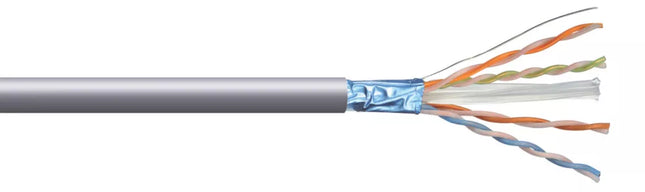

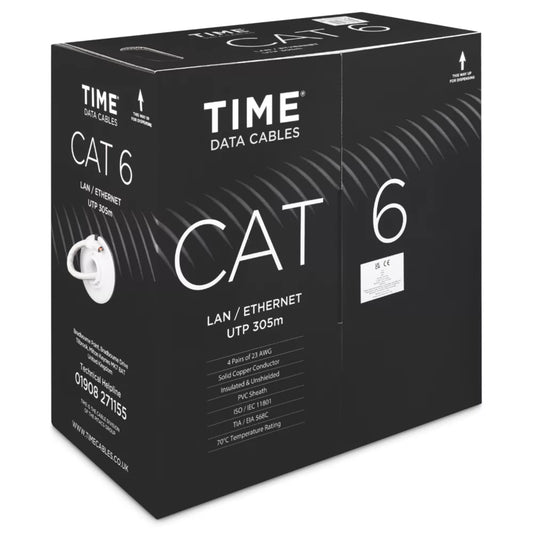

WHAT'S IN THE BOX 1x TIME CAT 6 GREY 4-PAIR 8-CORE UNSHIELDED ETHERNET CABLE 305M BOX (625JY) NOTES FROM MT EXPERT Suitable for 10-Gigabit Ethernet Networking Applications OVERVIEW TIME CAT 6 GREY 4-PAIR 8-CORE UNSHIELDED ETHERNET CABLE 305M BOX (625JY) PVC sheath. Suitable for 10-Gigabit ethernet networking applications. Colour Coded Cores Twisted in Pairs Unshielded Grey PVC Sheathed Cable For Indoor Use Suitable for 10-Gigabit Ethernet Networking Applications Rated to 70°C Brand Time Cable Code Cat 6 Cable End Type Bare Cable Length 305 m Cable Product Type Ethernet Cable Profile Round Coil or Drum Box External Diameter 6.3 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Model No SF625JY No. of Cable Cores 8-Core Pack Size 1 Parent Colour Grey Pieces in Pack/Case 1 Product Type Ethernet Cable Sheath Colour Grey Shielded/Unshielded Unshielded

Read more less

PVC-sheathed cable suitable for washing machines and tumble dryers. White PVC Sheathed Cable Brown, Blue & Green/Yellow Cores 45 Strands Per Core Suitable for Washing Machines & Tumble Dryers   Specification Brand Time Cable Code 3183Y Cable End Type Bare Cable Length 50 m Cable Product Type Flexible Cable Profile Round Cable Voltage Rating 300/500 V Coil or Drum Drum Conductor Area 2.5 mm² External Diameter 10.5 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 70 °C Minimum Operating Temperature -15 °C Model No SF884JY No. of Cable Cores 3-Core No. of Strands Per Core 45 Strands Per Core Pack Size 1 Parent Colour White Pieces in Pack/Case 1 Product Type Flexible Cable Sheath Colour White

Read more less

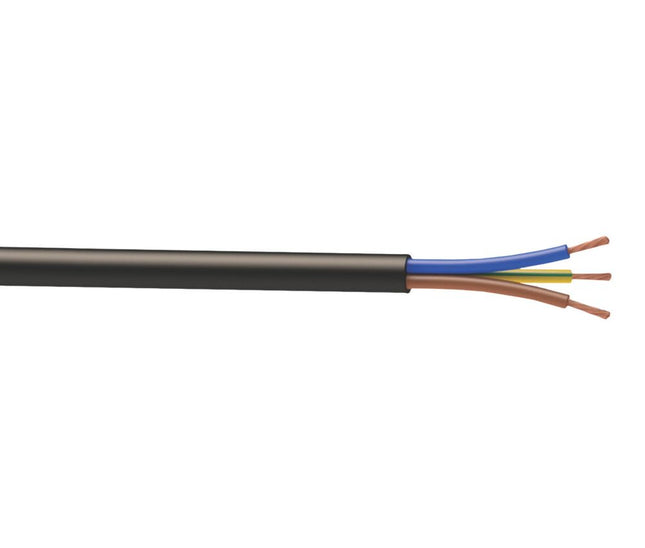

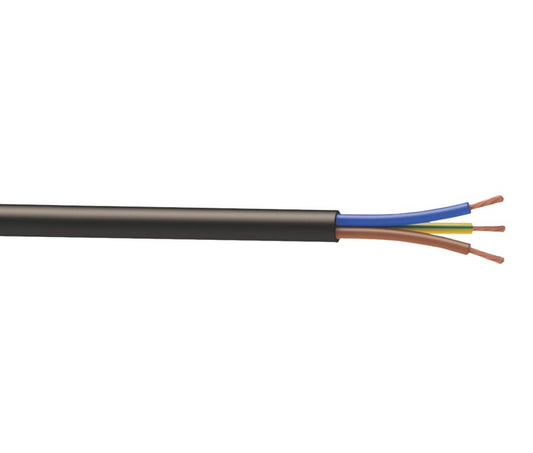

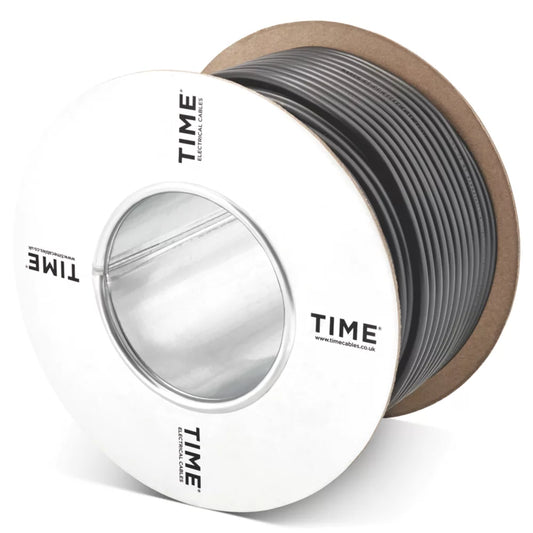

WHAT'S IN THE BOX 1x TIME 3183Y BLACK 3-CORE 1.5MM² FLEXIBLE CABLE 50M DRUM (588FJ) NOTES FROM MT EXPERT Suitable for Washing Machines & Extension Leads OVERVIEW TIME 3183Y BLACK 3-CORE 1.5MM² FLEXIBLE CABLE 50M DRUM (588FJ) Black PVC Sheathed Cable Brown, Blue & Green/Yellow Cores 27 Strands Per Core Suitable for Washing Machines & Extension Leads Brand Time Cable Code 3183Y Cable End Type Bare Cable Length 50 m Cable Product Type Flexible Cable Profile Round Cable Voltage Rating 300/500 V Coil or Drum Drum Conductor Area 1.5 mm² External Diameter 8.1 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 70 Minimum Operating Temperature -15 °C Model No SF588FJ No. of Cable Cores 3-Core No. of Strands Per Core 27 Strands Per Core Pack Size 1 Parent Colour Black Pieces in Pack/Case 1 Product Type Flexible Cable Sheath Colour Black

Read more less

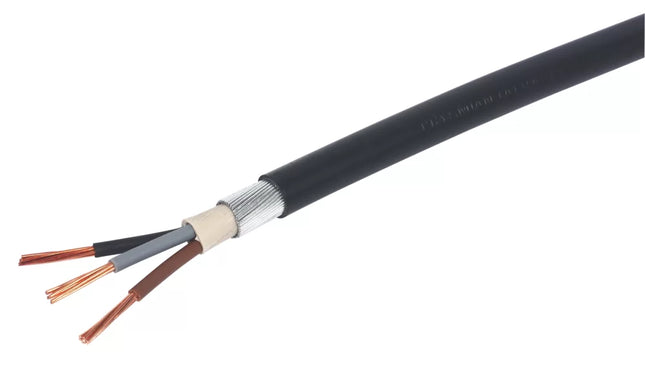

WHAT'S IN THE BOX 1x PRYSMIAN 6943X BLACK 3-CORE 6MM² ARMOURED CABLE 25M COIL (80868) NOTES FROM MT EXPERT Black PVC Sheathed Cable OVERVIEW PRYSMIAN 6943X BLACK 3-CORE 6MM² ARMOURED CABLE 25M COIL (80868) Rigid. PVC sheath. Brown / black / grey XLPE insulation. Black PVC Sheathed Cable Black, Brown & Grey Cores 7 Strands Per Core Brand Prysmian Cable Code 6943X Cable End Type Bare Cable Length 25 m Cable Product Type Armoured Cable Profile Round Cable Voltage Rating 600/1000 V Coil or Drum Coil Conductor Area 6 mm² External Diameter 15.6 mm Indoor/Outdoor Usage Indoor & Outdoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 90 °C Minimum Operating Temperature -15 °C Model No 20148710 No. of Cable Cores 3-Core No. of Strands Per Core 7 Strands Per Core Pack Size 1 Parent Colour Black Pieces in Pack/Case 1 Product Type Electrical Cable Sheath Colour Black

Read more less

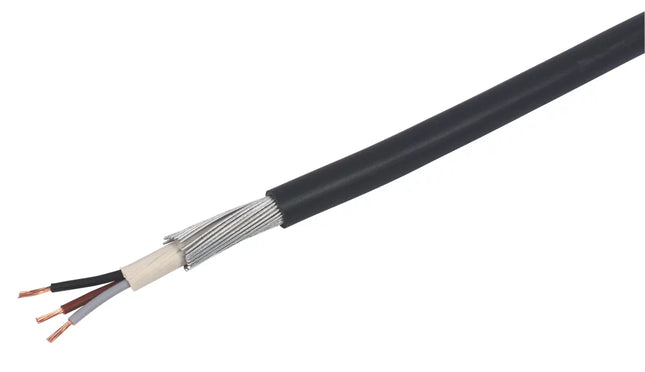

WHAT'S IN THE BOX 1x PRYSMIAN 6943X BLACK 3-CORE 2.5MM² ARMOURED CABLE 50M DRUM (28160) NOTES FROM MT EXPERT Black PVC Sheathed Cable OVERVIEW PRYSMIAN 6943X BLACK 3-CORE 2.5MM² ARMOURED CABLE 50M DRUM (28160) Rigid. PVC sheath. Brown / black / grey XLPE insulation. Black PVC Sheathed Cable Black, Brown & Grey Cores 7 Strands Per Core Brand Prysmian Cable Code 6943X Cable End Type Bare Cable Length 50 m Cable Product Type Armoured Cable Profile Round Cable Voltage Rating 600/1000 V Coil or Drum Drum Conductor Area 2.5 mm² External Diameter 13.2 mm Indoor/Outdoor Usage Indoor & Outdoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 90 °C Minimum Operating Temperature -15 °C Model No 20145298 No. of Cable Cores 3-Core No. of Strands Per Core 7 Strands Per Core Pack Size 1 Parent Colour Black Pieces in Pack/Case 1 Product Type PVC Armoured Cable Sheath Colour Black

Read more less

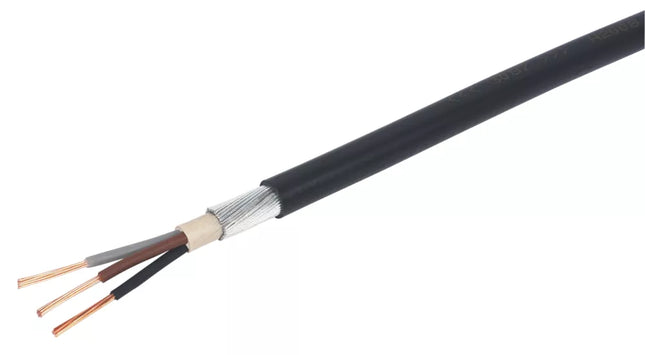

WHAT'S IN THE BOX 1x PRYSMIAN 6943X BLACK 3-CORE 2.5MM² ARMOURED CABLE 25M COIL (38769) NOTES FROM MT EXPERT Black PVC Sheathed Cable OVERVIEW PRYSMIAN 6943X BLACK 3-CORE 2.5MM² ARMOURED CABLE 25M COIL (38769) Rigid. PVC sheath. Brown, black and grey XLPE insulation. Black PVC Sheathed Cable Black, Brown & Grey Cores 7 Strands Per Core Brand Prysmian Cable Code 6943X Cable End Type Bare Cable Length 25 m Cable Product Type Armoured Cable Profile Round Cable Voltage Rating 600/1000 V Coil or Drum Coil Conductor Area 2.5 mm² External Diameter 13.2 mm Indoor/Outdoor Usage Indoor & Outdoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 90 °C Minimum Operating Temperature -15 °C Model No 20148704 No. of Cable Cores 3-Core No. of Strands Per Core 7 Strands Per Core Pack Size 1 Parent Colour Black Pieces in Pack/Case 1 Product Type PVC Armoured Cable Sheath Colour Black

Read more less

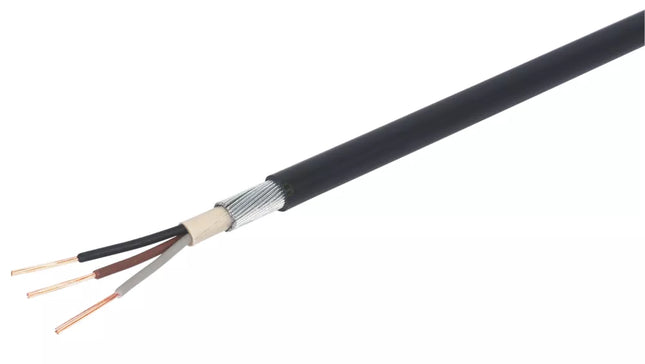

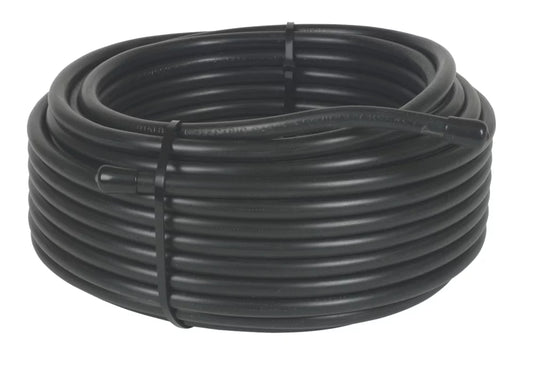

WHAT'S IN THE BOX 1x PRYSMIAN 6943X BLACK 3-CORE 1.5MM² ARMOURED CABLE 25M COIL (53747) NOTES FROM MT EXPERT Black PVC Sheathed Cable OVERVIEW PRYSMIAN 6943X BLACK 3-CORE 1.5MM² ARMOURED CABLE 25M COIL (53747) Rigid. PVC sheath. Brown, black and grey XLPE insulation. Black PVC Sheathed Cable Black, Brown & Grey Cores 7 Strands Per Core Brand Prysmian Cable Code 6943X Cable End Type Bare Cable Length 25 m Cable Product Type Armoured Cable Profile Round Cable Voltage Rating 600/1000 V Coil or Drum Coil Conductor Area 1.5 mm² External Diameter 11.7 mm Indoor/Outdoor Usage Indoor & Outdoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 90 °C Minimum Operating Temperature -15 °C Model No 20148699 No. of Cable Cores 3-Core No. of Strands Per Core 7 Strands Per Core Pack Size 1 Parent Colour Black Pieces in Pack/Case 1 Product Type PVC Armoured Cable Sheath Colour Black

Read more less

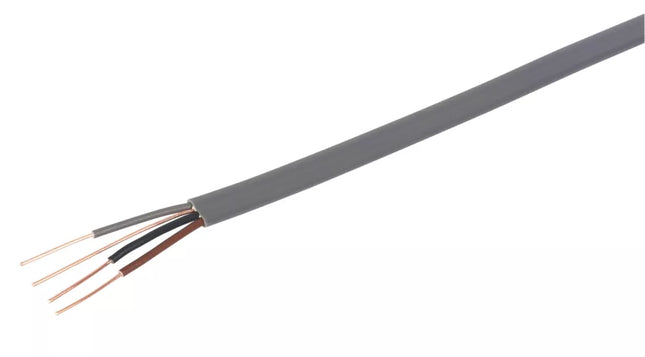

WHAT'S IN THE BOX 1x PRYSMIAN 6243YH GREY 1MM² 3-CORE & EARTH CABLE 100M DRUM (85769) NOTES FROM MT EXPERT Brown, Black & Grey Cores with Bare Earth OVERVIEW PRYSMIAN 6243YH GREY 1MM² 3-CORE & EARTH CABLE 100M DRUM (85769) Rigid. PVC sheath. Brown, black and grey PVC insulation. Grey PVC Sheathed Cable Brown, Black & Grey Cores with Bare Earth Solid Core Wire Flat for Easy Installation in Plaster Brand Prysmian Cable Code 6243YH Cable End Type Bare Cable Length 100 m Cable Product Type 3-Core & Earth Cable Profile Flat Cable Voltage Rating 300/500 V Coil or Drum Drum Conductor Area 1 mm² External Diameter 10.7 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 70 °C Minimum Operating Temperature -15 °C Model No 20144969 No. of Cable Cores 3-Core No. of Strands Per Core Solid Core Wire Pack Size 1 Parent Colour Grey Pieces in Pack/Case 1 Product Type Flat PVC Wiring Cable Sheath Colour Grey

Read more less

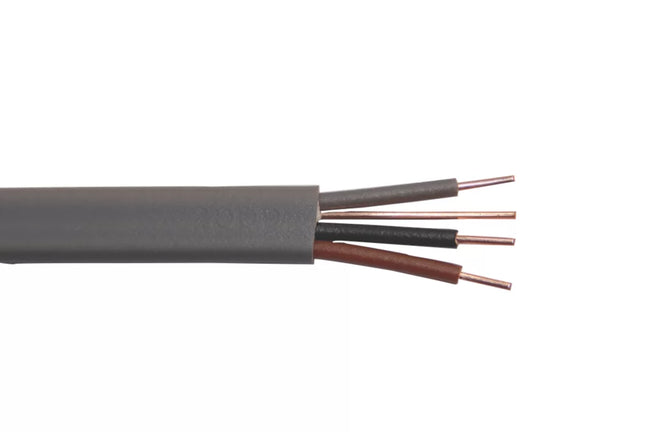

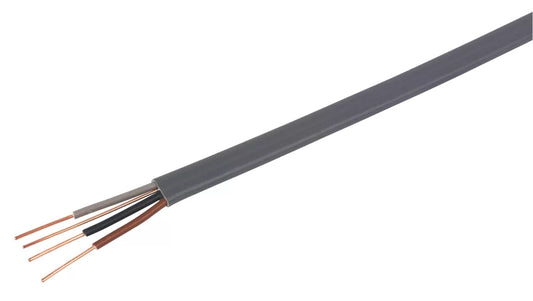

WHAT'S IN THE BOX 1x PRYSMIAN 6243YH GREY 1.5MM² 3-CORE & EARTH CABLE 100M DRUM (45351) NOTES FROM MT EXPERT Brown, Black & Grey Cores with Bare Earth OVERVIEW PRYSMIAN 6243YH GREY 1.5MM² 3-CORE & EARTH CABLE 100M DRUM (45351) Rigid. PVC sheath. Brown, black and grey PVC insulation. Grey PVC Sheathed Cable Brown, Black & Grey Cores with Bare Earth Solid Core Wire Flat for Easy Installation in Plaster Brand Prysmian Cable Code 6243YH Cable End Type Bare Cable Length 100 m Cable Product Type 3-Core & Earth Cable Profile Flat Cable Voltage Rating 300/500 V Coil or Drum Drum Conductor Area 1.5 mm² External Diameter 11.7 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 70 °C Minimum Operating Temperature -15 °C Model No 20144974 No. of Cable Cores 3-Core No. of Strands Per Core Solid Core Wire Pack Size 1 Parent Colour Grey Pieces in Pack/Case 1 Product Type PVC Flat Wiring Cable Sheath Colour Grey

Read more less

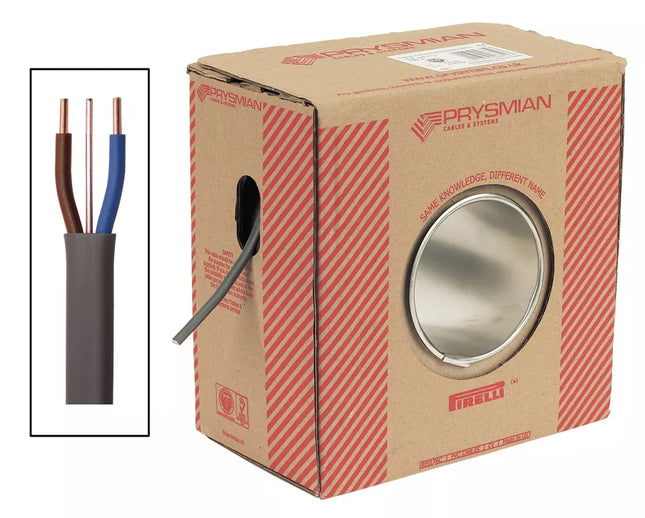

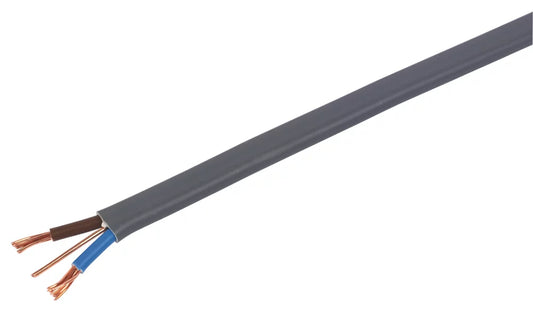

WHAT'S IN THE BOX 1x PRYSMIAN 6242Y GREY 6MM² TWIN & EARTH CABLE 50M DRUM (54052) NOTES FROM MT EXPERT Flat for Easy Installation in Plaster OVERVIEW PRYSMIAN 6242Y GREY 6MM² TWIN & EARTH CABLE 50M DRUM (54052) Rigid. PVC sheath. Brown and blue PVC insulation. Grey PVC Sheathed Cable Brown & Blue Cores with Bare Earth 7 Strands Per Core Flat for Easy Installation in Plaster Brand Prysmian Cable Code 6242Y Cable End Type Bare Cable Length 50 m Cable Product Type Twin & Earth Cable Profile Flat Cable Voltage Rating 300/500 V Coil or Drum Drum Conductor Area 6 mm² External Diameter 13.1 mm Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Maximum Operating Temperature 70 °C Minimum Operating Temperature -15 °C Model No 20145146 No. of Cable Cores 2-Core No. of Strands Per Core 7 Strands Per Core Pack Size 1 Parent Colour Grey Pieces in Pack/Case 1 Product Type PVC Flat Wiring Cable Sheath Colour Grey
