WHAT'S IN THE BOX 1x LABGEAR HDMI 19-PIN GOLD CABLE 3M (51058) NOTES FROM MT EXPERT Supports DTS-HD Master Audio OVERVIEW LABGEAR HDMI 19-PIN GOLD CABLE 3M (51058) Oxygen-free copper cable with 24ct gold-plated connectors. Features RMI/EMI interference suppressors. Supports DTS-HD, Dolby TrueHD and SA-CD audio and HD 1080p/120Hz, 24fps. Black PVC Cable Shielded Integrated Ethernet Channel Supports DTS-HD Master Audio RMI/EMI Filters Reduce Noise SPECIFICATION Brand Labgear Cable End Type HDMI Cable Length 3 m Cable Profile Round Indoor/Outdoor Usage Indoor Manufacturer Guarantee 1 Year Guarantee Pack Size 1 Parent Colour Black Pieces in Pack/Case 1 Product Type 19-Pin Gold Cable Sheath Colour Black Shielded/Unshielded Shielded

Read more less

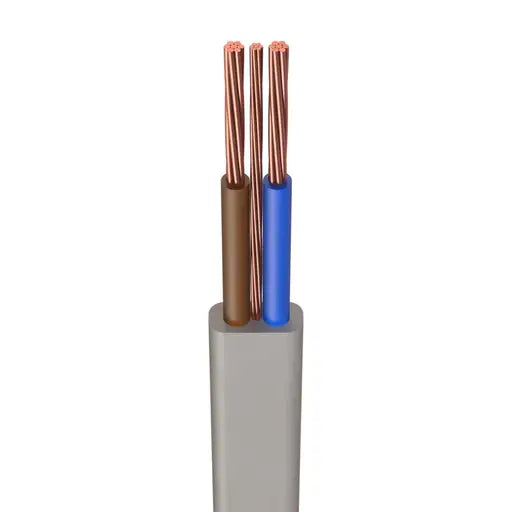

Overview Domestic wiring cable. This cable has a bare protective conductor plus 1, 2 or 3 cores. Used for fixed installations in dry or damp premises clipped direct to the surface, on trays or in free air. Where mechanical protection is required, it can be laid in conduit or trunking. Standards BS6004 Flame propagation: BS EN 50265 BS EN 50363-3 BASEC Approved Construction Conductor:up to 4mm2 - Class 1 Solid Annealed Compacted Circular Copper Conductorfrom 4mm2 - Class 2 Stranded Plain Annealed Compacted Circular Copper Conductor Insulation: PVC Sheath: PVC Sheath Colour: Blue Characteristics Voltage Rating: 300/500 Volts Temperature Rating: -5°C to +70°C Minimum Bending Radius: As Per Manufacturers Datasheet Should not be installed at temperatures below 0°C to +60°C Core IDs 1 Core: Brown 2 Core: Brown, Brown 2 Core: Brown, Blue 3 Core: Brown, Blue, Grey Please note: If you require advice on which cable to use or how and where to install it, it is recommended that you consult a relevant qualified tradesperson.

Read more less

Excel Cat5e ethernet patch lead cable U/UTP PVC are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA 568 C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded stranded copper conductors twisted together to form four pairs. The whole cable is produced in a PVC sheath and is highly flexible and easy to use.Cat5e Patch Lead CableU/UTP No Overall ScreeningNo Conductor Screening24 AWG size conductorsSpecification core insulation PEConductor surface: BareAWG size: 24Conductor category: Class 2 = strandedTotal number of cores: 8Stranding element: PairsSpecification core insulation: PE   Brand Excel Reference 011609 Data sheet Type Cable Features Suitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Yellow Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-STRANDED-C5 Ethernet Version Cat5E Copper

Read more less

Excel Cat5e cable U/UTP PE external Grade Fca are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA‐C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper polyethylene insulated conductors twisted together to form four pairs.The whole cable is produced in a PE sheath which is metre marked and labelled with part code and DoP information.Cat5e Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningOuter sheath colour BlackReaction-to-fire class according to EN 13501-6: Fca24 AWG size conductorsUV Exposure tested in accordance with ASTM G154 & G155Conductor surface: BareAWG size: 24Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PE     Brand Excel Reference 011602 In stock Data sheet Type CableExternal Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Black Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-5E-REELS Ethernet Version Cat5E Copper

Read more less

Excel solid Cat6 ethernet cable U/UTP LSOH CPR Euroclass Dca manufactured and tested to the TIA/EIA 568‐B.2? EN50173? and ISO/ IEC 11801 Cat 6 specifications 305m or 500m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.Cat6 Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningReaction-to-fire class according to EN 13501-6: DcaSmoke development class according to EN 13501-6: s2Key FeaturesConductor surface: BareAWG size: 23Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PELow Smoke CableLow smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.Euroclass Cable!Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.     Brand Excel Reference 011629 In stock  Data sheet Type Cable Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 100m Colour White Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-C6-REELS Ethernet Version Cat6

Read more less

Excel solid Cat6 ethernet cable U/UTP LSOH CPR Euroclass Dca manufactured and tested to the TIA/EIA 568‐B.2? EN50173? and ISO/ IEC 11801 Cat 6 specifications 305m or 500m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.Cat6 Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningReaction-to-fire class according to EN 13501-6: DcaSmoke development class according to EN 13501-6: s2Key FeaturesConductor surface: BareAWG size: 23Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PELow Smoke CableLow smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.Euroclass Cable!Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.     Brand Excel Reference 011610 In stock  Data sheet Type Cable Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Violet Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-CAT6-REEL Ethernet Version Cat6

Read more less

Excel solid Cat5e ethernet cable U/UTP Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.Cat5e Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningOuter sheath colour GreyKey FeaturesConductor surface: BareAWG size: 24Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: Pairs   Brand Excel Reference 011603 In stock 24 Items Data sheet Type Cable Features Suitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Grey Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-5E-REELS Ethernet Version Cat5E Copper

Read more less

Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA‐C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.Cat5e Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningOuter sheath colour YellowReaction-to-fire class according to EN 13501-6: DcaSmoke development class according to EN 13501-6: s2Key FeaturesConductor surface: BareAWG size: 24Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PELow Smoke CableLow smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.Euroclass Cable!Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.     Brand Excel Reference 011597 In stock Data sheet Type Cable Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Yellow Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-5E-REELS Ethernet Version Cat5E Copper

Read more less

Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 1180 EN 50173 and ANSI/TIA 568 C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.Cat5e Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningOuter sheath colour RedReaction-to-fire class according to EN 13501-6: DcaSmoke development class according to EN 13501-6: s2Key FeaturesConductor surface: BareAWG size: 24Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PELow Smoke CableLow smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.Euroclass Cable!Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.   Brand Excel Reference 011599 In stock 4 Items Data sheet Type Cable Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Red Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-5E-REELS Ethernet Version Cat5E Copper

Read more less

Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 1180 EN 50173 and ANSI/TIA 568 C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.Cat5e Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningOuter sheath colour OrangeReaction-to-fire class according to EN 13501-6: DcaSmoke development class according to EN 13501-6: s2Key FeaturesConductor surface: BareAWG size: 24Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PELow Smoke CableLow smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.Euroclass Cable!Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.   Brand Excel Reference 011598 In stock 15 Items Data sheet Type Cable Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Orange Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-5E-REELS Ethernet Version Cat5E Copper

Read more less

Excel solid Cat5e ethernet cable U/UTP LSOH CPR Euroclass Dca are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA‐C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.The whole cable is produced in a LSOH sheath which is metre marked and labelled with part code and DoP information.Cat5e Solid Copper CableU/UTP No Overall ScreeningNo Conductor ScreeningOuter sheath colour GreenReaction-to-fire class according to EN 13501-6: DcaSmoke development class according to EN 13501-6: s2Key FeaturesConductor surface: BareAWG size: 24Conductor category: Class 1 = solidTotal number of cores: 8Stranding element: PairsSpecification core insulation: PELow Smoke CableLow smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.Euroclass Cable!Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.   Brand Excel Reference 011605 In stock Data sheet Type Cable Features EuropeanSuitable For CCTVSuitable For POESuitable For VOIP Phones Length 305m Colour Green Country Of Origin China RoHS Compliant Yes SVHC TBA Parent #EXCEL-5E-REELS Ethernet Version Cat5E Copper

Read more less

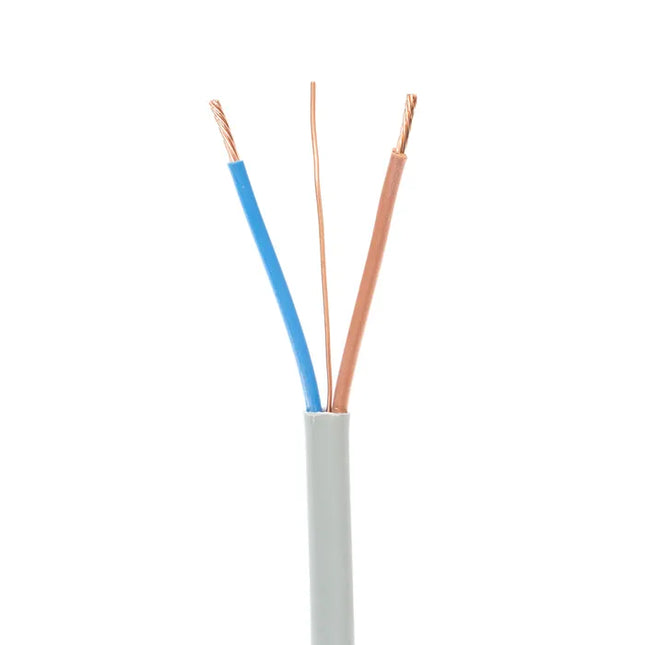

Overview Domestic wiring cable. This cable has a bare protective conductor plus 1, 2 or 3 cores. Used for fixed installations in dry or damp premises clipped direct to the surface, on trays or in free air. Where mechanical protection is required, it can be laid in conduit or trunking. Standards BS6004 Flame propagation: BS EN 50265 BS EN 50363-3 BASEC Approved Construction Conductor:up to 4mm2 - Class 1 Solid Annealed Compacted Circular Copper Conductorfrom 4mm2 - Class 2 Stranded Plain Annealed Compacted Circular Copper Conductor Insulation: PVC Sheath: PVC Sheath Colour: Blue Characteristics Voltage Rating: 300/500 Volts Temperature Rating: -5°C to +70°C Minimum Bending Radius: As Per Manufacturers Datasheet Should not be installed at temperatures below 0°C to +60°C Core IDs 1 Core: Brown 2 Core: Brown, Brown 2 Core: Brown, Blue 3 Core: Brown, Blue, Grey Please note: If you require advice on which cable to use or how and where to install it, it is recommended that you consult a relevant qualified tradesperson.

Read more less
