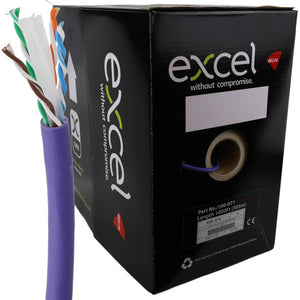

EXCEL COPPER CAT6 NETWORK CABLE U/UTP LOW SMOKE LSOH EUROCLASS DCA 305M VIOLET

Excel solid Cat6 ethernet cable U/UTP LSOH CPR Euroclass Dca manufactured and tested to the TIA/EIA 568‐B.2? EN50173? and ISO/ IEC 11801 Cat 6 specifications 305m or 500m. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs.

These are then formed around a central X-shaped polyethylene centre with the whole cable produced in a LSOH sheath.

Cat6 Solid Copper Cable
U/UTP No Overall Screening
No Conductor Screening
Reaction-to-fire class according to EN 13501-6: Dca
Smoke development class according to EN 13501-6: s2


Key Features
Conductor surface: Bare
AWG size: 23
Conductor category: Class 1 = solid

Total number of cores: 8
Stranding element: Pairs
Specification core insulation: PE


Low Smoke Cable
Low smoke zero halogen or low smoke-free of halogen is a material classification typically used for cable jacketing in the wire and cable industry.

Euroclass Cable!
Euroclass Dca copper network cables is manufactured to meet the Construction Projects Regulation (CPR) . Dca copper network cables can safely be installed in buildings that have moderate building fire safety requirements in some regions this class is used for general installs.
