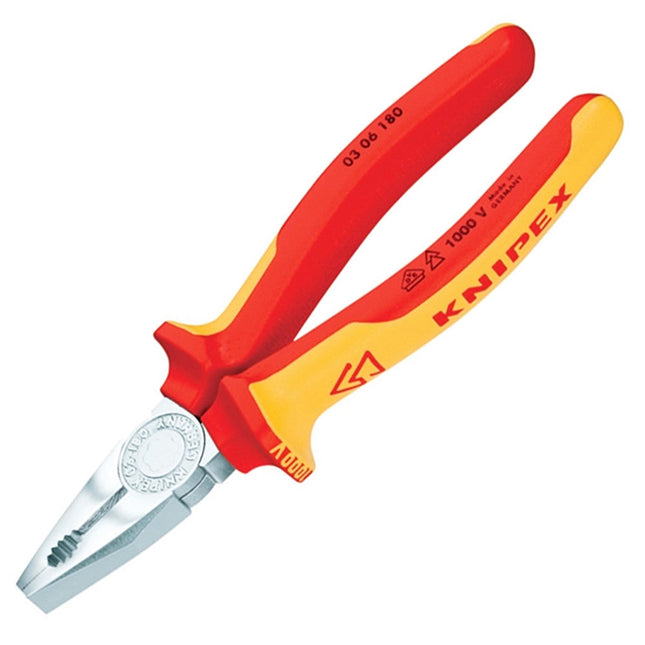

Knipex Combination Pliers 180mm VDE Grips KPX0306180 Features: The Knipex 03 06 traditional range of combination pliers are made from a top quality special tool steel, forged and oil-hardened to approximately 60 HRC for added strength and durability and come in three sizes - 6.1/4 inch, 7 inch and 8-inch.The cutting edges are ideal for hard and soft wire.They are oil hardened and tempered, and then separately induction-hardened.These Knipex 03 06 combination pliers have chrome-plated heads for smooth operation and handles with heavy-duty insulation for a softer and more positive grip.These Knipex pliers have been VDE tested up to 1,000v, have gripping zones on the head jaws for flat and round material and are suitable for versatile use on almost any job application. Product Specification: Barcode: 4003773010661Part Number: KPX0306180Size: 180mm (7 in)Cutting capacity Medium hard wire: 3,4 Ø mmCutting capacity Hard wire: 2,2 Ø mmCopper cable, multiple-stranded (diameter): 12 Ø mmCopper cable, multiple-stranded: 16 mm² **images for illustrative purposes only – please refer to description and specification for full details of product**

Read more less

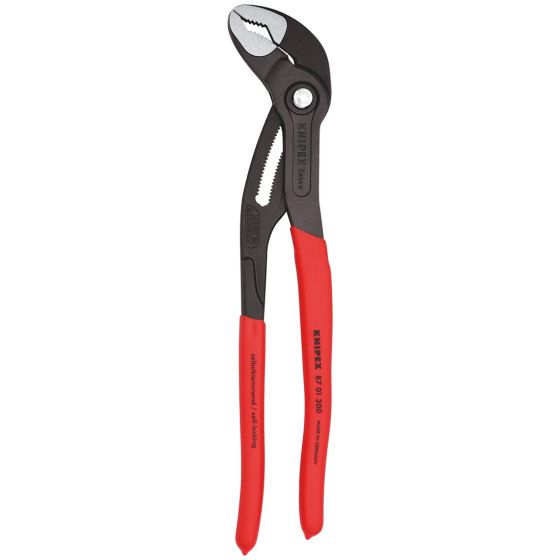

WHAT'S IN THE BOX 1x 87 01 300 Cobra High-Tech Water Pump Pliers 300mm   NOTES FROM MT EXPERT  The benefits of working with these water pump pliers are plain to see: they can be positioned on the component quickly and are self-locking, e.g. on pipes and nuts   OVERVIEW KNIPEX 87 01 300 COBRA HIGH-TECH WATER PUMP PLIERS 300MM The KNIPEX 87 01 300 Cobra with a length of 300 mm is one of the bigger models of water pump pliers from the Knipex Cobra range. With good torque and a grip width of up to 70 mm, they are particularly good for professional users for whom the capacity of the classic 250 mm long Cobra is not sufficient. The benefits of working with these water pump pliers are plain to see: they can be positioned on the component quickly and are self-locking, e.g. on pipes and nuts. With its plastic-coated handles, the Knipex Cobra 87 01 300 sits firmly in the hand. It is ideal for use on pipes up to a diameter of 2 3/4 inches or 70 mm and for nuts with a wrench opening of up to 60 mm. For pipes, nuts, sleeves, for various kinds of components: the professional user applies the Knipex Cobra quickly and accurately with just one hand movement. The spring-loaded hinge bolt locks securely into place without adjusting inadvertently. Thanks to the 30-fold fine adjustment, the Knipex Cobra 87 01 300 can be ideally adjusted to different sizes of the component. This fine adjustment also ensures that the user is able to find a hand-friendly gripping position for every grip width. The Knipex Cobra clamps onto the component securely by itself thanks to the jaw geometry developed by Knipex. This means the user can put all energy into the desired movement without pressing the pliers handle together – and thus without energy loss: round components can be turned, bolted connections tightened and released.   FEATURES Push the button for adjustment on the workpiece Fine adjustment for optimum adaptation to different sizes of workpieces and a comfortable handle width Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping Box-joint design for high stability due to double guide Reliable catching of the hinge bolt: no unintentional shifting Pinch guard prevents operators' fingers being pinched Chrome vanadium electric steel, forged, multi stage oil-hardened SPECIFICATION Article Number: 87 01 300 EAN: 4003773034087 Pliers: Grey atramentized Head: Polished Handles: With non-slip plastic coating Weight: 530 g Dimensions: 300 x 52 x 15 mm Standard: DIN ISO 8976 REACH Compliant: Does not contain SVHC RoHS Compliant: Not applicable Adjustment Positions: 30 Capacities For Nuts: 60 mm Capacities For Pipes (diameter): Ø 70 mm

Read more less

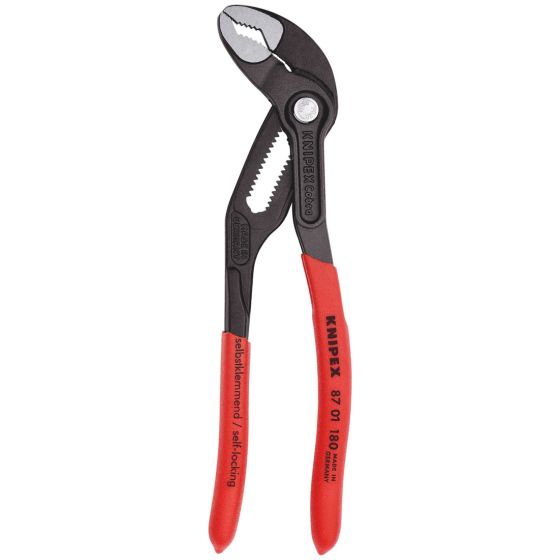

WHAT'S IN THE BOX 1x 87 01 180 Cobra High-Tech Water Pump Pliers 180mm   NOTES FROM MT EXPERT For pipes, nuts, sleeves, for various kinds of components   OVERVIEW KNIPEX 87 01 180 COBRA HIGH-TECH WATER PUMP PLIERS 180MM The KNIPEX 87 01 180 Cobra with a length of 180 mm is one of the medium-sized models of Cobra water pump pliers from Knipex. The benefits of working with these water pump pliers are plain to see. They are compact, light and stable, can be positioned on the component quickly and are self-locking, e.g. on pipes and nuts. Due to its compact size, it is particularly suitable for work in confined spaces. Despite this, it achieves a gripping capacity for pipes with a diameter of up to 1 1/2 inches or 42 mm and for nuts up to a wrench opening of 36 mm. For pipes, nuts, sleeves, for various kinds of components: the professional user applies the Knipex Cobra quickly and accurately with just one hand movement. The spring-loaded hinge bolt locks securely into place without adjusting inadvertently. Thanks to the 18-fold fine adjustment, the Knipex Cobra 87 01 180 can be ideally adjusted to different sizes of the component. This fine adjustment also ensures that the user is able to find a hand-friendly gripping position for every grip width. The Knipex Cobra is further stabilised by the box joint design. Unlike pliers with mounted joints, no tilting forces arise when under strain. The handles stabilise each other in the joint.   FEATURES Push the button for adjustment on the workpiece Fine adjustment for optimum adaptation to different sizes of workpieces and a comfortable handle width Self-locking on pipes and nuts: no slipping on the workpiece and low handforce required Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping Box-joint design for high stability due to double guide Reliable catching of the hinge bolt: no unintentional shifting Pinch guard prevents operators' fingers being pinched Chrome vanadium electric steel, forged, multi stage oil-hardened SPECIFICATION Article Number: 87 01 180 EAN: 4003773022015 Pliers: Grey atramentized Head: Polished Handles: With non-slip plastic coating Weight: 170 g Dimensions: 180 x 42 x 14 mm Standard: DIN ISO 8976 REACH Compliant: Does not contain SVHC RoHS Compliant: Not applicable Adjustment Positions: 18 Capacities For Nuts: 36 mm Capacities For Pipes (diameter): Ø 42 mm

Read more less

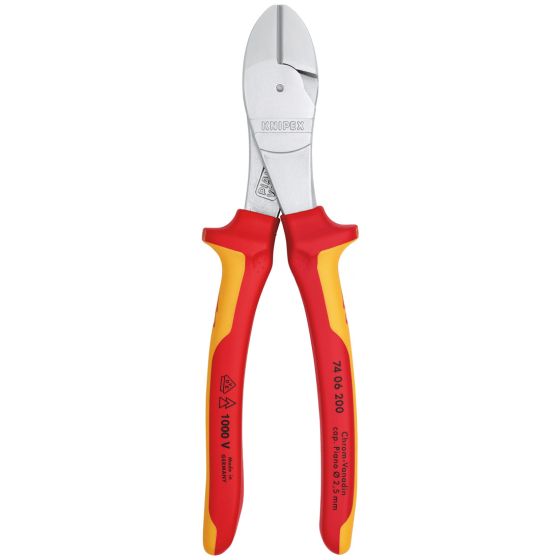

WHAT'S IN THE BOX 1x 74 06 200 VDE High Leverage Diagonal Cutters 200mm   NOTES FROM MT EXPERT The chrome plating contributes to the durability of the high leverage diagonal cutters, because it acts as an effective rust protection and makes them easier to clean   OVERVIEW KNIPEX 74 06 200 INSULATED VDE HIGH LEVERAGE DIAGONAL CUTTERS 200MM Thanks to their high cutting capacity and indestructible strength, the KNIPEX 74 06 200 high leverage diagonal cutters are highly valued especially by craftsmen, predominantly in the electrical trade. They are also often used in the motor trade, on the building site and in industry. They are also ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly. The chrome plating contributes to the durability of the high leverage diagonal cutters, because it acts as an effective rust protection and makes them easier to clean. Compared to conventional diagonal cutters of the same size, the Knipex 74 06 200 offers a much better ratio between the force required and cutting capacity. The geometry of the cutting edges, joint and the handles has been designed for efficiency. This tool is also the first choice for hard constant use, e.g. during assembly work, because its ergonomic design really conserves the strength of the user. Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The insulating multi-component grips ensure added comfort. These high leverage diagonal cutters are extremely stable due to their robust design with forged joint axle, yet the Knipex 74 06 200 is quite light, weighing just 308 g.   FEATURES For very tough, continuous use High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened SPECIFICATION Article Number: 74 06 200 EAN: 4003773033820 Pliers: Chrome-plated Head: Chrome-plated Handles: Insulated with multi-component grips, VDE-tested Weight: 304 g Dimensions: 200 x 56 x 26 mm Standard: DIN ISO 5749 DIN EN 60900 IEC 60900 REACH Compliant: Does not contain SVHC RoHS Compliant: Not applicable Cutting Capacities: Medium Hard Wire (diameter): Ø 4.2 mm / Hard Wire (diameter): Ø 3.0 mm / Piano wire (diameter): Ø 2.5 mm VDE Tested: Yes

Read more less

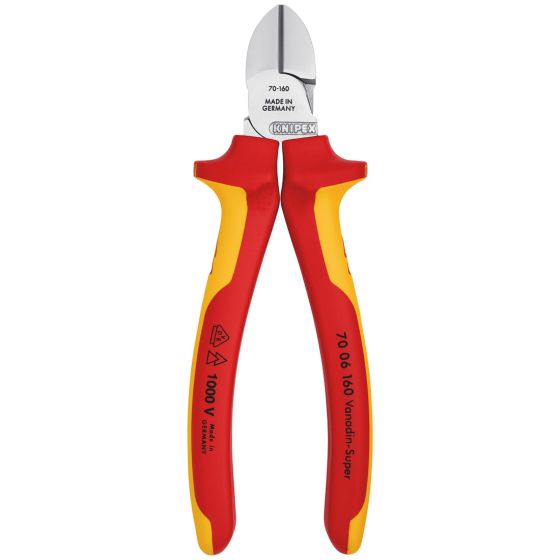

WHAT'S IN THE BOX 1x 70 06 160 Diagonal Cutters 160mm   NOTES FROM MT EXPERT From the shape of the head through to the polish and hardness of the cutting edges, it is customised for the diverse cutting tasks in the day-to-day work of electricians, mechatronics engineers and electronics engineers   OVERVIEW KNIPEX 70 06 160 INSULATED VDE DIAGONAL CUTTERS 160MM Long appreciated by many craftsmen – the insulated KNIPEX 70 06 160 diagonal cutters with a length of 160 mm are a classic in the Knipex range. From the shape of the head through to the polish and hardness of the cutting edges, it is customised for the diverse cutting tasks in the day-to-day work of electricians, mechatronics engineers and electronics engineers. The Knipex 70 06 160 diagonal cutters are insulated using multi-component grips in accordance with the insulation standard IEC 60900 / DIN EN 60900. With their cutting capacities of up to Ø 2.0 mm on hard wire (e.g. wire rope fibre) and up to Ø 4.0 mm on soft wire (e.g. copper wire), the Knipex 70 06 160 diagonal cutters offer a broad range of applications. The long cutting edges make them ideal for cutting cable. The extremely carefully and precisely machined cutting edges enable even very fine stranded wire to be cut accurately – up to the tips of the cutting edges. This is a great advantage where space is restricted, for example when shortening fine stranded wires in junction boxes and distribution boxes.   FEATURES With elongated cutting edge The indispensable diagonal cutter for all-round use High-quality material and precise workmanship for long service life Precision cutting edges for soft and hard wire Clean cutting of thin copper wires, also at the cutting edge tips Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC Narrow head style for use in confined areas VDE-tested safety up to 1000 volts With bevel Vanadium electric steel, forged, multi stage oil-hardened SPECIFICATION Article Number: 70 06 160 EAN: 4003773021995 Pliers: Chrome-plated Head: Chrome-plated Handles: Insulated with multi-component grips, VDE-tested Weight: 216 g Dimensions: 160 x 55 x 20 mm Standard: DIN ISO 5749 DIN EN 60900 IEC 60900 REACH Compliant: Does not contain SVHC RoHS Compliant: Not applicable Cutting Capacities: Medium Hard Wire (diameter): Ø 4.0 mm / Hard Wire (diameter): Ø 3.0 mm / Piano wire (diameter): Ø 2.0 mm VDE Tested: Yes

Read more less

WHAT'S IN THE BOX 1x 03 06 180 VDE Combination Pliers 180mm   NOTES FROM MT EXPERT With cutting edges for soft and hard wire & long cutting edges for thicker cables   OVERVIEW KNIPEX 03 06 180 INSULATED VDE COMBINATION PLIERS 180MM The KNIPEX 03 06 180 Combination Pliers features gripping zones for flat and round material and are suitable for versatile use.  Insulated with multi-component grips, VDE-tested. FEATURES With gripping zones for flat and round material, suitable for versatile use With cutting edges for soft and hard wire Long cutting edges for thicker cables Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC Special tool steel, forged, multi stage oil-hardened SPECIFICATION Article Number: 03 06 180 EAN: 4003773021926 Pliers: Chrome-plated Head: Chrome-plated Handles: Insulated with multi-component grips, VDE-tested Weight: 264 g Dimensions: 180 x 55 x 20 mm Standard: DIN ISO 5746 DIN EN 60900 IEC 60900 REACH Compliant: Does not contain SVHC Cutting Capacities: Medium Hard Wire (diameter): Ø 3.4 mm / Hard Wire (diameter): Ø 2.2 mm

Read more less

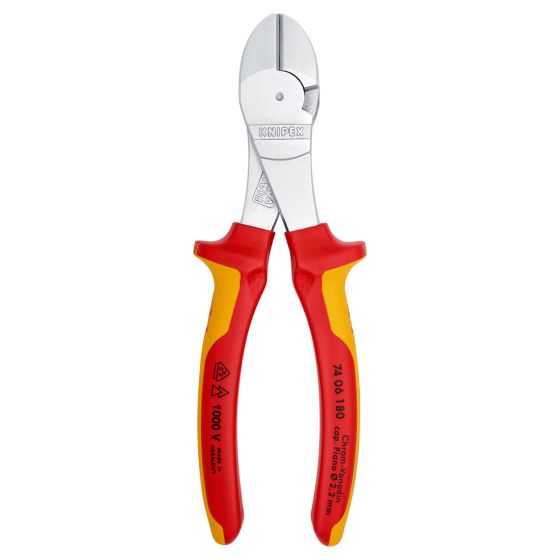

WHAT'S IN THE BOX 1x 74 06 180 180mm Diagonal Cutters   NOTES FROM MT EXPERT  Ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly   OVERVIEW KNIPEX 74 06 180 INSULATED VDE HIGH LEVERAGE DIAGONAL CUTTERS 180MM KNIPEX 74 06 180 diagonal cutters are for very tough and continuous use. Thanks to their high cutting capacity and indestructible strength, the Knipex 74 06 180 high leverage diagonal cutters are highly valued especially by craftsmen, and therefore in great demand. In the insulated model, they are often used in the electrical trade, e.g. for electrical installation on the building site, in industry or for repair work. They are also ideal as constant companion in mobile applications, because despite their compact size, they are still able to cut hard materials effortlessly. At just 180 mm long, the Knipex 74 06 180 fits in most work bags and in almost any tool case. The chrome plating of the high leverage diagonal cutters also contributes to their durability. The chrome plating is a good protection against rust when using the tool outside or if it is kept permanently in the service vehicle (condensation caused by temperature changes). Compared to conventional diagonal cutters of the same size, the Knipex 74 06 180 offers a much better ratio between the force required and cutting capacity. The geometry of the cutting edges, joint and the handles has been designed for efficiency. This tool is also the first choice for hard constant use, e.g. assembly work or electrical installation, because its ergonomic design makes work much easier for the user. Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The insulating multi-component grips ensure added comfort. These high leverage diagonal cutters are extremely stable due to their robust design with forged joint axle, yet quite light, weighing just 280 g.   FEATURES For very tough, continuous use High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire Chrome vanadium heavy-duty steel, forged, multi stage oil-hardened SPECIFICATION Article Number: 74 06 180 EAN: 4003773022985 Pliers: Chrome-plated Head: Chrome-plated Handles: Insulated with multi-component grips, VDE-tested Weight: 280 g Dimensions: 180 x 57 x 26 mm Standard: DIN ISO 5749 DIN EN 60900 IEC 60900 REACH Compliant: Does not contain SVHC RoHS Compliant: Not applicable Cutting Capacities: Medium Hard Wire (diameter): Ø 3.8 mm / Hard Wire (diameter): Ø 2.7 mm / Piano wire (diameter): Ø 2.2 mm VDE Tested: Yes
