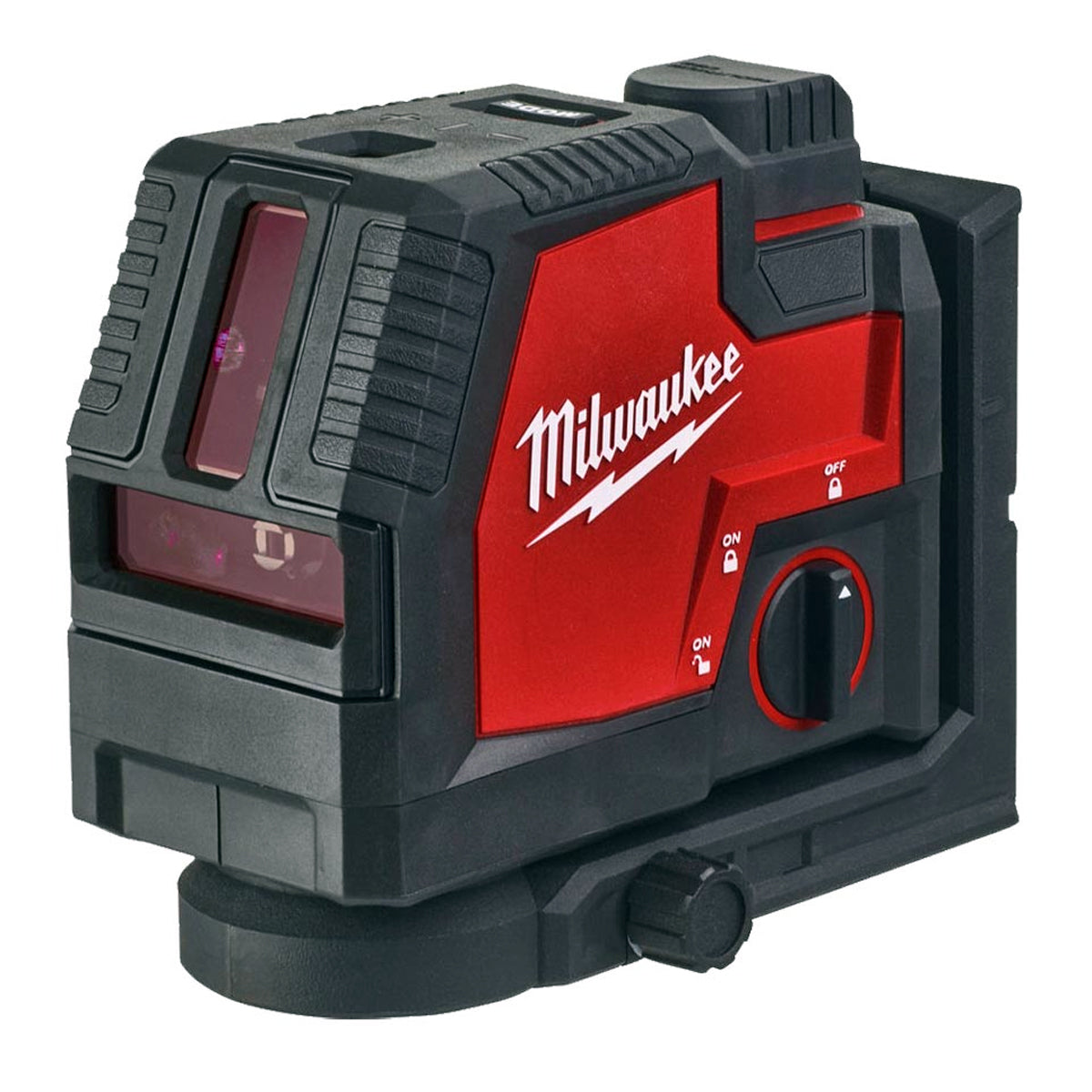

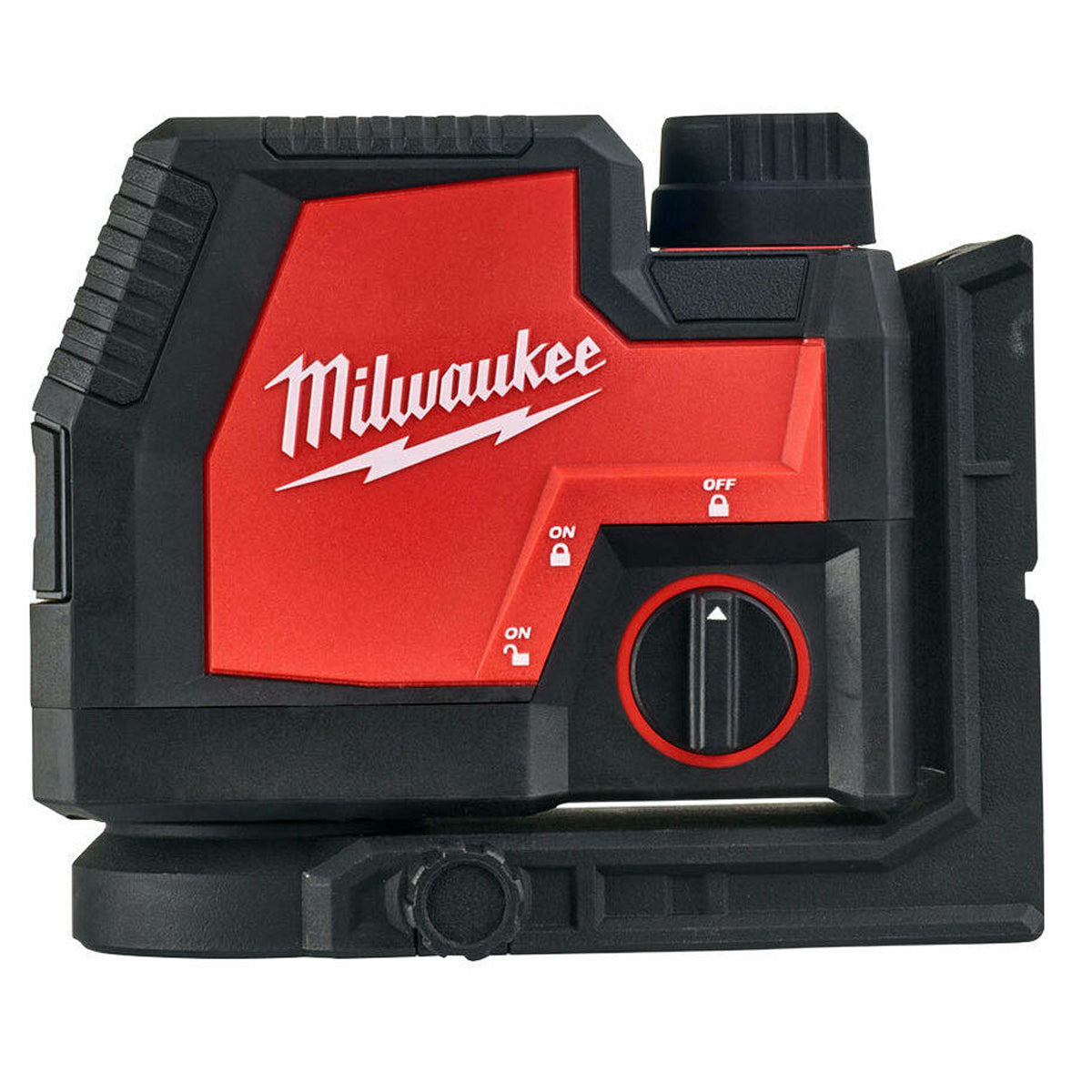

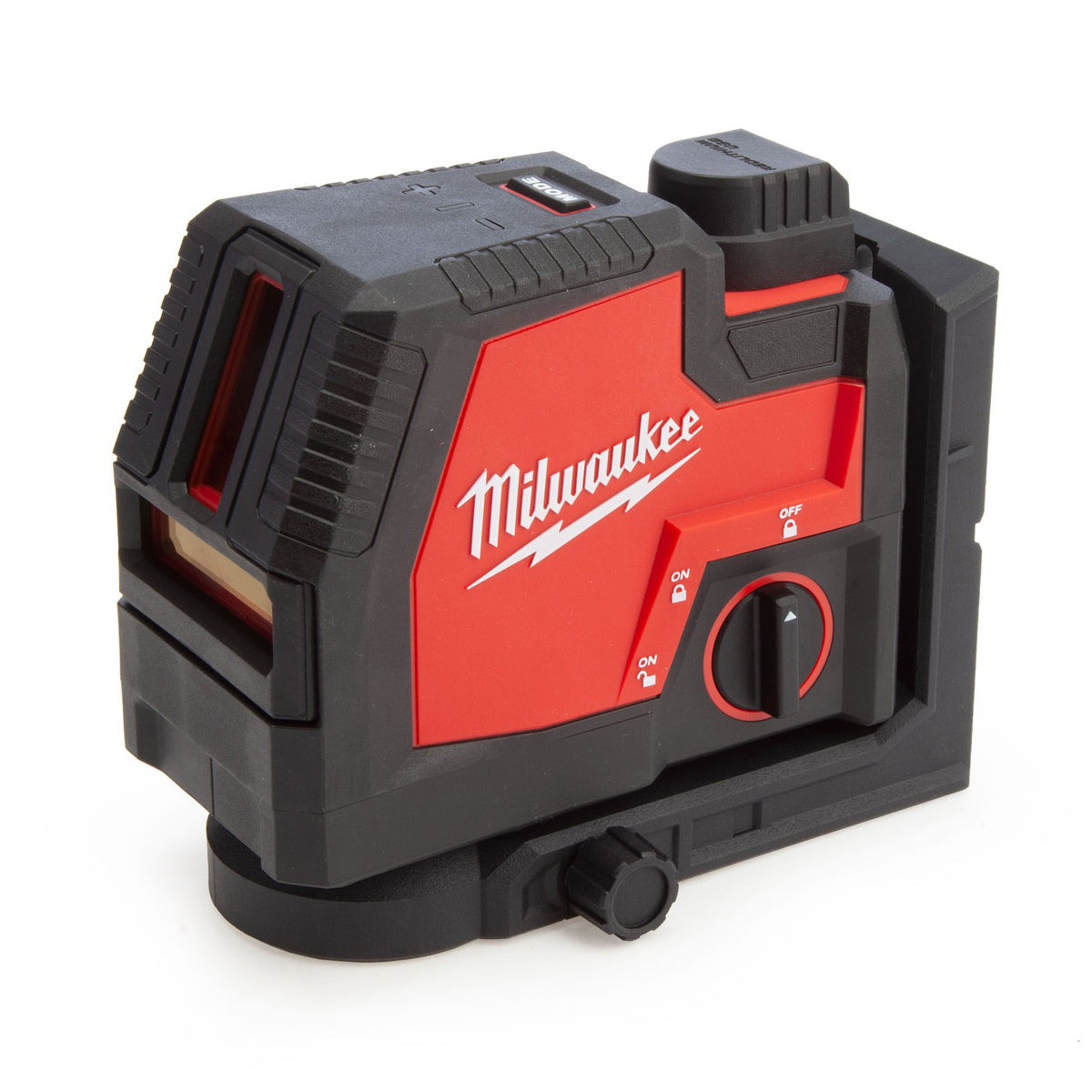

Milwaukee L4CLLP-301C Green Cross Line Laser with Plumb Points 4933478244
This L4 CLLP-301C Green Cross Line Laser With Plumb Points is part of Milwaukee's 4V REDLITHIUM USB range of tools. Rechargeable via USB cable, this laser provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling.
Features:
Milwaukee Cross Line Laser:
REDLITHIUM USB rechargeable green cross line laser with plumb points provides an all-in-one functionality with horizontal levelling, vertical alignment and plumb point transfer from floor to ceiling.
Built with high intensity green diodes to provide uncompromised visibility - up to 4x better visibility vs red lasers.
High intensity green beams provide a working range of 30 m and up to 100 m with a detector.
The rechargeable and removable REDLITHIUM USB 3.0 Ah battery provides all day run time of over 8 hours.
1x REDLITHIUM USB 3.0 battery replaces up to 6,000 alkaline batteries over the lifetime of the battery.
3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport.
Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼ inch tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod.
The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment.

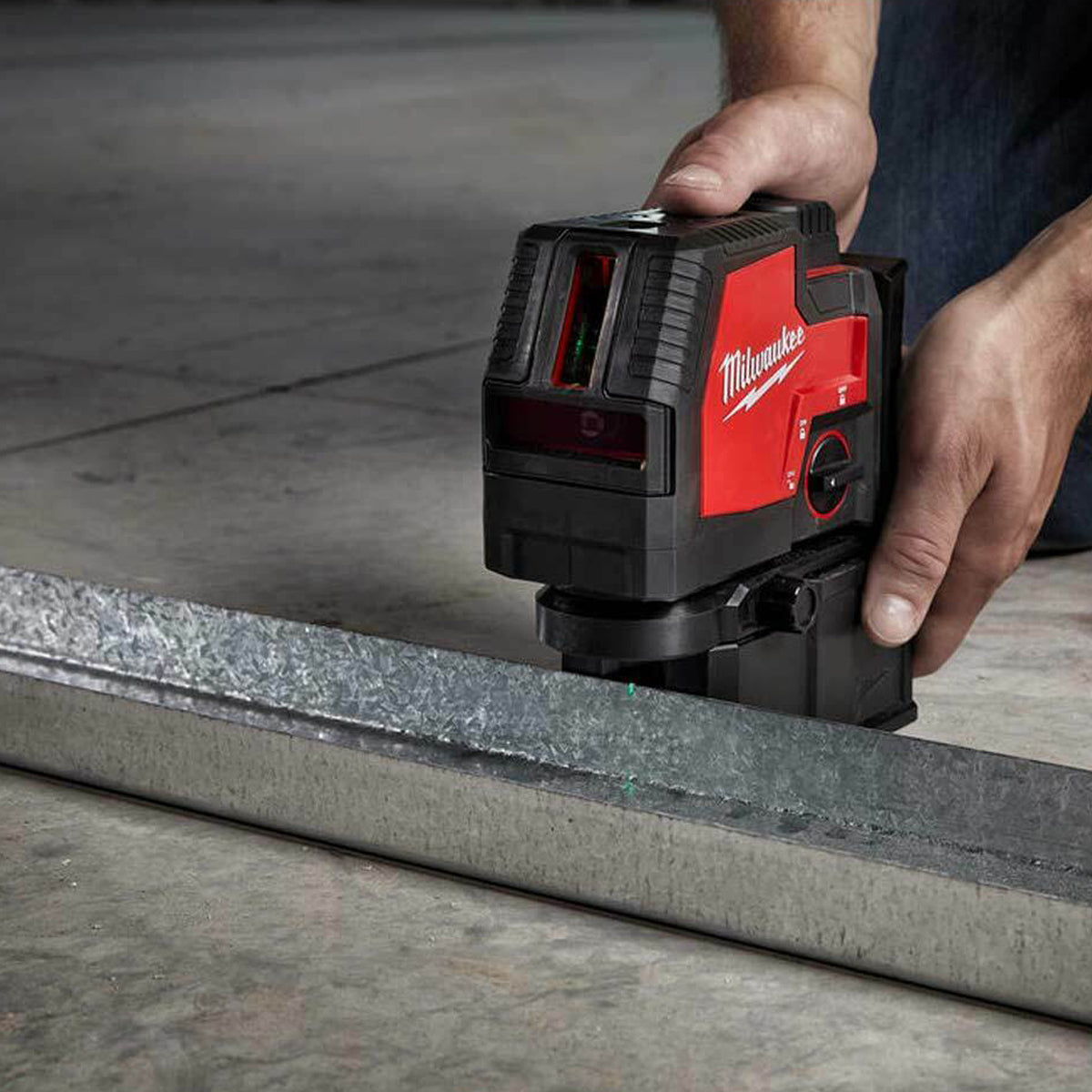

Detachable riser included for seeing the plumb point when placed on the ground or over steel track.
Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops.
Conveniently charge REDLITHIUM USB battery internally during use with micro-USB cable from USB power source or AC outlet.
Fuel gauge on the top and side of the laser allows for fast checking of the REDLITHIUM™ USB battery charge.

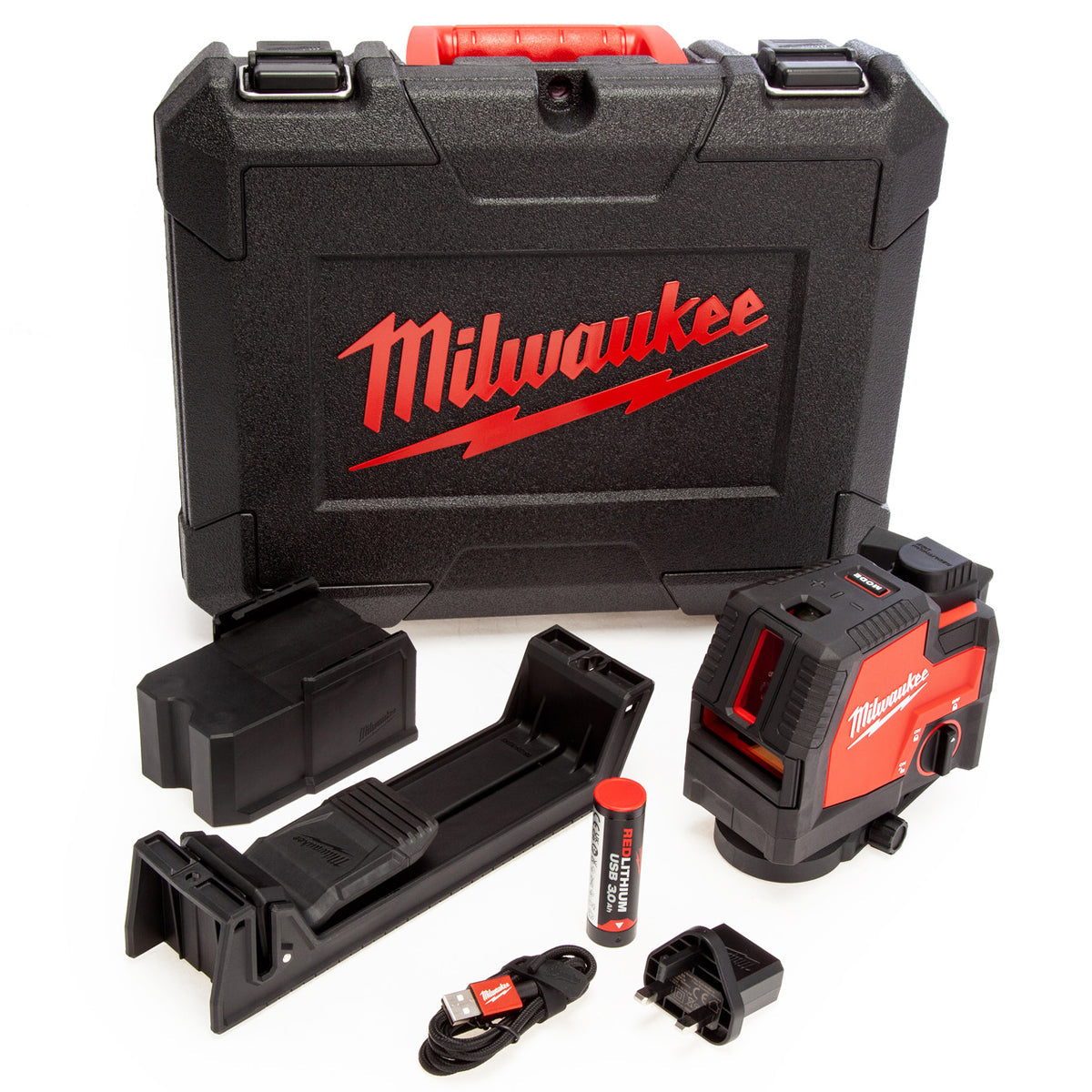

Includes 1x detachable riser and 1x track clip.

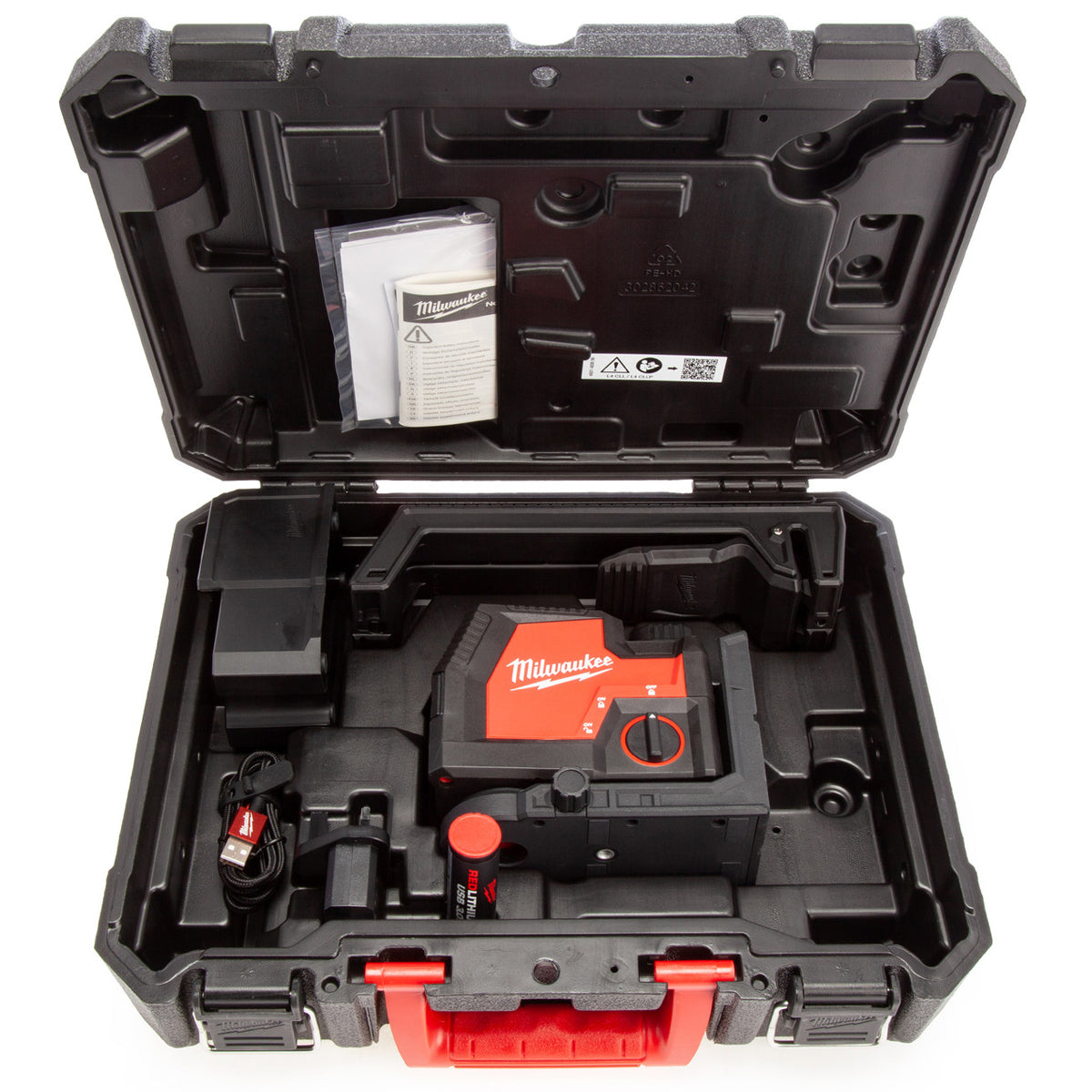

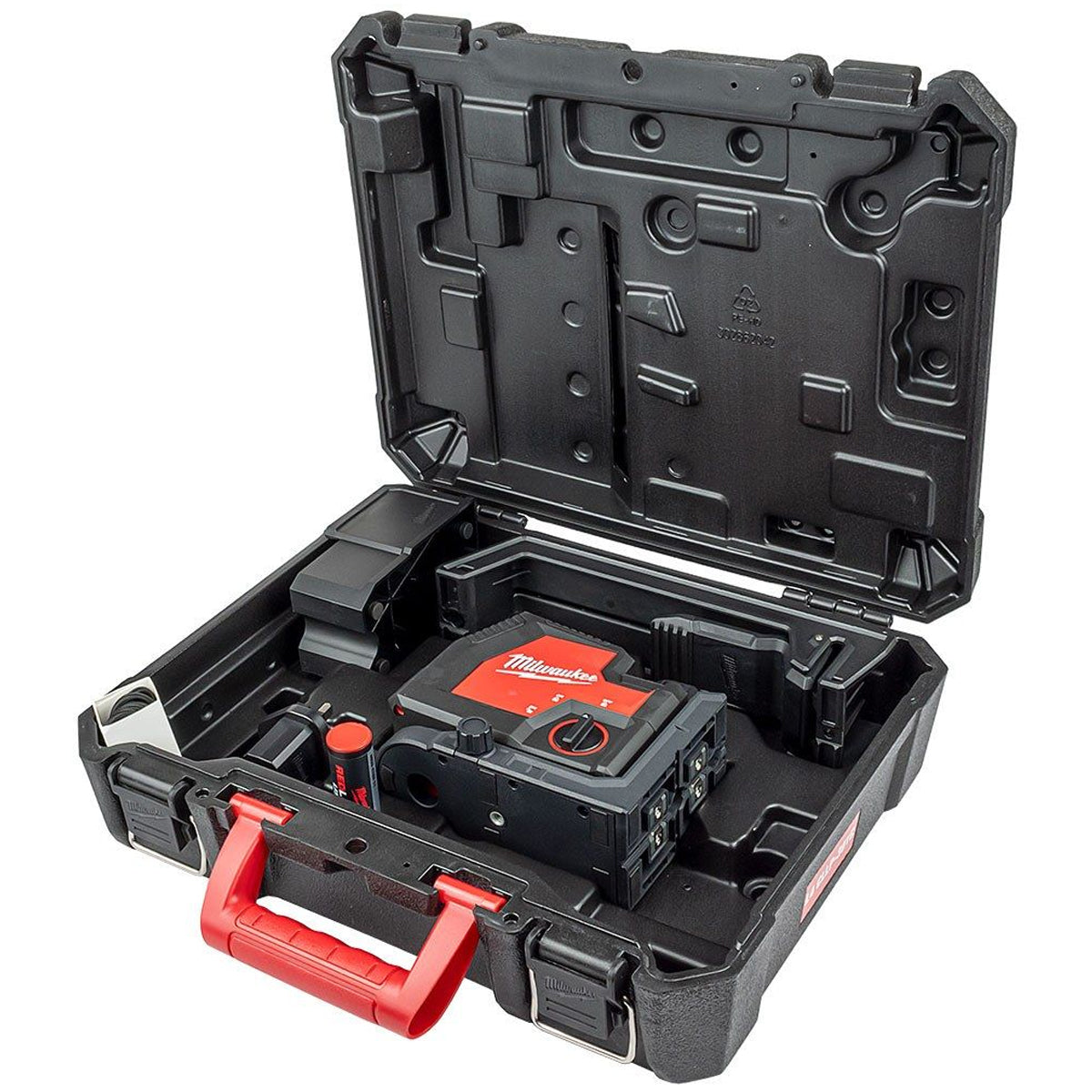

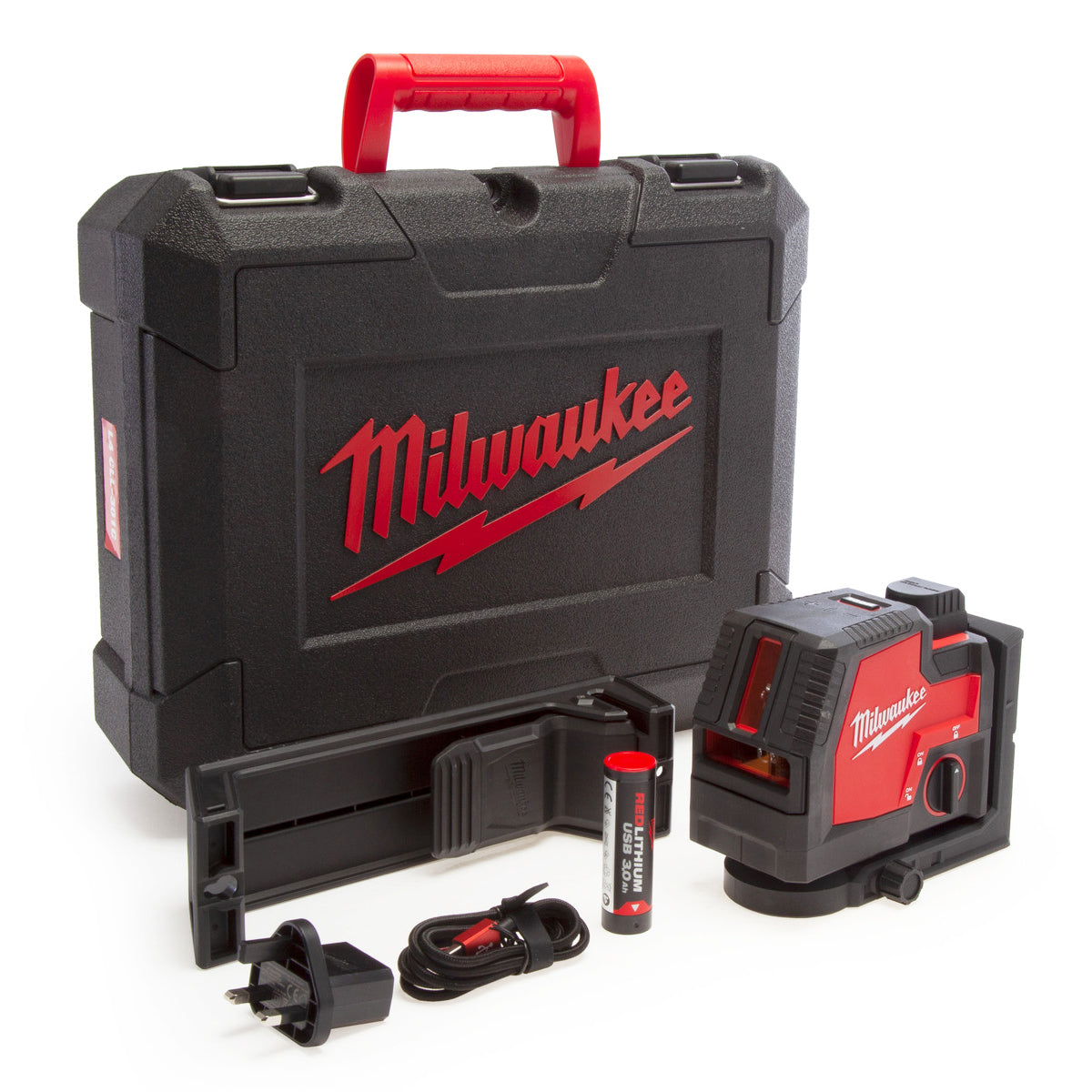

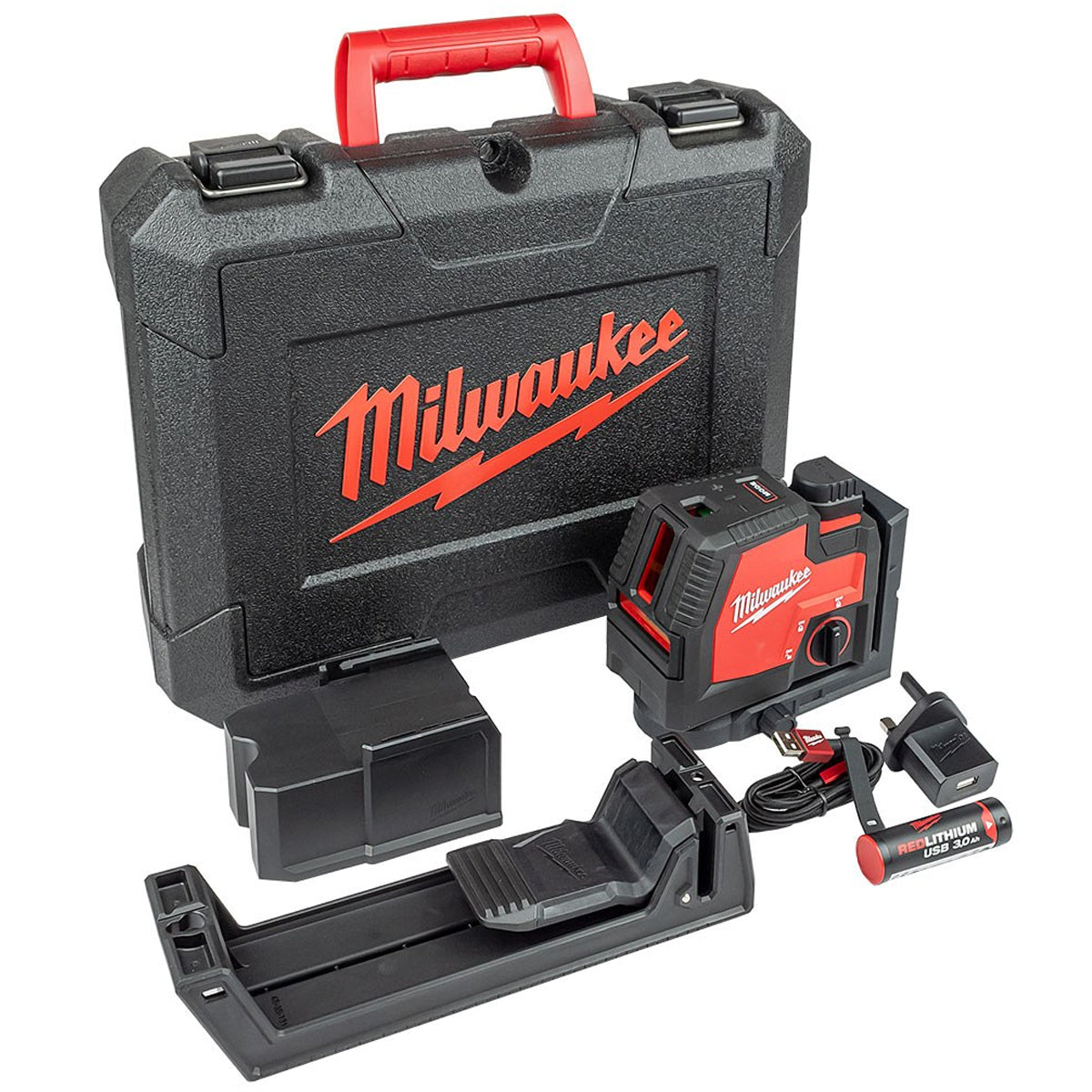

Comes with:
1 x L4 B3 Battery pack
1 x USB cable
1 x wall plug
1 x Kitbox
Product Specification:
Milwaukee Cross Line Laser:
Part No: 4933478244
Barcode: 4058546344214
Accuracy: 0.3 mm/m
Colour Of Laser Line: Green
Colour Of Plumb Points: Green
Compatible Laser Detector: LLD50
Laser Classification: Class 2
Laser Projection: 1 x horizontal, 1 x vertical, 2 x plump points
Max. Run Time With L4 B3 Battery: 8 h
Self Leveling Range: 4.0°
Self Leveling Time: 3 S
Standard Equipment: Track clip
Working Range Detector: 50/100 M
Working Range Visible: 30.0 M
Battery Type: Li-ion
Charger included: USB cable and wall plug
No. Of Batteries Supplied: 1
Voltage: 4V
Weight With Battery Pack (EPTA): 0.90 (L4 B3) KG
