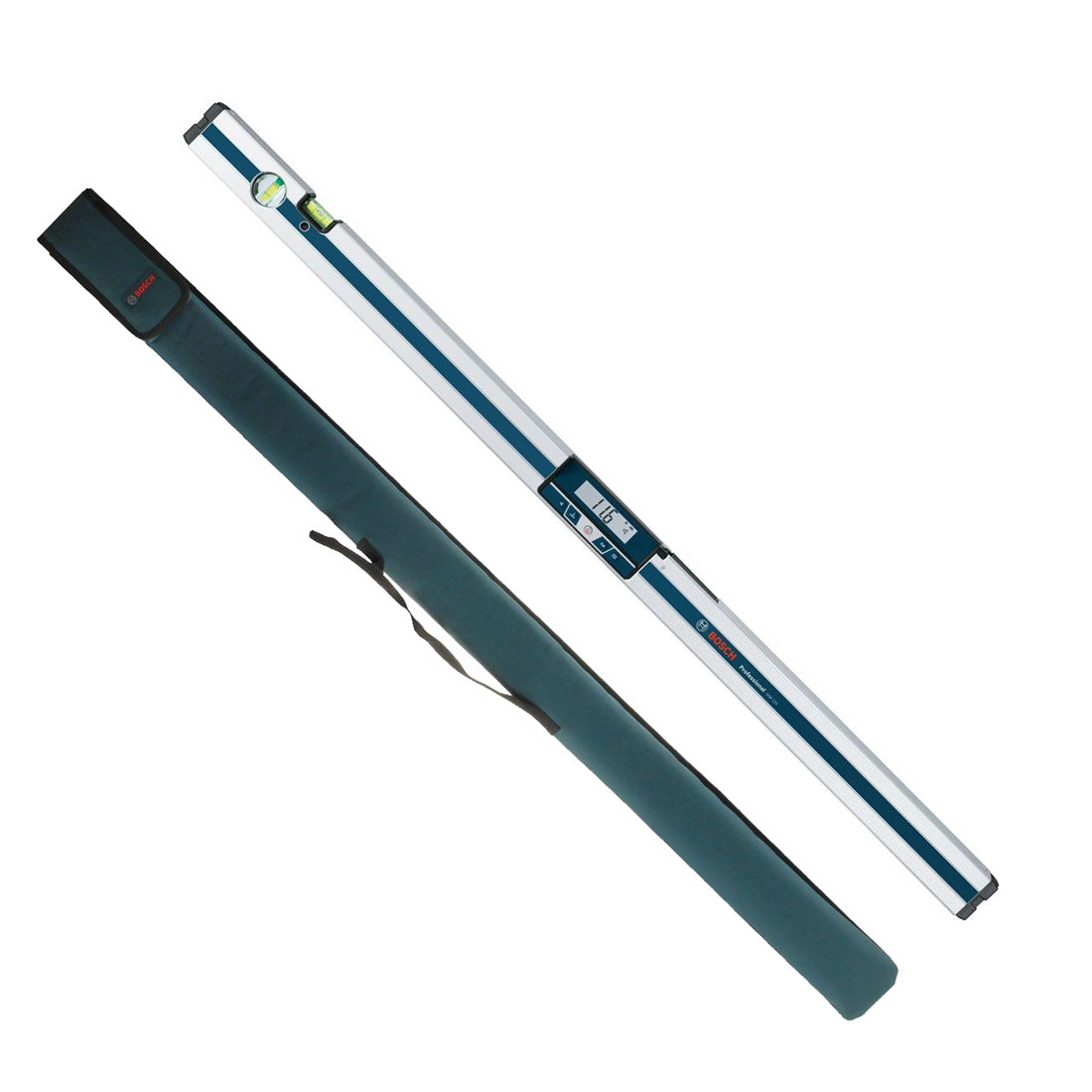

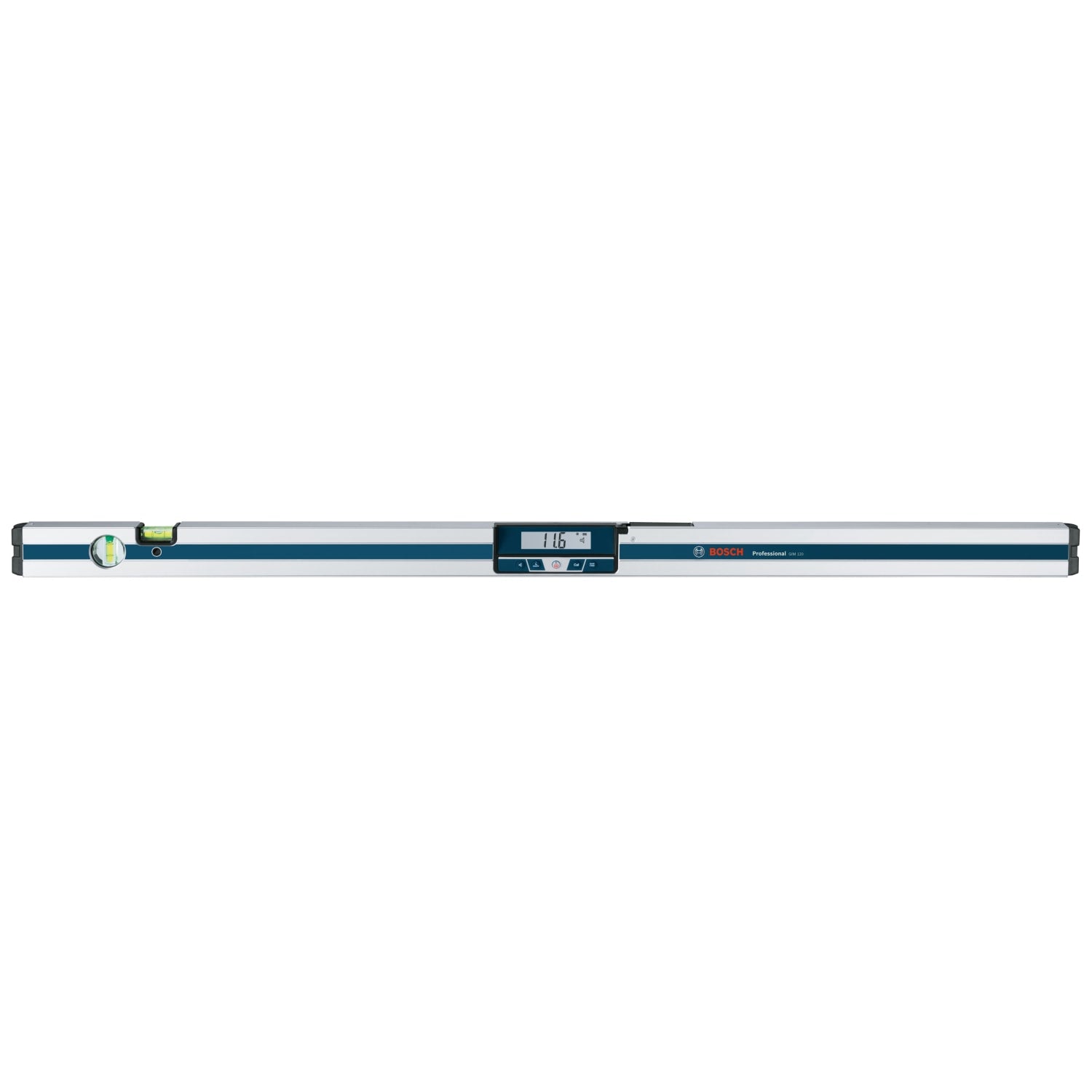

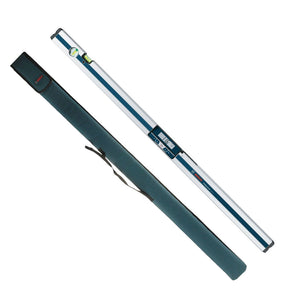

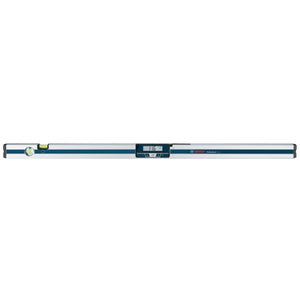

BOSCH PROFESSIONAL GIM 120 DIGITAL INCLINOMETER SPIRIT LEVEL MEASURING TOOL

BOSCH GIM 120 PROFESSIONAL DIGITAL INCLINOMETER SPIRIT LEVEL

LONGER LENGTH FOR MAXIMUM PRECISION

FEATURES

• Measures precise tilts in degrees, percent or millimetres/metres
• Direction arrows and audible signals at 0° and 90° for easy alignment
• Easy calibration function for sustained accuracy
• Slanted, easy-to-read display
• Two vials enable use as a spirit level
• Measured values automatically turn on the display when working overhead
• Audible signal at 0° and 90°
• Robust aluminium housing
• Comes complete with a protective bag for easy transportation and safe storage
• IP54 protection

SPECIFICATION

• Length: 120 cm
• Measurement range: 0 – 360° (4 x 90°)
• Electronics measurement accuracy 0°/90°: ± 0.05°
• Electronics measuring accuracy at 1– 89°: ± 0.2°
• Measurement accuracy, vials: ± 0.057° = ± 1 mm/m
• Operating duration, inclination measurement, approx.: 200 h
• Weight, approx.: 1.3 kg
• Length: 1250 mm
• Width: 27 mm
• Height: 59 mm
• Units of measurement: °, %, mm/m
• Tripod thread: 1/4"
