BRITISH GENERAL 13A UNSWITCHED METAL CLAD PASSIVE FUSED SPUR & FLEX OUTLET WITH WHITE INSERTS

SKU: 12096-BRI

Credit Plans Available. Find out more

Clearpay_TD_Image

Klarna_TD_Image

V12_TD_Image

Description

WHAT'S IN THE BOX 1x BRITISH GENERAL 13A UNSWITCHED METAL CLAD PASSIVE FUSED SPUR & FLEX OUTLET WITH WHITE INSERTS (4323P) NOTES FROM MT EXPERT Colour-Coded Terminals with Captive Screws OVERVIEW BRITISH GENERAL 13A UNSWITCHED METAL CLAD PASSIVE FUSED SPUR...

See Full Description

stars-5

5.0 (120 Reviews)

£10.77

£14.99

inc VAT

Qty:

In stock

Order within [hour], for earliest possible delivery on [date_start]

You might also like

Description

WHAT'S IN THE BOX

1x BRITISH GENERAL 13A UNSWITCHED METAL CLAD PASSIVE FUSED SPUR & FLEX OUTLET WITH WHITE INSERTS (4323P)

NOTES FROM MT EXPERT

Colour-Coded Terminals with Captive Screws

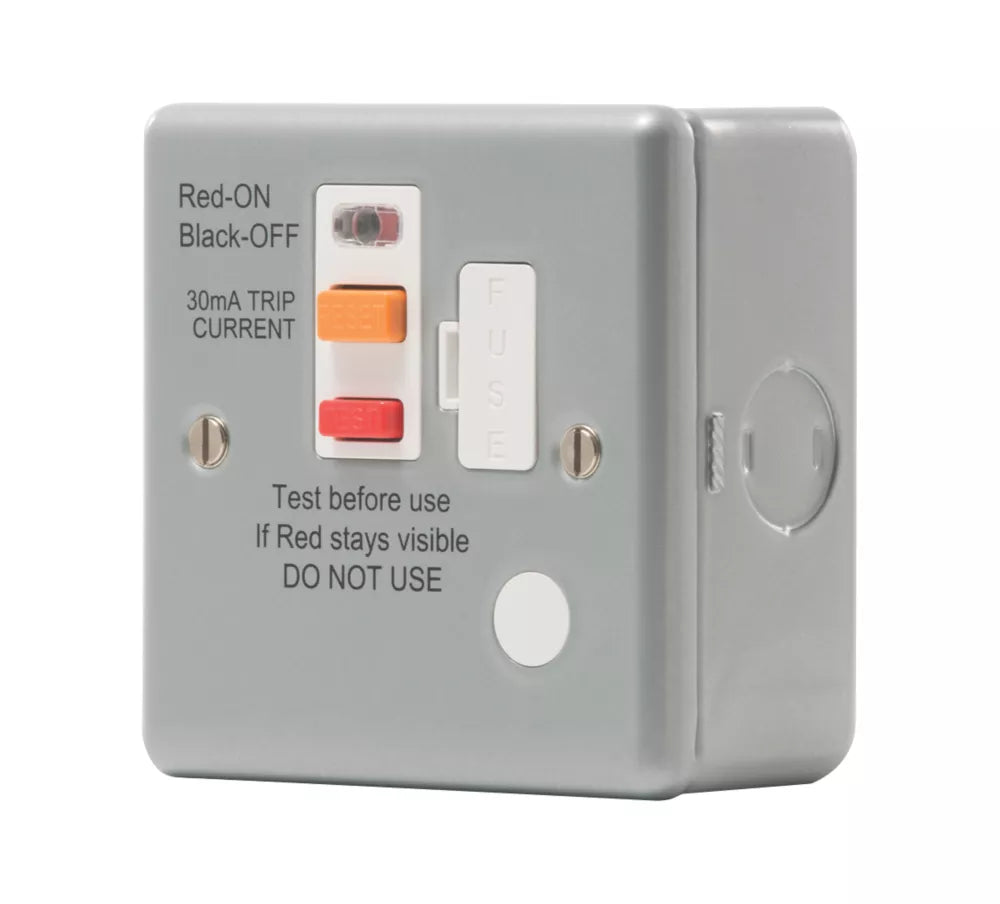

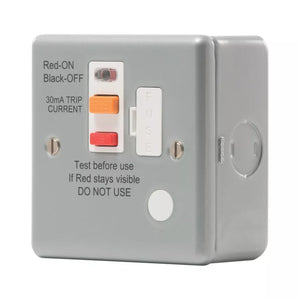

BRITISH GENERAL 13A UNSWITCHED METAL CLAD PASSIVE FUSED SPUR & FLEX OUTLET WITH WHITE INSERTS (4323P)

13A max. load. Trips at 30mA. Passive operation. Heavy duty, metal-clad moulded safety RCD protected fused connection unit that protects against the risk of a fatal shock. Latched with no need to reset after a loss of power.

Raised Rounded Profile
Screwed Faceplate
Colour-Coded Terminals with Captive Screws

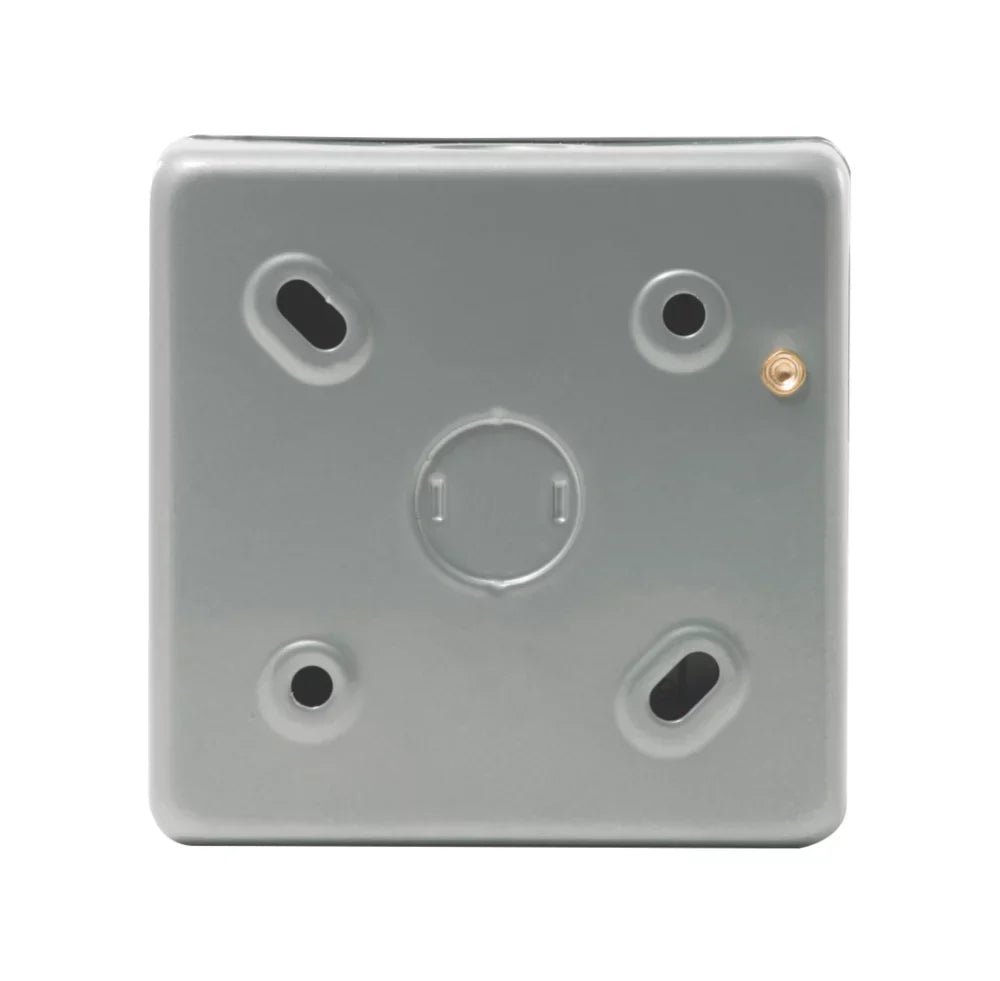

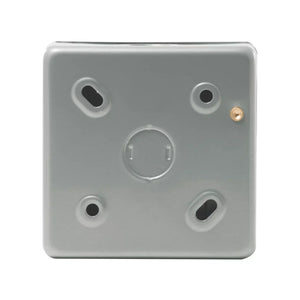

Side & Base Knockouts
No Coating
Heavy Duty Metal-Clad
Cable Outlet Option
IK02

SPECIFICATION
Active or Passive	Passive
Amp Rating	13 A
Brand	British General
Fixings Supplied	Fittings Not Supplied
Insert Colour	White
Knockout Position	Side & Base Knockouts
Knockout Size	20 mm
Manufacturer Guarantee	1 Year Guarantee
Model No	MC554RCD
No. of Earth Terminals	2
No. of Knockouts	5
Number of Gangs	1 Gang
Number of Poles	Single Pole
Pack Size	1
Parent Colour	Grey
Pieces in Pack/Case	1
Power Voltage Supply	240 V
Product Depth	40 mm
Product Type	RCD Fused Connection Unit
Screwed/Screwless	Screwed
Switched/Unswitched	Unswitched
Switches & Sockets Product Type	Fused Spur
Switches & Sockets Profile Type	Raised Rounded
Terminal Capacity	Terminals accept 3 x 2.5mm², 2 x 4mm² or 1 x 6mm² cables
Terminal Description	Colour-Coded Terminals with Captive Screws
With Flex Outlet	Flex Outlet
With RCD	RCD
