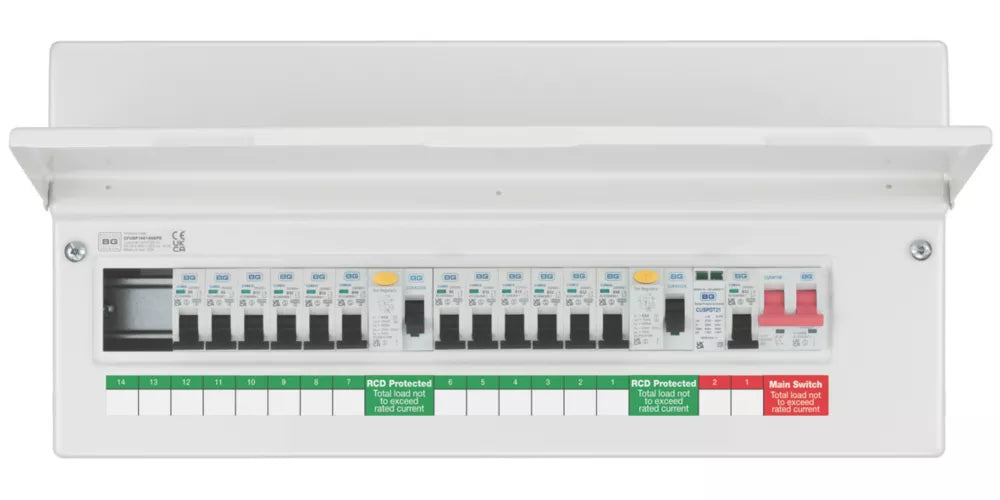

Name: BRITISH GENERAL FORTRESS 22-MODULE 12-WAY POPULATED HIGH INTEGRITY DUAL RCD CONSUMER UNIT WITH SPD
Brand: British General
SKU: 11846-BRI
Price: 120.99 GBP
Availability: InStock

Description

WHAT'S IN THE BOX

1x BRITISH GENERAL FORTRESS 22-MODULE 12-WAY POPULATED HIGH INTEGRITY DUAL RCD CONSUMER UNIT WITH SPD (208KR)

NOTES FROM MT EXPERT

12 x Type B MCBs (3 x 6A, 1 x 10A, 2 x 16A, 4 x 32A, 1 x 40A & 1 x 50A)

BRITISH GENERAL FORTRESS 22-MODULE 12-WAY POPULATED HIGH INTEGRITY DUAL RCD CONSUMER UNIT WITH SPD (208KR)

18th Edition Amendment 2.

40kA Type 2 SPD
100A Mains Switch
2 x Type A 63A 30mA RCDs
12 x Type B MCBs (3 x 6A, 1 x 10A, 2 x 16A, 4 x 32A, 1 x 40A & 1 x 50A)
2 Blanks
Floating Busbar
DIN Rail Supplied
Top, Bottom, Left, Right & Rear Cable Entry Points

SPECIFICATION
Brand	British General
Busbar Type	Floating Busbar
CSU Populated/Unpopulated	Populated
Cable Entry Points	Top, Bottom, Left, Right & Rear
Construction Material (Electrical)	Steel
Consumer Unit Type	Dual RCD
Current Rating	63 A
DIN Rail Supplied	DIN Rail Supplied
Fixings Supplied	Fixings Not Supplied
IP Rating	IP2XC
Integrity	High Integrity
MCBs Supplied	MCB
Mains Switch Rating	100A Mains Switch
Manufacturer Guarantee	1 Year Guarantee
Model Name	Fortress
Model No	CFUDP16614ASPD
No. of MCBs Supplied	12 x Type B MCBs (3 x 6A, 1 x 10A, 2 x 16A, 4 x 32A, 1 x 40A & 1 x 50A)
No. of Populated Ways	12
No. of RCBOs Supplied	0 x RCBOs
No. of RCDs Supplied	2 x Type A 63A 30mA RCDs
No. of SPDs Supplied	40kA Type 2 SPD
Pack Size	1
Pieces in Pack/Case	1
Power Voltage Supply	230 V
Product Depth	115.5 mm
Product Height	231 mm
Product Type	Consumer Unit
Product Width	442.4 mm
RCBOs Supplied	No RCBOs Supplied
RCD Type	Type A
RCDs Supplied	RCD
SPDs Supplied	SPD
Total No. Module Spaces When Empty	22
Total Product Weight	6.97 kg
Way	12 Way

PRODUCT CONTENTS

Consumer unit, busbar, busbar shroud, way labels and cover blanks
