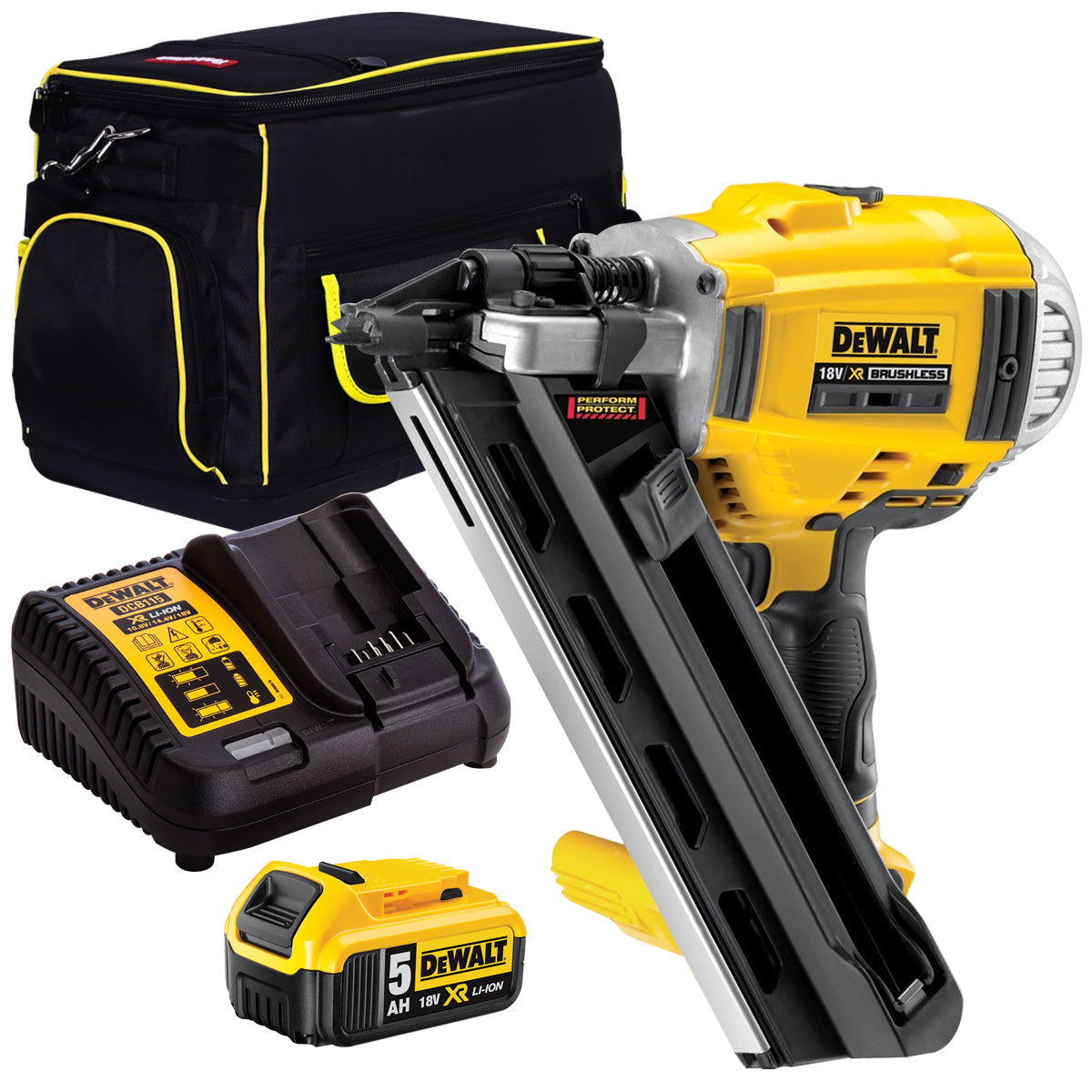

DeWalt DCN692N 18V Brushless First Fix 90mm Framing Nailer with 1 x 5.0Ah Battery, Charger & 20" Bag
The DeWalt DCN692N XR First Fix Framing Nailer is also referred to as a framing nailer. They are used to complete rough woodwork, such as flooring, wood framing, timber frame erection, and roofing, mainly within the construction industry. This is the complete gun from DeWalt to ease through most nailing jobs. It offers two-speed options for firing a wide range of nail sizes with much less recoil, which makes a big difference when firing short length nails. The magazine is angled at 30 to 34 degrees to deal with most clipped heads and off-center round heads with paper tape or wire weld collated nails.
Features:
DeWalt DCN692 First Fix Framing Nailer:
Two speeds, or power levels, optimise the nailer for firing all lengths of nails
Benefits include longer runtime, quicker readiness to fire, less recoil, and more durability when firing short nails
A brushless motor gives the possibility of firing a 90mm ring shank nail in softwood and 63mm into hardwoods
The sequential operating mode allows for precision placement, and the bump operating mode provides the user with production speed
High-capacity 4.0 Ah XR battery packs offer extreme runtime in both speeds and versatility to share power with your other 18V XR power tools
Mechanical rather than gas operation offers consistent performance at temperatures between -20 and 50 degrees Celsius with minimal cleaning and service requirements
Class-leading vibration and sound figures offer fantastic user protection
Versatile 30 to 34 degree magazine angle will accept most clipped heads and off-center round head paper tape or wire weld collated framing nails
Reversible belt/rafter hook provides increased portability and versatility on the job site
Depths can be easily adjusted using the thumb wheel depth adjuster
Increased visibility and durability, along with protection for the work surface from the non-mar contact trip
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
Gas-free operation offers a significant saving in running costs
Tool-free stall/jam clearance minimises user down time
Cordless design means no hanging leads to deal with
The user can engage contact trip lock-off and prevent accidental discharging of fasteners
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
Comes with:
1 x DCB184 5.0Ah Battery
1 x Multi-Voltage XR Charger
1 x 20" Tool Bag
Product Specification:
Dewalt DCN692 First Fix Framing Nailer:
Barcode: 5035048461655
Battery chemistry: XR Li-Ion
Voltage: 18V
Battery Capacity: 5.0 Ah
Nail Diameter: 2.8 - 3.3 mm
Magazine angle: 30 - 34 °
Magazine loading: Rear - load
Nail Length: 50 - 90 mm
Magazine capacity: Up to 55 Nails
Firing mode: Bump & Sequential
Length: 345 mm
Width: 125 mm
Height: 338 mm
Nailer Operating Mode: Selective
Integrated Belt Hook: Yes
Jam Clearing: Yes
Impact energy: 105 J
Temperature Range: -20 to 50°C
Fault indicator: Yes
**images for illustrative purposes only – please refer to description and specification for full details of product**
