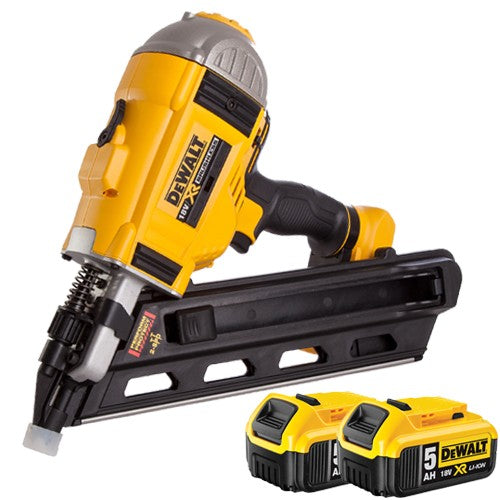

DeWalt DCN692N 18V Brushless First Fix Framing Nailer with 2 x 5.0Ah Battery T4TKIT-1078
The DeWalt DCN692N XR First Fix Framing Nailer is also referred to as a framing nailer. They are used to complete rough woodwork, such as flooring, wood framing, timber frame erection, and roofing, mainly within the construction industry. This is the complete gun from DeWalt to ease through most nailing jobs. It offers two-speed options for firing a wide range of nail sizes with much less recoil, which makes a big difference when firing short length nails. The magazine is angled at 30 to 34 degrees to deal with most clipped heads and off-center round heads with paper tape or wire weld collated nails.
Features:
DeWalt DCN692 First Fix Framing Nailer:
Two speeds
Longer run time, quicker readiness to fire, less recoil and more durability when firing short nails
The power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
The sequential operating mode
Mechanical operation offers consistent performance at temperature between -20 and 50 degrees Celsius
Class leading vibration and sound figures, offer fantastic user protection.
Versatile 30 - 34 degree magazine angle will accept most clipped head and off centre round head framing nails
Reversible belt/rafter hook
Depths can be easily adjusted using the thumb wheel depth adjuster
Ergonomic tool design allows the nailer to fit easily between a 400mm centre stud
Cordless design
Dry fire lockout
Comes with:
2 x DCB184 5.0Ah Battery
Product Specification
DeWalt DCN692 First Fix Framing Nailer:
Barcode: 5035048461655
Nail Diameter: 2.8 - 3.3 mm
Magazine angle: 30 - 34°
Magazine loading: Rear - load
Nail Length: 50 - 90 mm
Magazine capacity: Up to 55 Nails
Firing mode: Bump & Sequential
Nailer Operating Mode: Selective
Integrated Belt Hook: Yes
Jam Clearing: Yes
Impact energy: 105 J
Temperature Range: -20 to 50°C
Fault indicator: Yes
