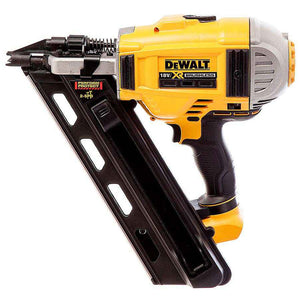

DeWalt DCN692N 18V XR Brushless 90mm First Fix Framing Nailer Body Only

• Fires 18ga 50-90mm Nails
• Fires up to 120/min
• Bump & Sequential Trigger Action
• Depth Adjustment

DeWalt DCN692N 18V XR Brushless 90mm First Fix Framing Nailer Body Only

The DeWalt DCN692N First Fix Framing Nailer is also referred to as a framing nailer. They are used to complete rough woodwork, such as flooring, wood framing, timber frame erection, and roofing, mainly within the construction industry. It offers industry professionals such as roofers, carpenters, and fitters a reliable and efficient nailer to suit their framing needs. This nail gun is able to fire a 90mm ring-shank nail into softwood and 63mm into hardwoods. A combination of intelligent electronics and the Dewalt brushless motor means that even with heavy use, this will last a full day of work without requiring a battery change. Also, the battery pack is placed below the handle to create a well-balanced unit that fits easily between the 400mm centre studs. The unique Bump Mode function of the DCN692N allows the user to fire 2 nails per second, and a tool-free stall/jam clearance minimises user downtime.

Features:

Two speeds
Longer run time
Quicker readiness to fire
Less recoil
Able to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
Sequential operating mode allows for precision placement
Bump operating mode provides the user with production speed
Mechanical rather than gas operation offers consistent performance at temperatures between -20 and 50 degrees
Will accept most clipped head, and off centre, round head paper tape or wire weld collated framing nails
Reversible belt/rafter hook provides increased portability
Depths can be easily adjusted using the thumb wheel depth adjuster
Ergonomic tool design
Tool-free stall/jam clearance minimises user downtime
Cordless
User can engage contact trip lock-off and prevent accidental discharge of the fastener
Dry fire lockout ensures that the tool is protected from firing without nails in the magazine

Comes with:

1 x Belt hook (reversible)
1 x No mark tip

Product Specification:

Barcode: 5055990003420
Nail Diameter: 2.8 - 3.3 mm
Magazine angle: 30 - 34 °
Magazine loading: Rear - load
Nail Length: 50 - 90 mm
Magazine capacity: Up to 55 Nails
Firing mode: Bump & Sequential
Length: 345 mm
Width: 125 mm
Height: 338 mm
Nailer Operating Mode: Selective
Integrated Belt Hook: Yes
Jam Clearing: Yes
Impact energy: 105 J
Temperature Range: -20 to 50°C
Fault indicator: Yes

**images for illustrative purposes only – please refer to description and specification for full details of product**
