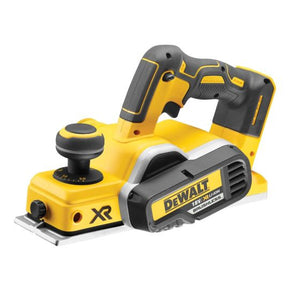

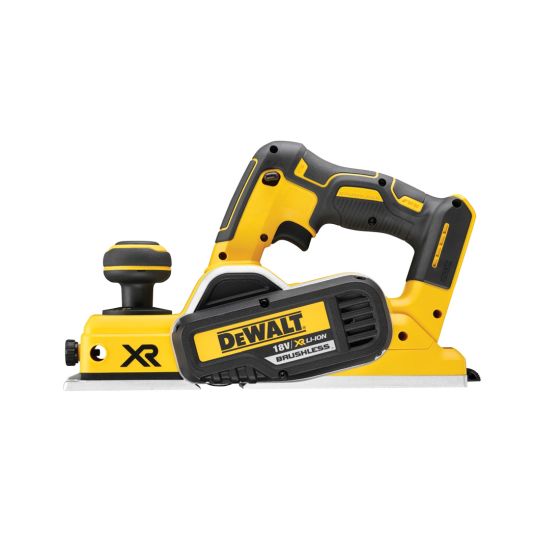

DEWALT DCP580N-XJ 18V XR 82MM CORDLESS BRUSHLESS PLANER BODY ONLY
The DeWalt DCP580N-XJ is the world’s first 18v brushless, cordless planer. It's a compact and well balanced machine for both horizontal and vertical planing with twin 82mm reversible blades and the power to plane up to 2.0mm in soft wood or 1.0mm in hard wood. There's two 82mm tungsten carbide tipped reversible blades already attached and it has a discreet on-board blade storage area, with integrated torx key for quicker blade changes.
It has a DeWalt XR brushless motor which eliminates wasted energy, maximising the runtime and life of the tool. This innovative new technology pairs a highly efficient brushless motor with a high capacity XR battery, working in tandem to provide maximum output and best-in-class runtime. The DCP580 has enough runtime for a typical day’s work from just one charge of a DeWalt 18v 5Ah XR Li-ion battery, significantly reducing costly downtime and providing end-users with market-leading efficiency.
DEWDCP580N-XJ FEATURES
- Brushless Motor - Increased power and runtime
- Lightweight - only 3.1 Kg with battery, weighted towards the front of the trigger to reduce any physical strain during use
- Soft grip handle offers end-users optimum comfort and manoeuvrability during a wide range of applications
- On board blade storage and torx key - for quick and easy blade changes
- 2.0mm Depth of Cut - For large material removal
- Fine indexed, accurate depth adjustment knob allows for maximum precision with 0.1mm increments
- Front and rear shoe milled in situ - For increased accuracy
- Part of the intelligent XR Lithium-Ion Series designed for efficiency and making applications faster
- Air lock port - compatible with DeWalt Airlock dust extraction system or DWV9390-XJ Dust Bag
- Foot lock off - stands the tool above the work surface
- Market leading 9.00mm rebate capacity making it ideal for minor on-site alterations and fixes
DEWALT DCP580N-XJ SPECIFICATION
- Battery Chemistry: XR Li-Ion
- Voltage: 18v
- No Load Speed: 15,000 rpm
- Maximum Depth of Cut: 2.0 mm
- Rebating Depth: 9.0 mm
- Planer Width: 82 mm
- Shoe Length: 295 mm
- Drum Diameter: 48 mm
- Weight: 2.5 kg
- Length: 370 mm
DCP580N-XJ DEWALT CORDLESS PLANER NOISE & VIBRATION
- Sound Pressure: 88 dB(A)
- Sound Pressure Uncertainty: 3 dB(A)
- Sound Power: 99 dB(A)
- Sound Power Uncertainty: 3 dB(A)
- Hand/Arm Vibration: <2.5 m/s2
- Uncertainty K 1 (Vibration): 1.5 m/s²
