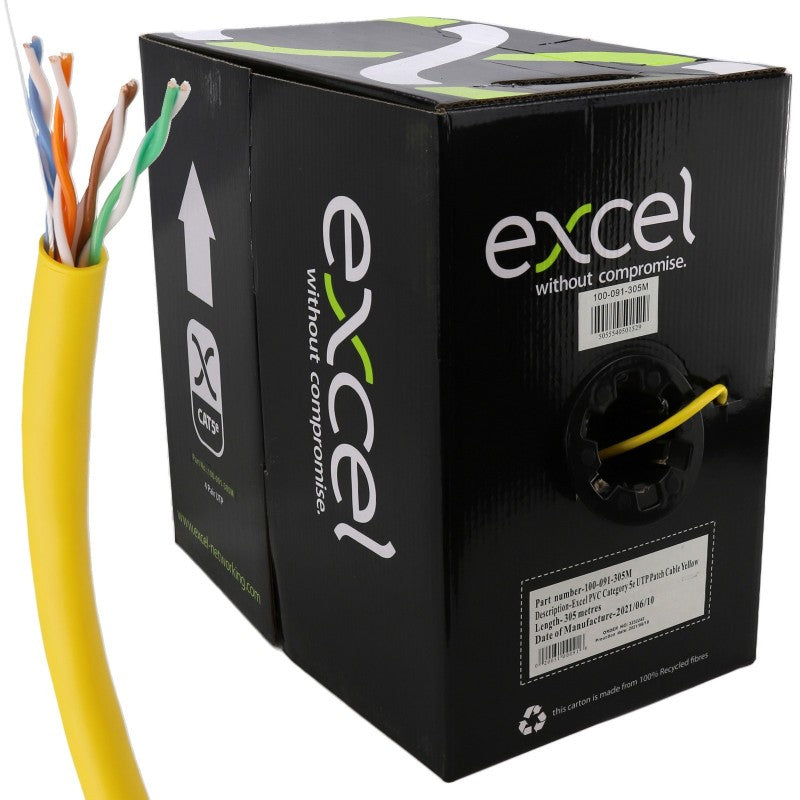

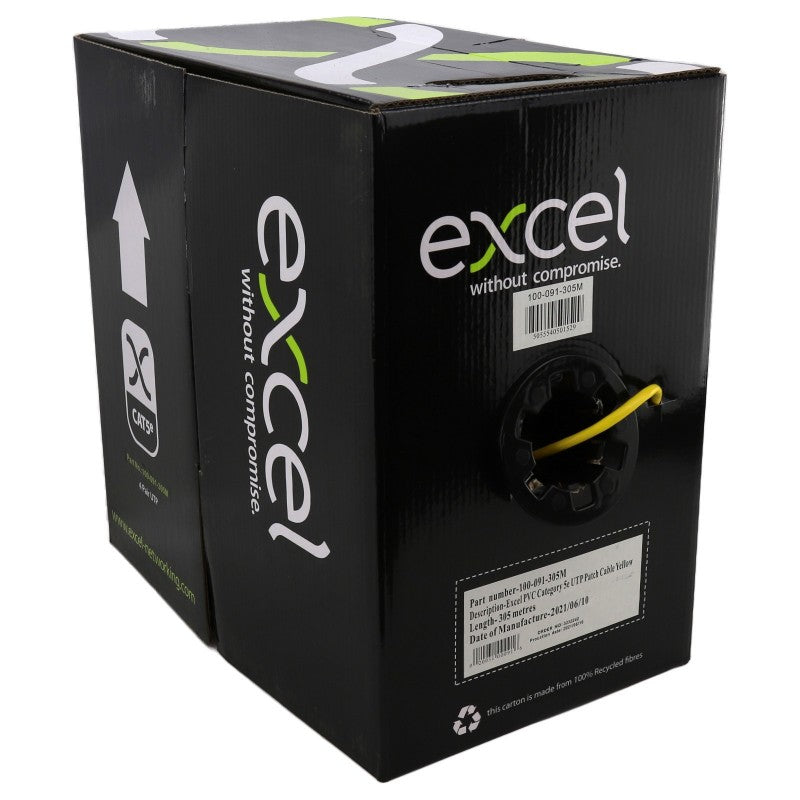

EXCEL STRANDED NETWORK CABLE CAT5E U/UTP PVC FOR ETHERNET PATCH LEAD 305M YELLOW

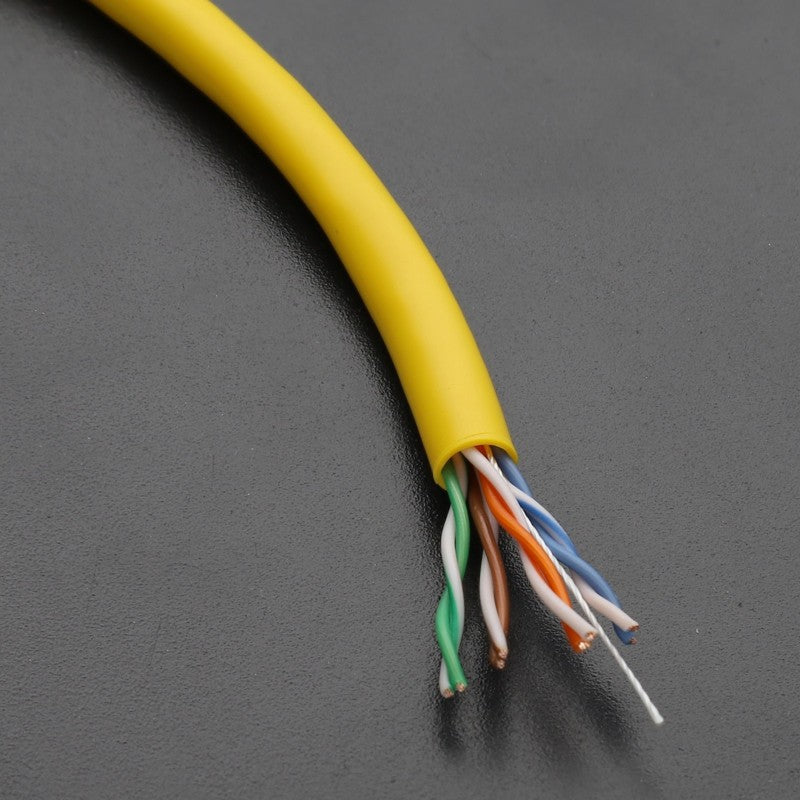

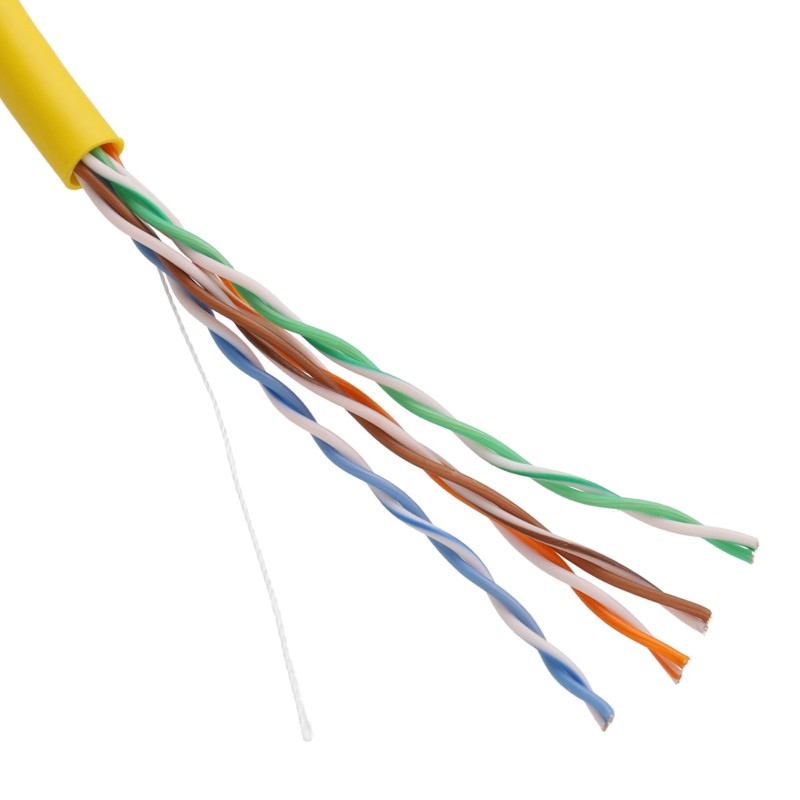

Excel Cat5e ethernet patch lead cable U/UTP PVC are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA 568 C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded stranded copper conductors twisted together to form four pairs. The whole cable is produced in a PVC sheath and is highly flexible and easy to use.

Cat5e Patch Lead Cable
U/UTP No Overall Screening
No Conductor Screening
24 AWG size conductors
Specification core insulation PE

Conductor surface: Bare
AWG size: 24

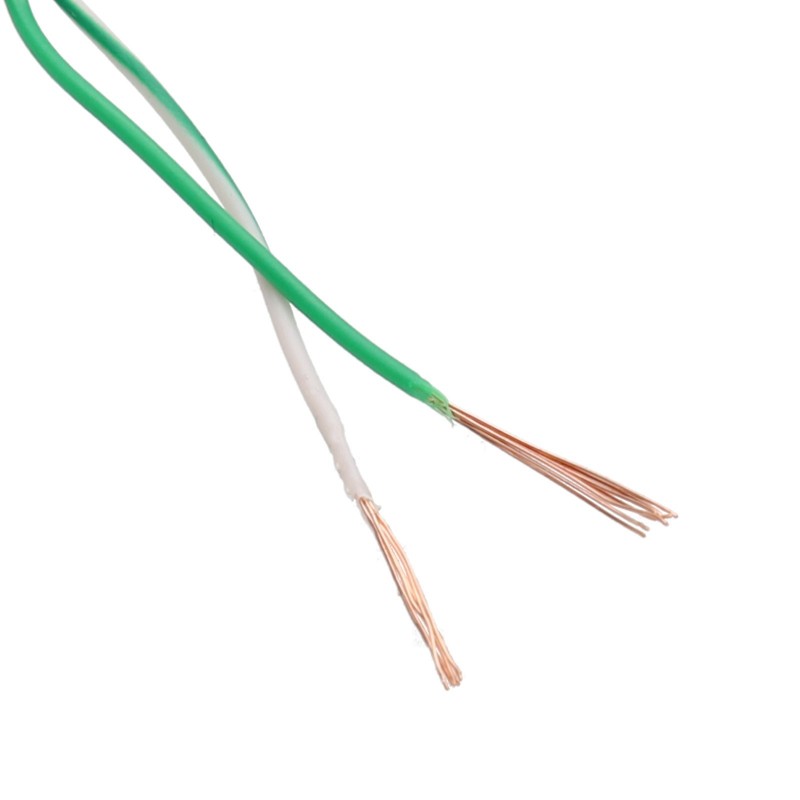

Conductor category: Class 2 = stranded

Total number of cores: 8
Stranding element: Pairs
Specification core insulation: PE
