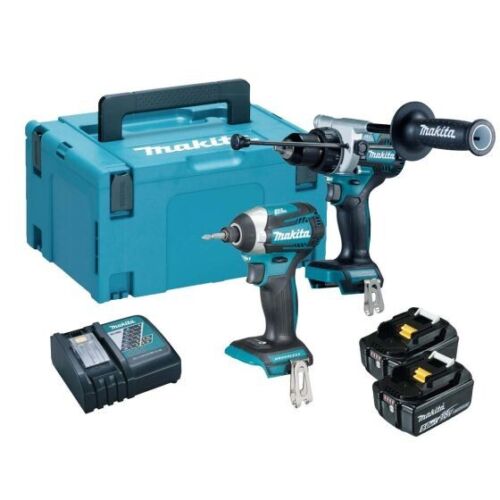

MAKITA DLX2412TJ 18V LXT BRUSHLESS TWIN KIT DHP486 COMBI DRILL & DTD154 IMPACT DRIVER INC 2X 5.0AH BATTS
The Makita DLX2412TJ twin kit features two heavy duty and compact tools - DHP486 Combi Drill & DTD154 Impact Driver.
Supplied with 2x 18v 5.0Ah BL1850 B197280-8 Batteries, 1x DC18RC Compact Charger and 1x Makpac Connector Carry Case (821551-8 Type 3)

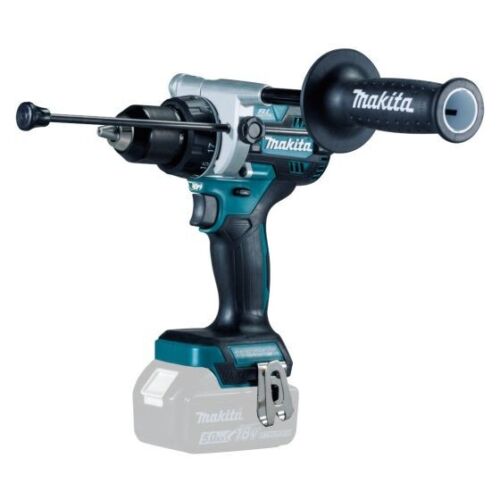

DHP486 18V LXT BRUSHLESS HEAVY DUTY COMBI DRILL
The Makita DHP486 18V LXT Brushless Hammer Driver Drill provides 130Nm of maximum fastening torque and no load speed of 2,100rpm combining rapid drilling speeds with high levels of torque. This model is based on the DHP481, but has been redesigned with a newly designed motor and gear ratio achieving not only more power but also increasing the performance in continuous heavy-duty applications. Not only has the performance on the DHP481 been increased but it is also considerably shorter. At 178mm in length this model is 27mm shorter than the DHP481. Making it the most compact drill in its class and extremely comfortable to use in all applications.
FEATURES
- Massive drilling capacity with 152mm hole saw & 50mm auger bit capacity
- Compact overall length of only 178mm for use in narrow work spaces
- High powered Brushless Motor produces 130Nm peak torque
- High durability aluminium gear housing
- Mechanical 2 speed gearing with all metal gear construction
- Forward / reverse rotation
- Single sleeve keyless chuck allows for easy bit installation/removal by one hand
- Electric brake
- Variable speed control by trigger
- Best possible ergonomic handle for drill-driver applications
- LED job light
- Belt clip
- XPT - Extreme Protection Technology
SPECIFICATION
- Voltage: 18v
- Soft Application Max Torque (Nm): 65
- Hard Application Max Torque (Nm): 130
- Torque Settings: 21 + Drill
- Brake Type: Electric
- No. of Gears: 2
- LED Job Light: Yes / Twin / Pre-glow / After-glow
- Battery Capacity Indicator: No
- Battery Compatibility: 18v Lithium-Ion (LXT)
- Rotation: Forward / Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed (RPM) High: 0-2100
- No Load Speed (RPM) Med: N/A
- No Load Speed (RPM) Low: 0-550
- Chuck Type: 3-Jaw / Single Sleeve Keyless / All Metal
- Chuck Capacity (mm): 13
- Screw Capacity: Machine Screw (mm): 6
- Screw Capacity: Wood Screw (mm): 10 x 90
- Drill Capacity: Concrete (mm): 16
- Drill Capacity: Metal (mm): 13
- Drill Capacity: Wood (mm): 76
- Impact Rate (BPM) High: 0-31500
- Impact Rate (BPM) Med: N/A
- Impact Rate (BPM) Low: 0-8250
- Overall Length (mm): 178
- Net Weight (Approx. Kg) with 1.5/2Ah Batt: 2.3
- Net Weight (Approx. Kg) with 3/4/5Ah Batt: 2.7
- Brushless Motor: Yes
NOISE & VIBRATION
- Sound Pressure Level (LpA): 84 dB (A)
- Sound Power Level (LWA): 95 dB (A)
- Sound Uncertainty (K): 3 dB (A)
- Drilling Concrete Vibration Emission (ah): 8.0 m/s²
- Drilling Concrete Vibration Uncertainty (K): 1.5 m/s²
- Drilling Metal Vibration Emission (ah): 2.5 m/s²
- Drilling Metal Vibration Uncertainty (K): 1.5 m/s²

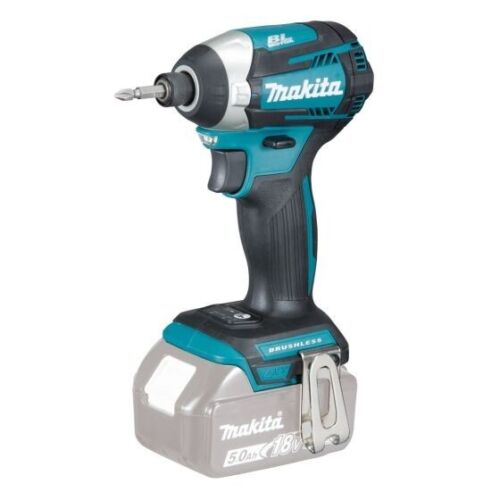

DTD154 18V LXT LI-ION BRUSHLESS IMPACT DRIVER
Heavy duty, with an ULTRA-COMPACT design at just 117mm long and the Brushless DC Motor make the DTD154 impact driver one of Makita's best tools to date. It has an electronic 3 stage impact power selector + TEK mode selection which prevents over tightening of fasteners. It's high rotational speed of 3,600rpm and max torque of 175Nm makes it one of the top performers in its class.
FEATURES
- eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
- 3 stage impact power selection + TEK mode prevents over tightening of fasteners
- Super compact with an overall length of only 117mm
- One touch sliding chuck for easy bit installation and removal
- TEK mode (T-mode) reduces impact power during final stages of fastener seating
- Electronic 3-stage impact power selection (Hard/Medium/Soft)
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
- Twin LED job lights with pre-glow and afterglow features
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
SPECIFICATION
- Voltage: 18v
- Max Torque (Nm): 175
- Brake Type: Electric
- LED Job Light: Yes / Twin / Pre-glow / After-glow
- Battery Capacity Indicator: No
- Battery Compatibility: 18v Lithium-Ion (LXT)
- Rotation: Forward & Reverse
- Variable Speed Control Trigger: Yes / + 3-Stage Impact Power Selection
- No Load Speed (RPM): H: 0-3600 / M: 0-2100 / S: 0-1100
- Machine Screw Capacity: M4-M8
- Standard Bolt Capacity: M5-M16
- High Tensile Bolt Capacity: M5-M14
- Coarse Thread Length Capacity (mm): 22-125
- Max. Impacts Per Minute (ipm): H: 0-3800 / M: 0-2600 / L: 0-1100
- Driving Shank: 1/4" Hex
- Overall Length (mm): 117
- Net Weight (Kg with 1.5/2Ah Battery): 1.2
- Net Weight (Kg with 3/4/5Ah Battery): 1.4
- Brushless Motor: Yes
