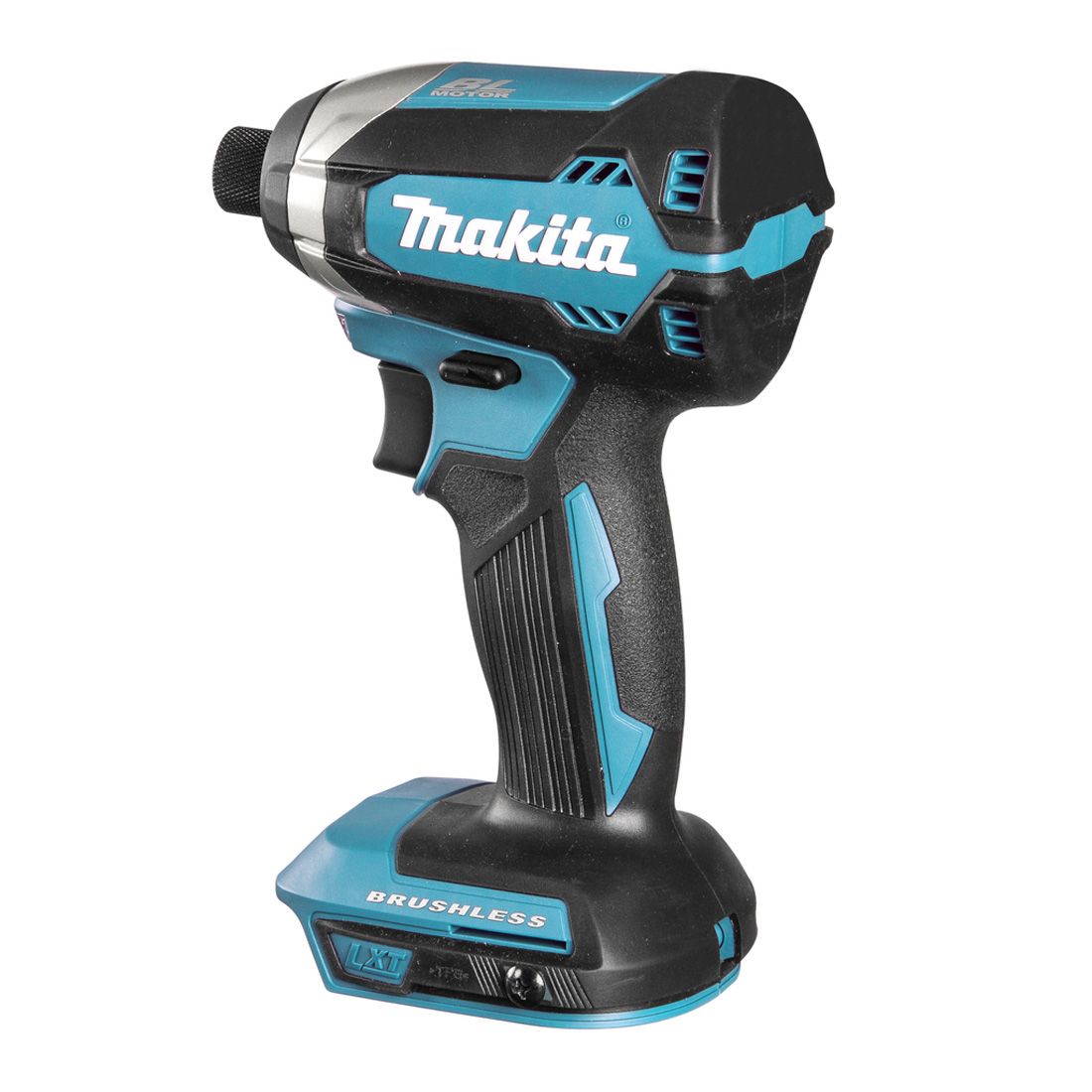

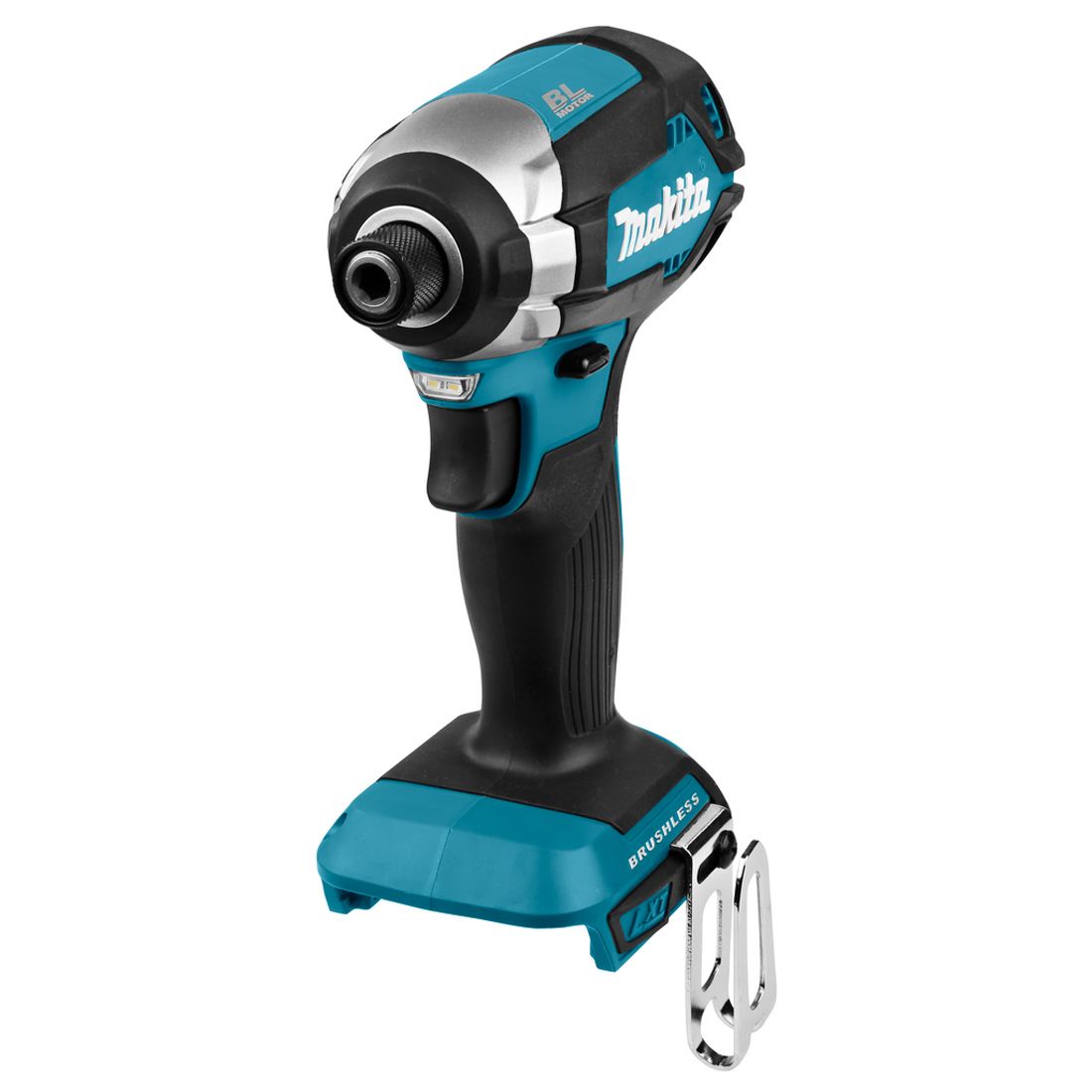

MAKITA DTD153Z 18V LXT CORDLESS BRUSHLESS IMPACT DRIVER BODY ONLY

MAKITA DTD153Z 18V LXT CORDLESS BRUSHLESS IMPACT DRIVER BODY ONLY

The DTD153 cordless impact driver features high operation efficiency with a 170 Nm max torque and 4 pole brushless motor. It's keyless single sleeve 1/4" hex chuck accepts M5 – M16 standard bolts and M4 – M8 machine screws, making it ideal for repetitive screwdriving.

The DTD153 has been developed based on the DTD129 and has a no-load speed of 3,400 rpm, providing up to 3,600 impacts per minute. This high percussive action saves time and effort, driving screws up to 30% faster than a conventional drill/driver. When using high powered impact drivers, no pilot hole is needed, even into hardwood.

FEATURES

• eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
• Compact design with an overall length of only 126mm
• One touch sliding chuck for easy bit installation and removal
• Brushless DC motor with high power to weight and size ratio
• Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
• Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
• LED job light with pre-glow
• Ergonomic soft rubber grip design for vibration absorption and comfortable operation

SPECIFICATION

• Voltage: 18v
• Max Torque (Nm): 170
• Brake Type: Electric
• LED Job Light: Yes / Pre-glow
• Battery Capacity Indicator: No
• Battery Compatibility: 18v Lithium-Ion (LXT)
• Rotation: Forward & Reverse
• Variable Speed Control Trigger: Yes
• No Load Speed (RPM): 0-3400
• Machine Screw Capacity: M4-M8
• Standard Bolt Capacity: M5-M16
• High Tensile Bolt Capacity: M5-M14
• Coarse Thread Length Capacity (mm): 22-125
• Max. Impacts Per Minute (ipm): 0-3600
• Driving Shank: 1/4" Hex
• Overall Length (mm): 126
• Net Weight (Kg with 1.5/2Ah Battery): 1.3
• Net Weight (Kg with 3/4/5Ah Battery): 1.5
• Brushless Motor: Yes

NOISE & VIBRATION

• Sound Pressure Level (LpA): 96 dB(A)
• Sound Power Level (LWA): 107 dB (A)
• Uncertainty (K): 3 dB(A)
• Vibration Emission (ah): 13.0 m/s²
• Uncertainty (K): 1.5 m/s²
