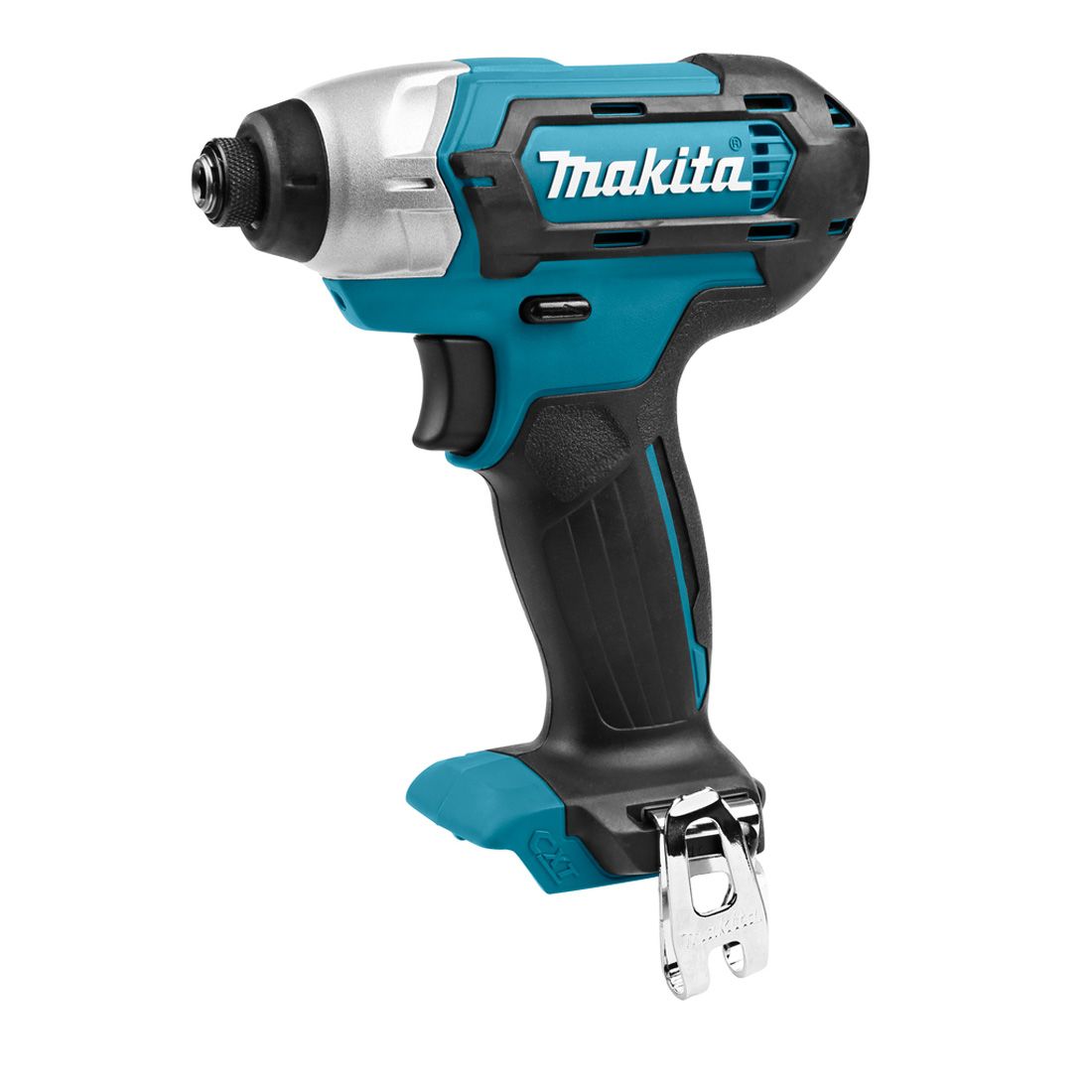

MAKITA TD110DZ 12V MAX CXT SLIDE IMPACT DRIVER BODY ONLY
The Makita TD110DZ is part of the CXT range of 10.8v tools with the slide type Li-Ion battery and higher speed and torque, supplied as a body only unit no batteries, charger or carry case.
The TD110D is a compact and lightweight impact driver with a maximum torque of 110Nm and maximum speed of 2,600 RPM. Features include a rubber moulded handle, LED light with afterglow feature and an electric brake that stops rotation almost immediately. The TD110D has a rubber moulded handle for a firm grip and a ¼” single sleeve chuck for rapid bit changeover.
CXT (Compact eXtreme Technology) batteries have higher battery capacity, a battery protection circuit that protects against overloading and overheating and are durable in low temperatures up to -20°C. Multi contact slide type terminals ensure stable contact even under vibration and a 4 stage LED battery fuel gauge displays remaining charge.
FEATURES
- New CXT 'Slide' type Lithium-ion battery style
- Electric Brake
- Variable speed by trigger
- Higher rotation speed
- High power - More torque than TD090D
- Battery protection circuit
- Forward/reverse rotation
- LED job light
- Ergonomic grip
- Belt clip
SPECIFICATION
- Voltage: 10.8v / 12v MAX
- Max Torque (Nm): 110
- Brake Type: Electric
- LED Job Light: Yes / Pre-glow & After-glow
- Battery Capacity Indicator: No
- Battery Compatibility: 10.8v Lithium-Ion (CXT Slide)
- Rotation: Forward & Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed (RPM): 0-2600
- Machine Screw Capacity: M4-M8
- Standard Bolt Capacity: M5-M12
- High Tensile Bolt Capacity: M5-M10
- Coarse Thread Length Capacity (mm): 22-90
- Max. Impacts Per Minute (ipm): 0-3500
- Driving Shank: 1/4" Hex
- Overall Length (mm): 153
- Net Weight (Kg with 1.5/2Ah Battery): 1.0
- Net Weight (Kg with 3/4/5Ah Battery): 1.2
- Brushless Motor: No
NOISE & VIBRATION
- Sound Pressure Level (LpA): 94 dB (A)
- Sound Power Level (LWA): 105 dB (A)
- Sound Uncertainty (K): 3 dB (A)
- Vibration Emission (ah) (Using Max Capacity of Tool): 8.0 m/s²
- Vibration Uncertainty (K): 1.5 m/s²
