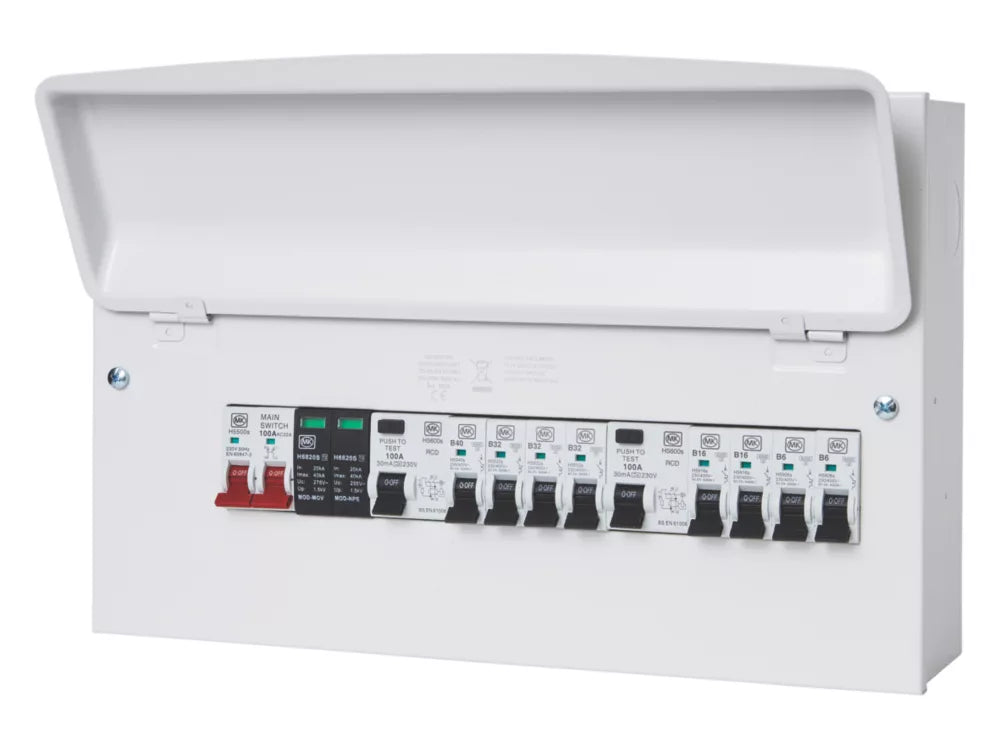

MK SENTRY 16-MODULE 8-WAY POPULATED DUAL RCD CONSUMER UNIT WITH SPD (437PF)
18th Edition Amendment 2. Fully populated metal enclosure with 20kA Type 2 SPD. Top-hinged door ensures door is closed when unit is not in use.
- 20kA Type 2 SPD
- 100A Mains Switch
- 2 x Type A 100A 30mA RCDs
- 8 x Type B MCBs (2 x 6A, 2 x 16A, 3 x 32A & 1 x 40A)
- 0 Blanks
- Floating Busbar
- DIN Rail Supplied
- Top, Bottom, Left, Right & Rear Cable Entry Points
| SPECIFICATION |
| Brand |
MK Sentry |
| Busbar Type |
Floating Busbar |
| CSU Populated/Unpopulated |
Populated |
| Cable Entry Points |
Top, Bottom, Left, Right & Rear |
| Construction Material (Electrical) |
Steel |
| Consumer Unit Type |
Dual RCD |
| Current Rating |
100 A |
| DIN Rail Supplied |
DIN Rail Supplied |
| Fixings Supplied |
Fittings Not Supplied |
| IP Rating |
IP2XC |
| Integrity |
Non High Integrity |
| MCBs Supplied |
MCB |
| Mains Switch Rating |
100A Mains Switch |
| Manufacturer Guarantee |
1 Year Guarantee |
| Model No |
YS8666SMET |
| No. of MCBs Supplied |
8 x Type B MCBs (2 x 6A, 2 x 16A, 3 x 32A & 1 x 40A) |
| No. of Populated Ways |
8 |
| No. of RCBOs Supplied |
0 x RCBOs |
| No. of RCDs Supplied |
2 x Type A 100A 30mA RCDs |
| No. of SPDs Supplied |
20kA Type 2 SPD |
| Pack Size |
1 |
| Pieces in Pack/Case |
1 |
| Power Voltage Supply |
230 V |
| Product Depth |
116 mm |
| Product Height |
244 mm |
| Product Type |
Consumer Unit |
| Product Width |
382 mm |
| RCBOs Supplied |
No RCBOs Supplied |
| RCD Type |
Type A |
| RCDs Supplied |
RCD |
| SPDs Supplied |
SPD |
| Total No. Module Spaces When Empty |
16 |
| Total Product Weight |
5.4 kg |
| Way |
8 Way |
PRODUCT CONTENTS
Enclosure, main switch, RCDs (2), MCBs (8) and SPD.
