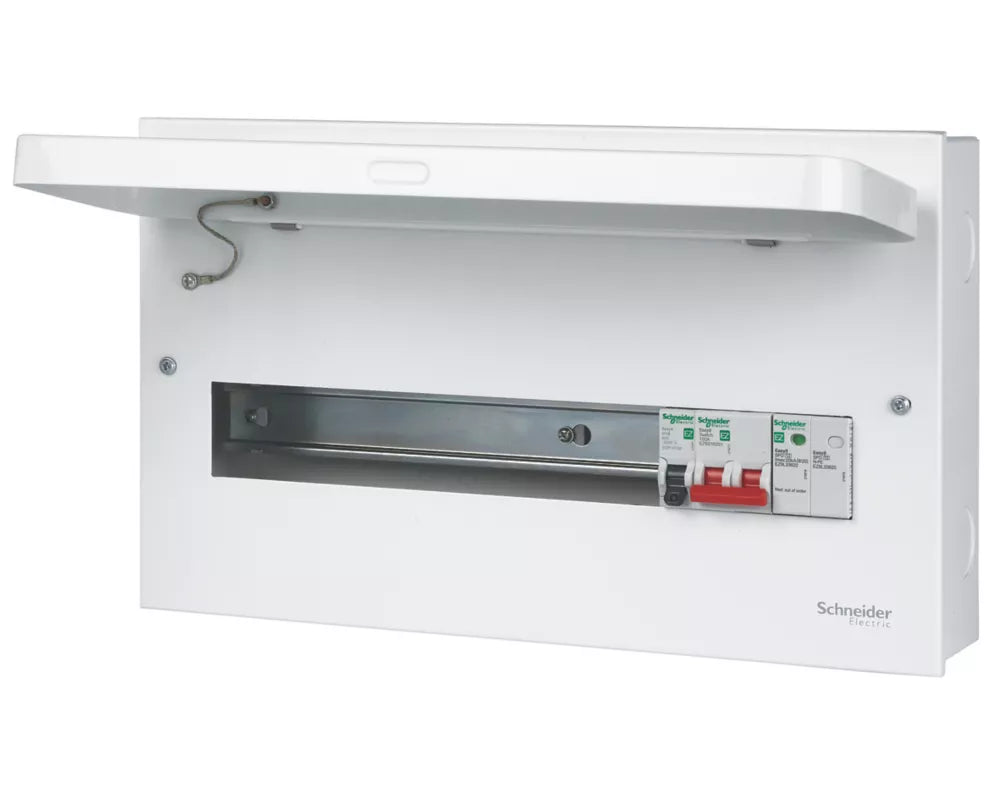

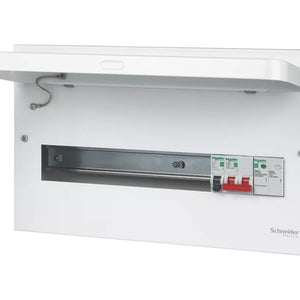

SCHNEIDER ELECTRIC EASY9 COMPACT 18-MODULE 13-WAY PART-POPULATED HIGH INTEGRITY MAIN SWITCH CONSUMER UNIT WITH SPD (276JE)

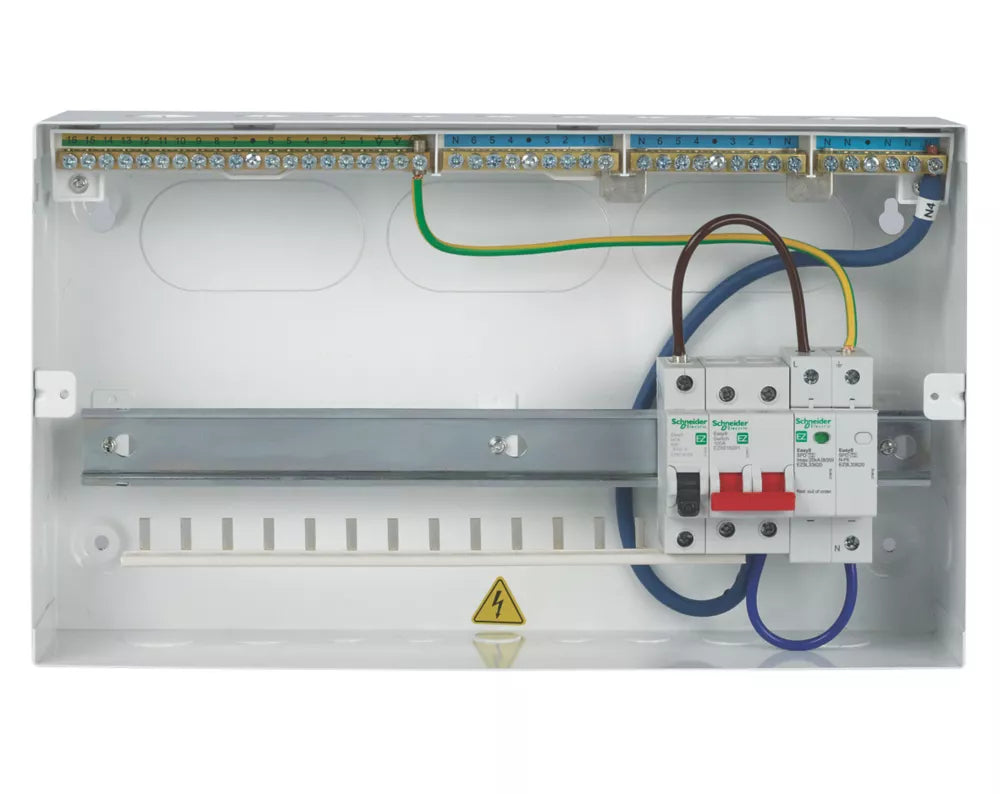

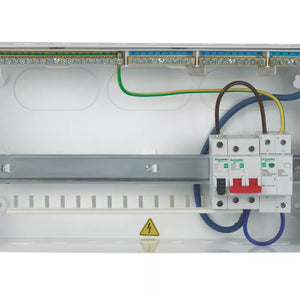

Compact metal enclosure unit with 100A mains switch. Includes SPD kit with 20A MCB, floating busbar and cable entry points on the top, bottom, side and rear. Removable DIN rail.
- 20kA Type 2 SPD
- 1 x Type B MCB (20A)
- 100A Mains Switch
- Floating Busbar
- DIN Rail Supplied
- Top, Bottom, Side & Rear Cable Entry Points
| SPECIFICATION |
| Brand |
Schneider Electric |
| Busbar Type |
Floating Busbar |
| CSU Populated/Unpopulated |
Part-Populated |
| Cable Entry Points |
Top, Bottom, Side & Rear |
| Construction Material (Electrical) |
Steel |
| Consumer Unit Type |
Main Switch |
| Current Rating |
100 A |
| DIN Rail Supplied |
DIN Rail Supplied |
| Fixings Supplied |
Fittings Not Supplied |
| IP Rating |
IP3X |
| Integrity |
High Integrity |
| MCBs Supplied |
MCB |
| Mains Switch Rating |
100A Mains Switch |
| Manufacturer Guarantee |
1 Year Guarantee |
| Model Name |
Easy9 Compact |
| Model No |
EZ9CCU16SWTSPD |
| No. of Available Ways |
13 |
| No. of MCBs Supplied |
1 x Type B MCB (20A) |
| No. of RCBOs Supplied |
0 x RCBOs |
| No. of RCDs Supplied |
0 x RCDs |
| No. of SPDs Supplied |
20kA Type 2 SPD |
| Pack Size |
1 |
| Pieces in Pack/Case |
1 |
| Power Voltage Supply |
230 V |
| Product Depth |
111.5 mm |
| Product Height |
243 mm |
| Product Type |
Part-Populated Consumer Unit with 100A Switch & SPD |
| Product Width |
407 mm |
| RCBOs Supplied |
No RCBOs Supplied |
| RCD Type |
Type A |
| RCDs Supplied |
No RCDs Supplied |
| SPDs Supplied |
SPD |
| Total No. Module Spaces When Empty |
18 |
| Total Product Weight |
4.97 kg |
| Way |
13 Way |
