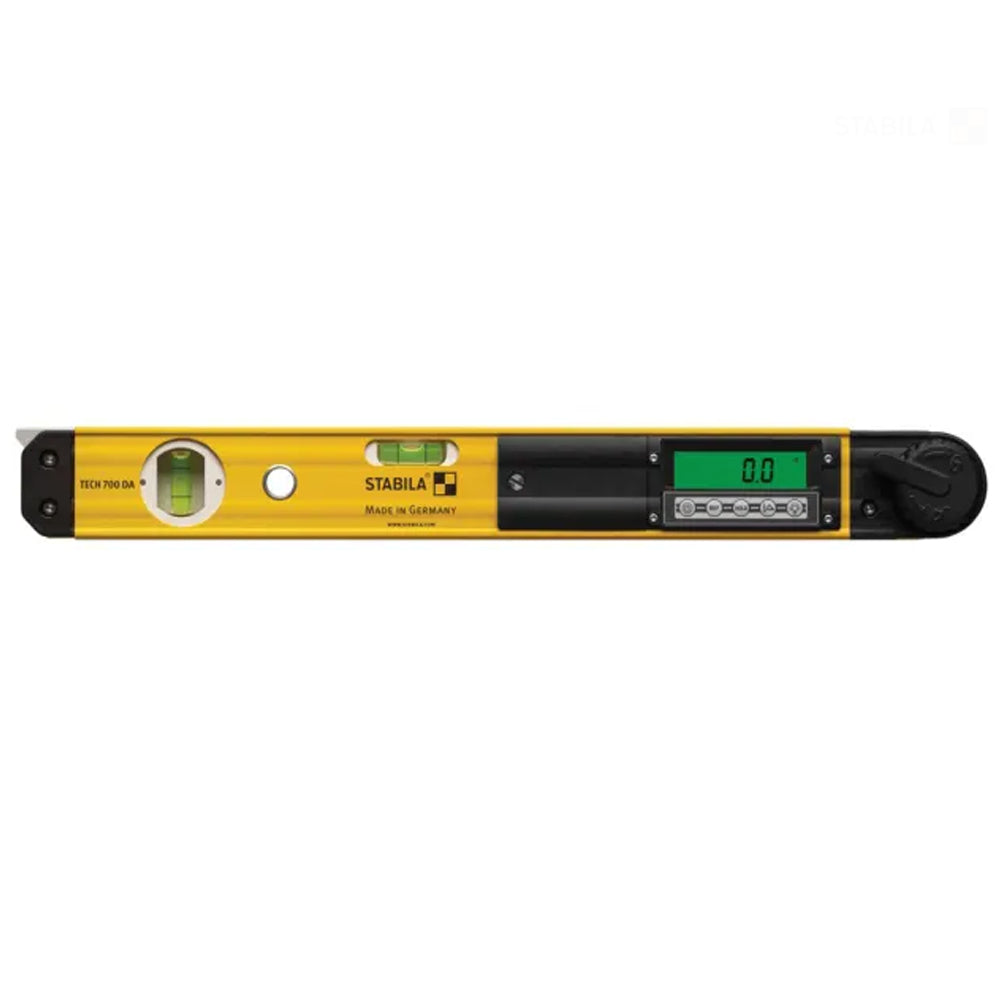

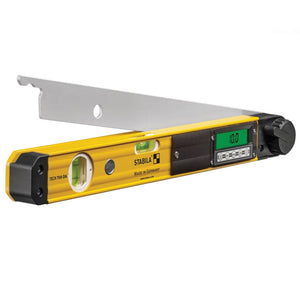

The Stabila TECH 700 DA Digital Electronic Angle Finder for quickly determining and transferring interior and exterior angles from 0° to 270°.
It has 1 digital display, 1 horizontal vial, 1 vertical vial and 2 coated measuring surfaces.
The vials are easily read, even with the arm folded in.
It has 2 particularly wide contact edges for accurate and reliable marking of angles in all positions.
The digital display shows large digits and the lighting can be activated and dimmed, depending on individual preference.
Displays the angle bisectors at the touch of a button, ideal for quick and accurate mitre cuts.
It also features the following functions:
LOCK: locking mechanism for transferring angles reliably
REF: allows a reference angle to be accepted, saved and then transferred to other components
HOLD: saves the measured value for accurate measurements and quick transferring even in hard-to-see places.
The Stabila TECH 700 switches off automatically if not used for 60 minutes.
It is IP54 rated, against splash and dust damage.
Part Number: STBTECH45
Barcode: 4005069189037
Length: 45cm
Accuracy: Normal Position 0.029° = 0.5mm/m; Reverse Position 0.043° = 0.75mm/m
Accuracy with Electronic Angle Measurement: ± 0.1°
Measuring Distance: 0° to 270°
**images for illustrative purposes only – please refer to description and specification for full details of product**
