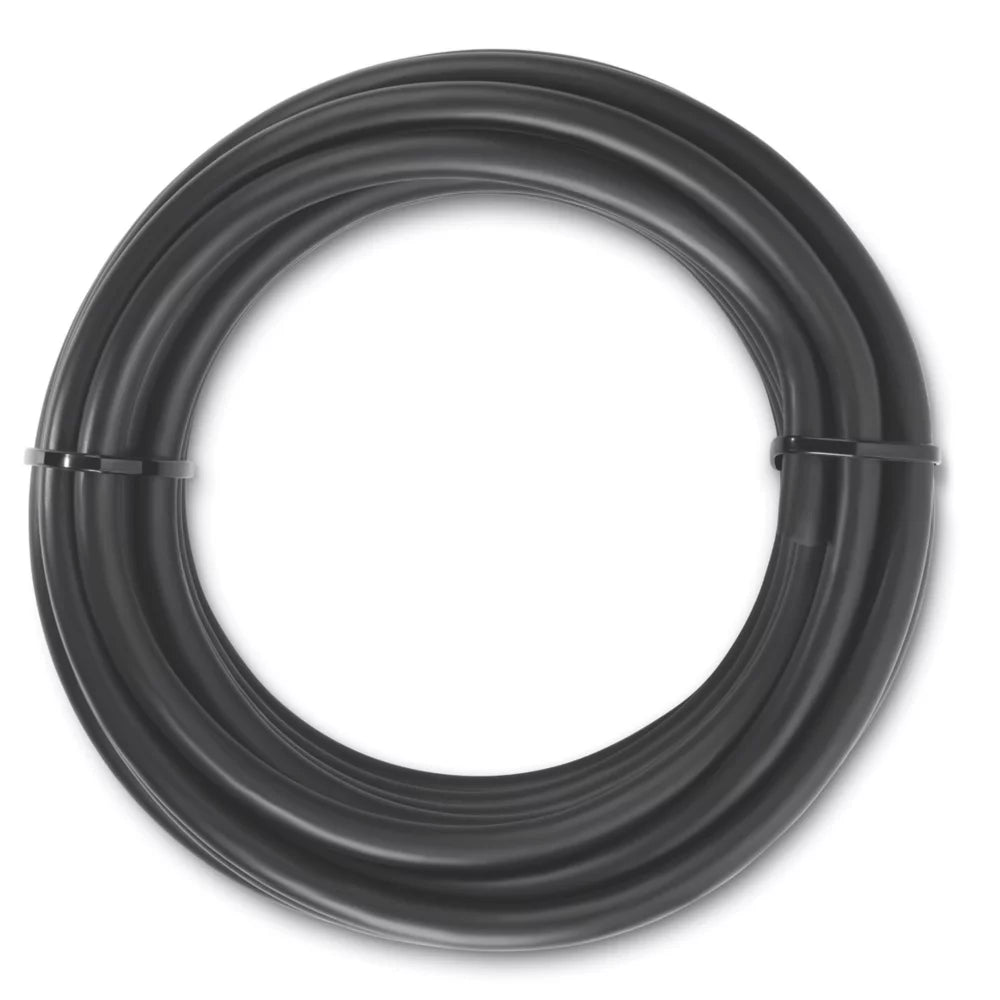

TIME EV-ULTRA BLACK 3-CORE 10MM² & CAT 5E 4-PAIR ARMOURED EV CHARGING CABLE 1M COIL (901RG)

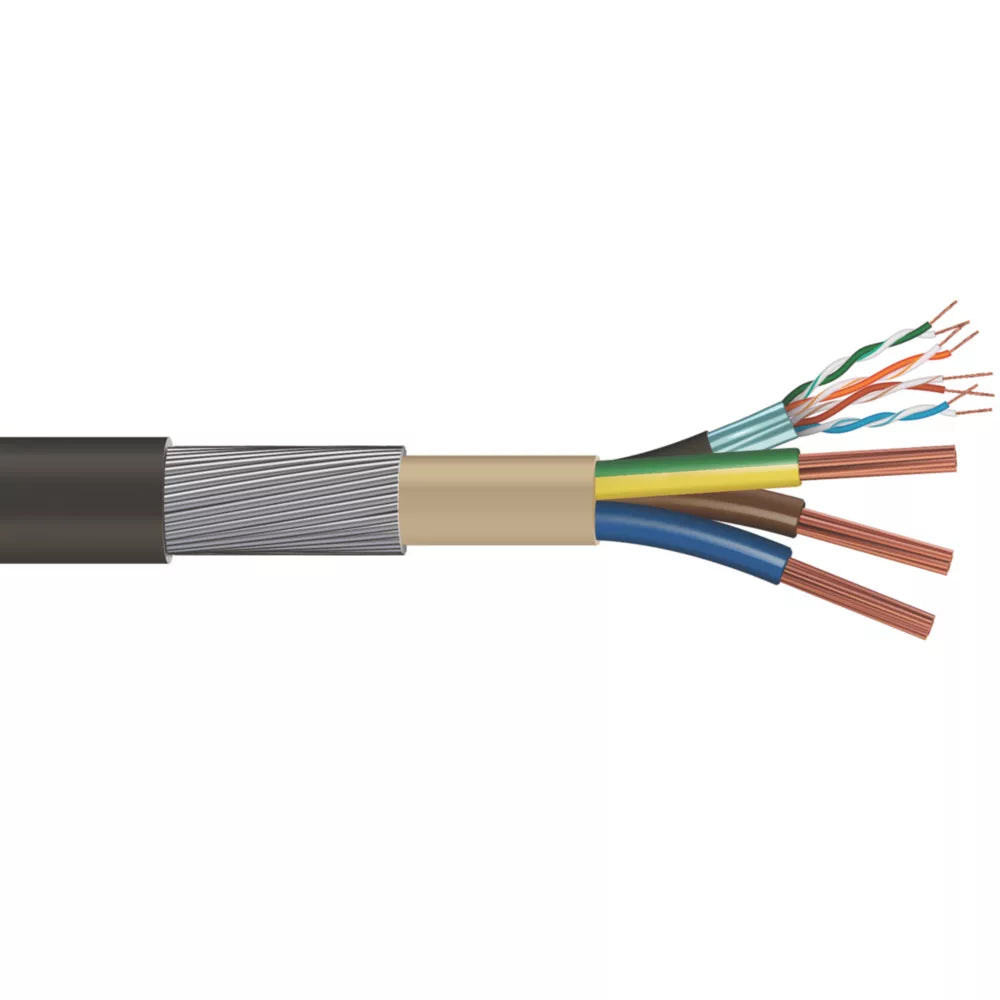

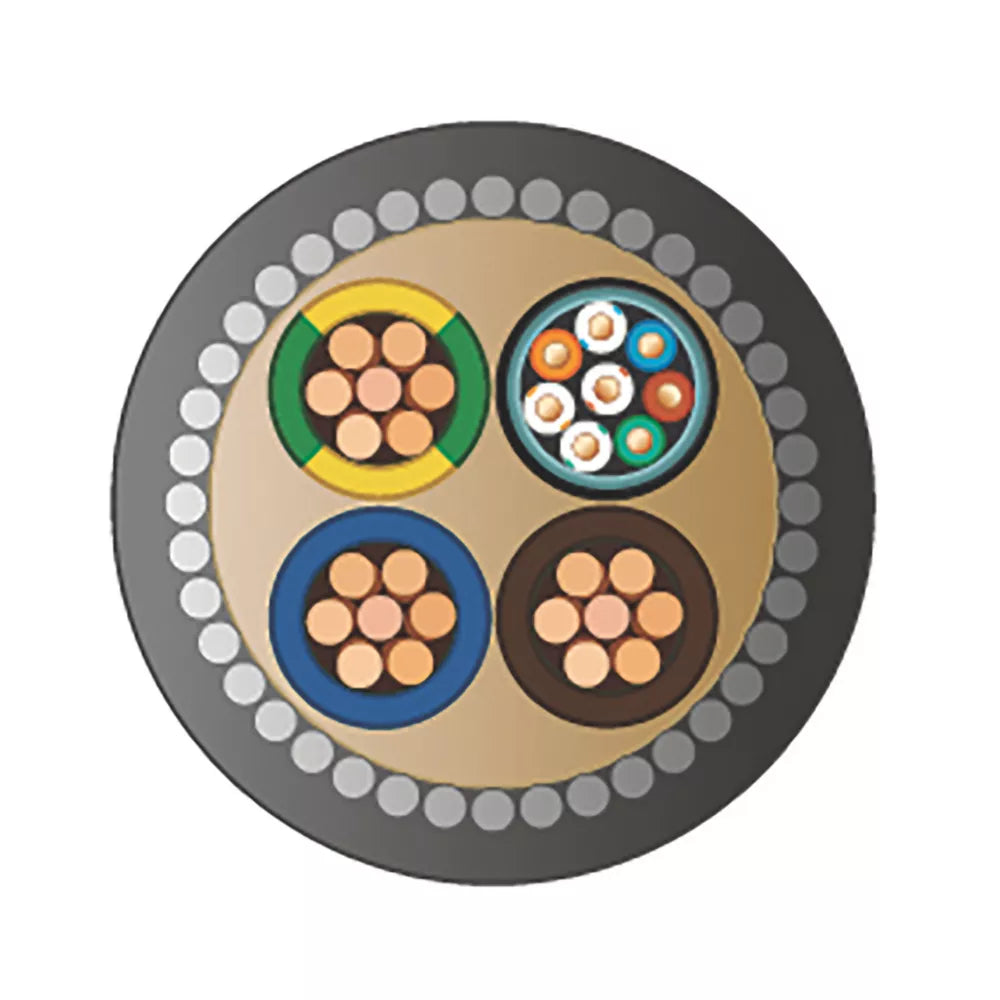

Galvanised steel wire armoured EV-Ultra cable. Includes power conductors and a cat 5e screened data cable, encased in a double-insulated sheath for protection. Ideal for installations that require both power and data. Easy to handle and route through walls and buildings. Can be clipped to surface, on cable tray/ladder work and embedded in concrete as well as laid direct in ground if suitable mechanical protection is in place. Suitable for use with the installation of electric vehicle charge points. This cable is priced per metre. To order, please enter the number of metres required and the cable will be supplied as one length.
- Black PVC Sheathed Cable
- Brown, Blue, Green/Yellow & Colour Coded Cores Twisted in Pairs
- 7 Strands Per Core
- For Indoor Use
- Cut to Length
| SPECIFICATION |
| Brand |
Time |
| Cable Code |
EV-Ultra |
| Cable End Type |
Bare |
| Cable Length |
1 m |
| Cable Product Type |
Armoured EV Charging |
| Cable Profile |
Round |
| Cable Voltage Rating |
600/1000 V |
| Coil or Drum |
Coil |
| Conductor Area |
10 mm² |
| External Diameter |
20.2 mm |
| Indoor/Outdoor Usage |
Indoor |
| Manufacturer Guarantee |
1 Year Guarantee |
| Maximum Operating Temperature |
90 °C |
| Minimum Operating Temperature |
-15 °C |
| Model No |
SF901RG |
| No. of Cable Cores |
3-Core |
| No. of Strands Per Core |
7 Strands Per Core |
| Pack Size |
1 |
| Pieces in Pack/Case |
1 |
| Product Type |
Armoured EV Charging |
| Sheath Colour |
Black |
