Trend Hinge Jig 2 Piece With Accessories H/JIG/A

SKU: 3432
card-icon
Credit Plans Available. Find out more
Clearpay_TD_Image
Klarna_TD_Image
V12_TD_Image
Description
Two-piece jig Quick & simple to set-up Portable template set Trend Hinge Jig 2 Piece With Accessories H/JIG/A The Trend Hinge Jig A H/JIG/A is a two-piece jig for quick, accurate, repeatable fitting of hinges to doors and frames. The...
See Full Description
stars-5
5.0 (120 Reviews)
£218.90
£235.00
inc VAT

In stock

Order within [hour], for earliest possible delivery on [date_start]
Delivery Info:

Standard Delivery (3-5 Working Days) £4.99


Next Day Delivery (Same Day Dispatch) £9.99


On-Site Delivery (Within a Hour) £Call Us


FREE Delivery for ALL Orders over £250


Description

  • Two-piece jig
  • Quick & simple to set-up
  • Portable template set

Trend Hinge Jig 2 Piece With Accessories H/JIG/A

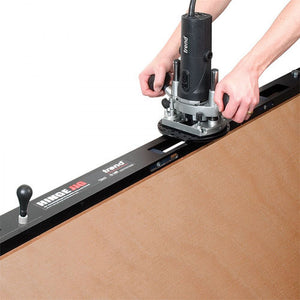

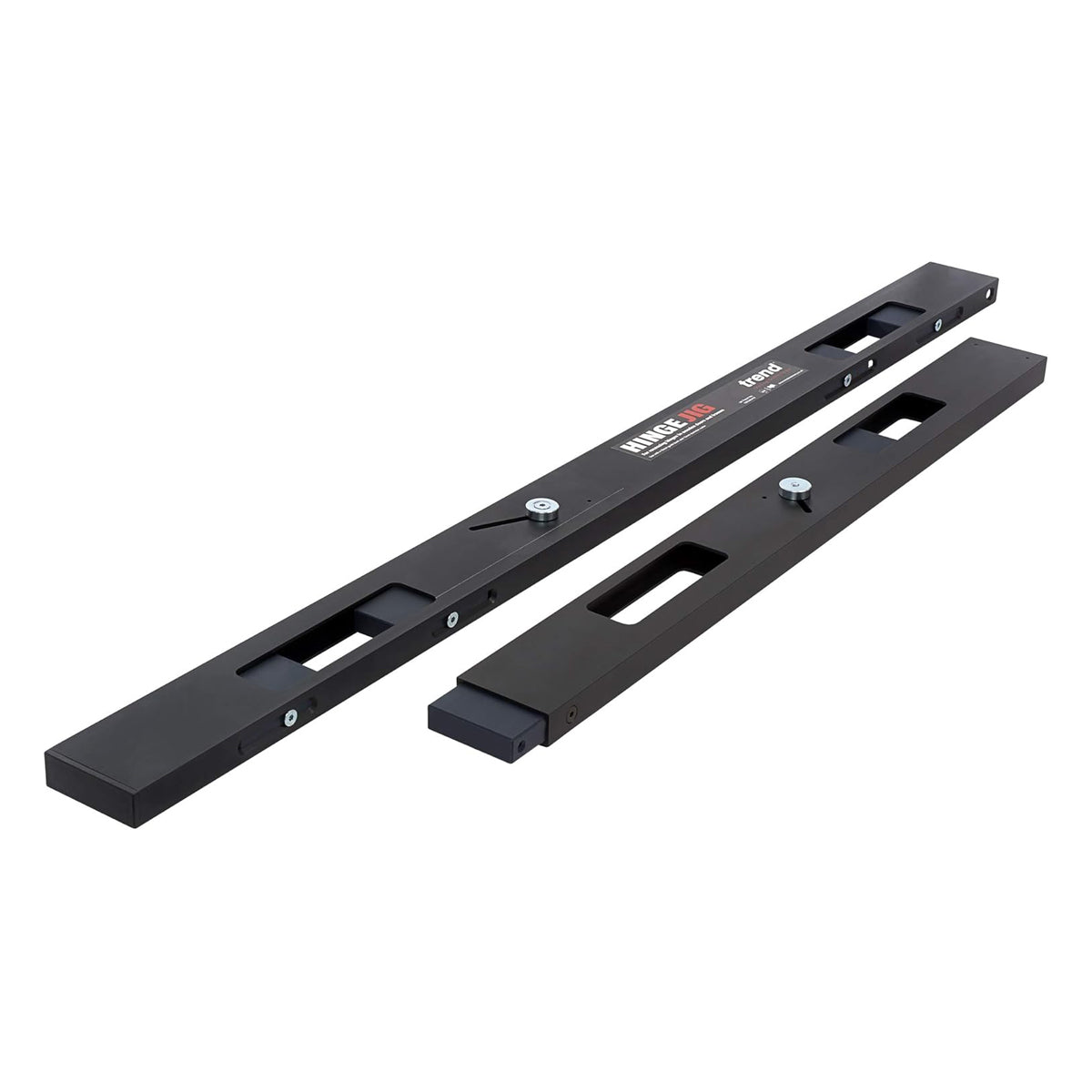

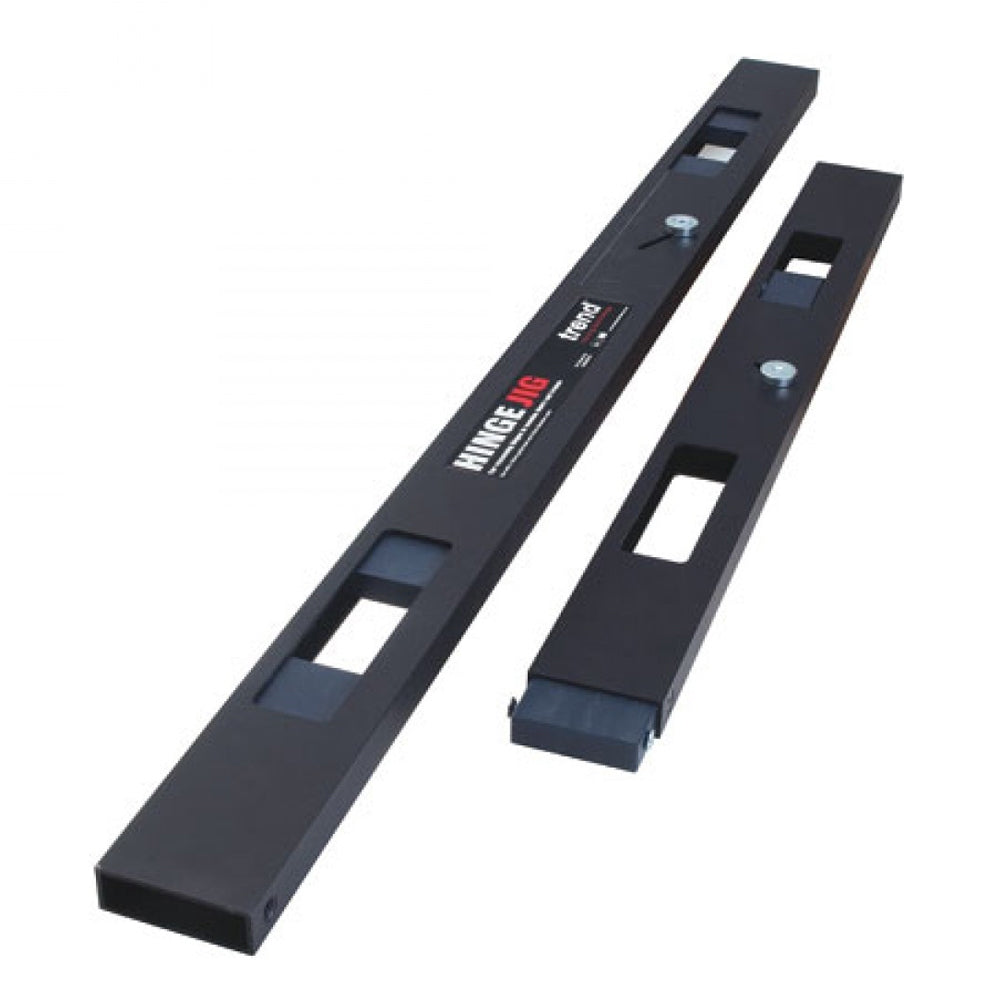

The Trend Hinge Jig A H/JIG/A is a two-piece jig for quick, accurate, repeatable fitting of hinges to doors and frames. The two-part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames using a plunge router.

Features:

It is easy to use with minimal setting-up time, completing the job both accurately & quickly
Used on-site & in joinery shops to increase productivity with excellent results
Four apertures are required for the fire door
There is no need to mark things out in the conventional way
It is quick and simple to set up as the hinge is used as the pattern
Every time, clean and accurate recesses are achieved. Suitable for timber-based doors and square butt hinges
Can be used on both inside and outside doors, rebated frames, and maximum 25mm thick fixed stops
Use with a light-duty plunge router with a 1/4 inch collet
Long reach router cutter required, 12mm diameter with 70mm overall length
Angled position slots prevent creep
Unibase may be needed
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160

Comes With:

4 x Apertures
2 x Bradawls with spacer
1 x 16mm guide bush
1 x T-Handle hex key
1 x 4mm spacing gauge
1 x Carry case

Product Specification:

Part Number: H/JIG/A
Barcode: 5027654536339

Hinge Sizes Possible:

Length min.: 2 5/8" (67 mm)
Length max.: 5" (127 mm)
Width min.: 3/8" (9.5 mm)
Width max.: 1 3/8" (35 mm)

Door Sizes Possible:

Height min.: 6' 5" (1955 mm)
Height max.: 2100 mm*
Thickness min.: 5/8" (16 mm)

**images for illustrative purposes only – please refer to description and specification for full details of product**
