WAGO ABOX 221 IP65 32A 5-TERMINAL WEATHERPROOF OUTDOOR JUNCTION BOX 110MM X 110MM X 67MM

SKU: 12121-WAG

Credit Plans Available. Find out more

Clearpay_TD_Image

Klarna_TD_Image

V12_TD_Image

Description

WHAT'S IN THE BOX 1x WAGO ABOX 221 IP65 32A 5-TERMINAL WEATHERPROOF OUTDOOR JUNCTION BOX 110MM X 110MM X 67MM (9390G) NOTES FROM MT EXPERT Polycarbonate Construction OVERVIEW WAGO ABOX 221 IP65 32A 5-TERMINAL WEATHERPROOF OUTDOOR JUNCTION BOX 110MM X...

See Full Description

stars-5

5.0 (120 Reviews)

£18.25

£20.99

inc VAT

Qty:

In stock

Order within [hour], for earliest possible delivery on [date_start]

You might also like

Description

WHAT'S IN THE BOX

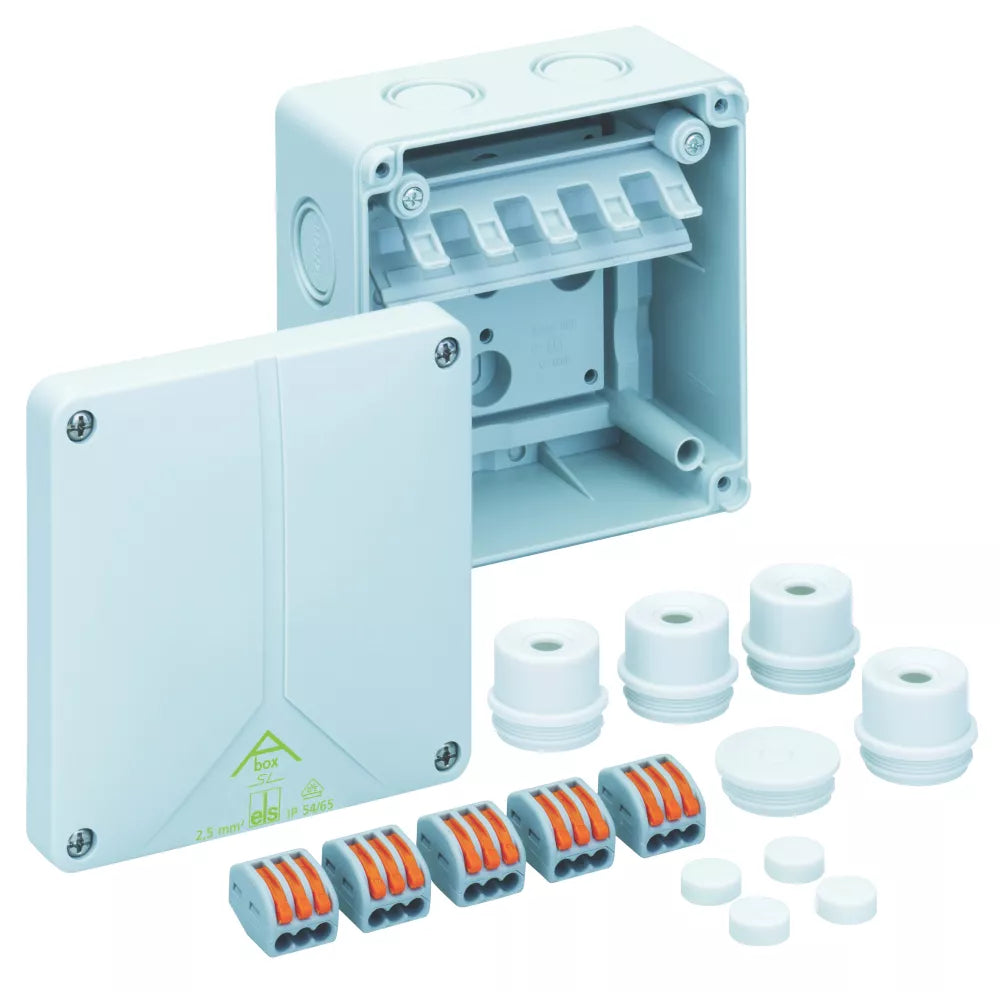

1x WAGO ABOX 221 IP65 32A 5-TERMINAL WEATHERPROOF OUTDOOR JUNCTION BOX 110MM X 110MM X 67MM (9390G)

NOTES FROM MT EXPERT

Polycarbonate Construction

WAGO ABOX 221 IP65 32A 5-TERMINAL WEATHERPROOF OUTDOOR JUNCTION BOX 110MM X 110MM X 67MM (9390G)

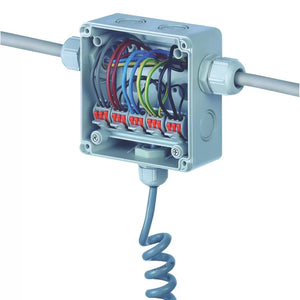

Adaptable electrical junction box with Wago 222 Series connectors. Easy to use and provides a reliable connection for solid, stranded or flexible conductors. Ideal for lighting and power applications. IP65 glands required for outside use (sold separately).

IK08 Impact Resistance
Polycarbonate Construction
Top, Bottom, Side & Rear Knockouts

SPECIFICATION
Brand	Wago
Colour	Grey
Construction Material (Electrical)	Polycarbonate
Current Rating	32 A
External Depth	110 mm
External Height	67 mm
External Width	110 mm
Fixings Supplied	Fittings Not Supplied
IK Rating	IK08
IP Rating	IP65
Internal Depth	100 mm
Internal Height	40 mm
Internal Width	100 mm
Knockout Position	Top, Bottom, Side & Rear Knockouts
Knockout Size	M20 & M25
Manufacturer Guarantee	1 Year Guarantee
Model Name	ABOX 221
Model No	51004456
No. of Knockouts	9
No. of Terminals	5
Pack Size	1
Parent Colour	Grey
Pieces in Pack/Case	1
Product Type	Junction Box
Suitable Cable Size	0.08-2.5 mm²
Temperature Range	-35 to 80 °C
Terminal Capacity	Terminals accept up to 4mm² cable
Terminal Description	Spring Lever Terminals
Voltage Rating	450V AC
