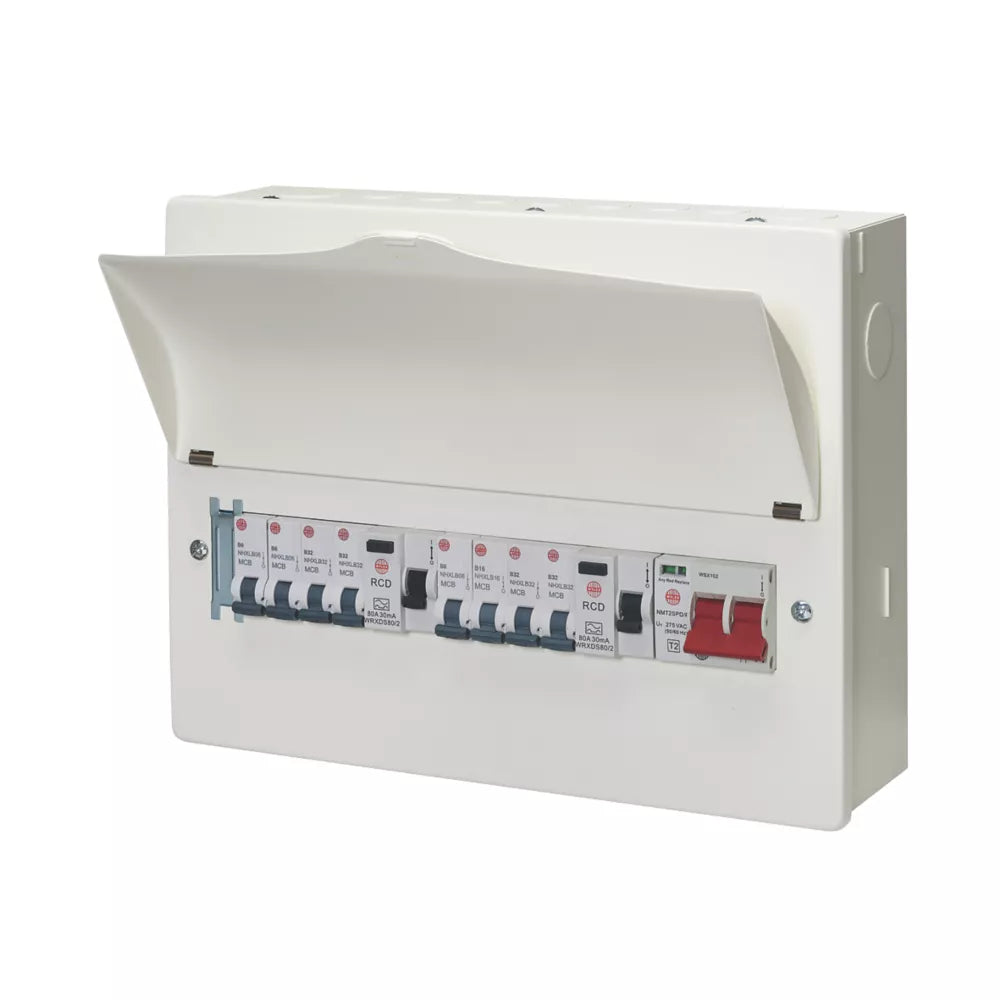

WYLEX 16-MODULE 9-WAY POPULATED HIGH INTEGRITY DUAL RCD CONSUMER UNIT WITH SPD (472VF)
18th Edition Amendment 2. Flexible configuration. 100A twin terminal main isolator and factory fitted surge protection device (pre-wired and connected). Curved visor with temporary locking facility.
- 40kA Type 2 SPD
- 100A Mains Switch
- 2 x Type A 80A 30mA RCDs
- 8 x Type B MCBs (3 x 6A, 1 x 16A & 4 x 32A)
- 1 Blanks
- Flexible Busbar
- DIN Rail Supplied
- Top Left, Bottom Left & Rear Cable Entry Points
- Low Smoke & Fume Paint
| SPECIFICATION |
| Brand |
Wylex |
| Busbar Type |
Flexible Busbar |
| CSU Populated/Unpopulated |
Populated |
| Cable Entry Points |
Top Left, Bottom Left & Rear |
| Construction Material (Electrical) |
Metal |
| Consumer Unit Type |
Dual RCD |
| Current Rating |
80 A |
| DIN Rail Supplied |
DIN Rail Supplied |
| Fixings Supplied |
Fixings & Fittings Not Supplied |
| IP Rating |
IP2XC |
| Integrity |
High Integrity |
| MCBs Supplied |
MCB |
| Mains Switch Rating |
100A Mains Switch |
| Manufacturer Guarantee |
1 Year Guarantee |
| Model No |
GB6:SFNM9HIBU8S1 |
| No. of MCBs Supplied |
8 x Type B MCBs (3 x 6A, 1 x 16A & 4 x 32A) |
| No. of Populated Ways |
9 |
| No. of RCBOs Supplied |
0 x RCBOs |
| No. of RCDs Supplied |
2 x Type A 80A 30mA RCDs |
| No. of SPDs Supplied |
40kA Type 2 SPD |
| Pack Size |
1 |
| Pieces in Pack/Case |
1 |
| Power Voltage Supply |
230 V |
| Product Depth |
129 mm |
| Product Height |
274 mm |
| Product Type |
9W Metal Hi Int CU SPD + 8MCBs + 1 Blank |
| Product Width |
359 mm |
| RCBOs Supplied |
No RCBOs Supplied |
| RCD Type |
Type A |
| RCDs Supplied |
RCD |
| SPDs Supplied |
SPD |
| Total No. Module Spaces When Empty |
16 |
| Total Product Weight |
5.6 kg |
| Way |
9 Way |
PRODUCT CONTENTS
9-Way Metal CU, one module wide SPD, mains switch, blank and MCBs (8).
