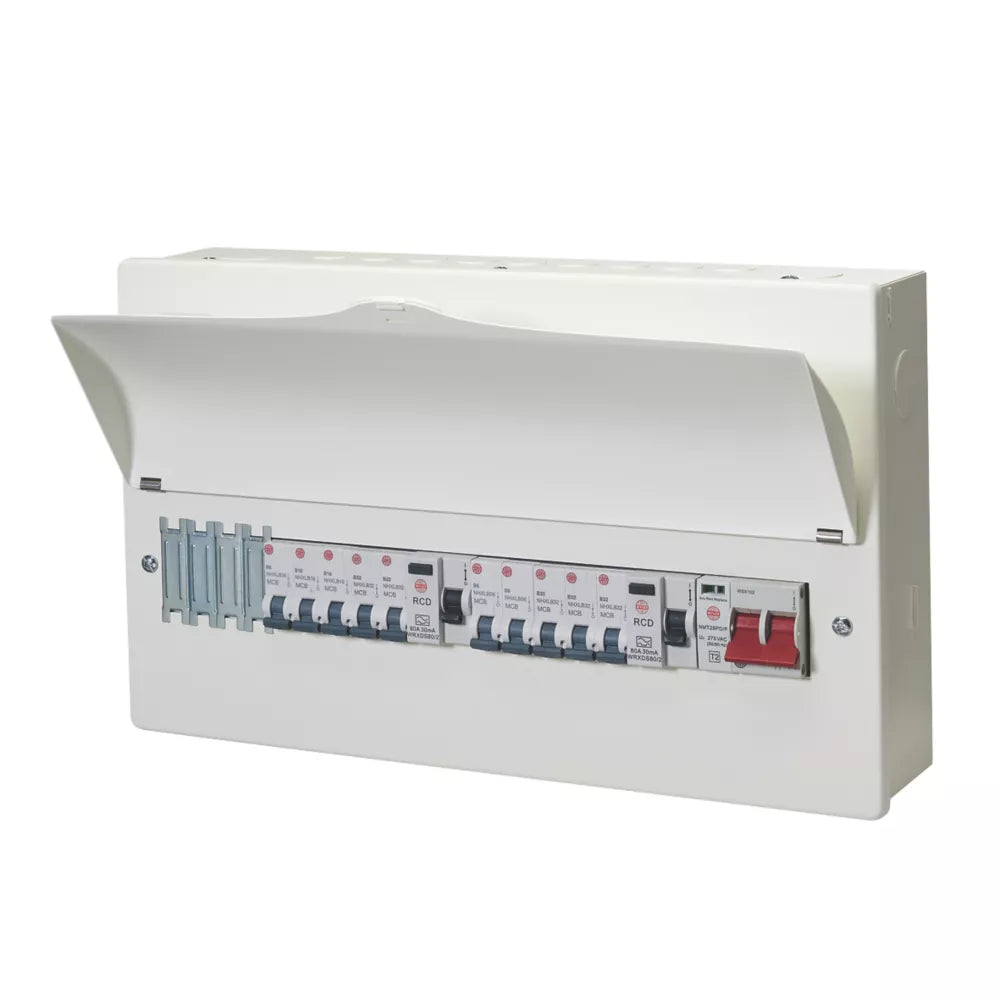

WYLEX 21-MODULE 14-WAY POPULATED HIGH INTEGRITY MAIN SWITCH CONSUMER UNIT WITH SPD (605VF)
18th Edition Amendment 2. Flexible configuration. 100A main switch and factory fitted surge protection device (pre-wired and connected). Curved visor with temporary locking facility.
- 40kA Type 2 SPD
- 100A Mains Switch
- 2 x Type A 80A 30mA RCDs
- 10 x Type B MCBs (3 x 6A, 2 x 16A & 5 x 32A)
- 4 Blanks
- Flexible Busbar
- DIN Rail Supplied
- Top Left, Bottom Left & Rear Cable Entry Points
- Low Smoke & Fume Paint
| SPECIFICATION |
| Brand |
Wylex |
| Busbar Type |
Flexible Busbar |
| CSU Populated/Unpopulated |
Populated |
| Cable Entry Points |
Top Left, Bottom Left & Rear |
| Construction Material (Electrical) |
Metal |
| Consumer Unit Type |
Main Switch |
| Current Rating |
80 A |
| DIN Rail Supplied |
DIN Rail Supplied |
| Fixings Supplied |
Fixings & Fittings Not Supplied |
| IP Rating |
IP2X |
| Integrity |
High Integrity |
| MCBs Supplied |
MCB |
| Mains Switch Rating |
100A Mains Switch |
| Manufacturer Guarantee |
1 Year Guarantee |
| Model No |
GB6:SFNM14HIBU10S1 |
| No. of MCBs Supplied |
10 x Type B MCBs (3 x 6A, 2 x 16A & 5 x 32A) |
| No. of Populated Ways |
14 |
| No. of RCBOs Supplied |
0 x RCBOs |
| No. of RCDs Supplied |
2 x Type A 80A 30mA RCDs |
| No. of SPDs Supplied |
40kA Type 2 SPD |
| Pack Size |
1 |
| Pieces in Pack/Case |
1 |
| Power Voltage Supply |
230 V |
| Product Depth |
131 mm |
| Product Height |
276 mm |
| Product Type |
14W Metal Hi Int CU SPD, 10MCBs, 4Blanks |
| Product Width |
453 mm |
| RCBOs Supplied |
No RCBOs Supplied |
| RCD Type |
Type A |
| RCDs Supplied |
RCD |
| SPDs Supplied |
SPD |
| Total No. Module Spaces When Empty |
21 |
| Total Product Weight |
6.696 kg |
| Way |
14 Way |
PRODUCT CONTENTS

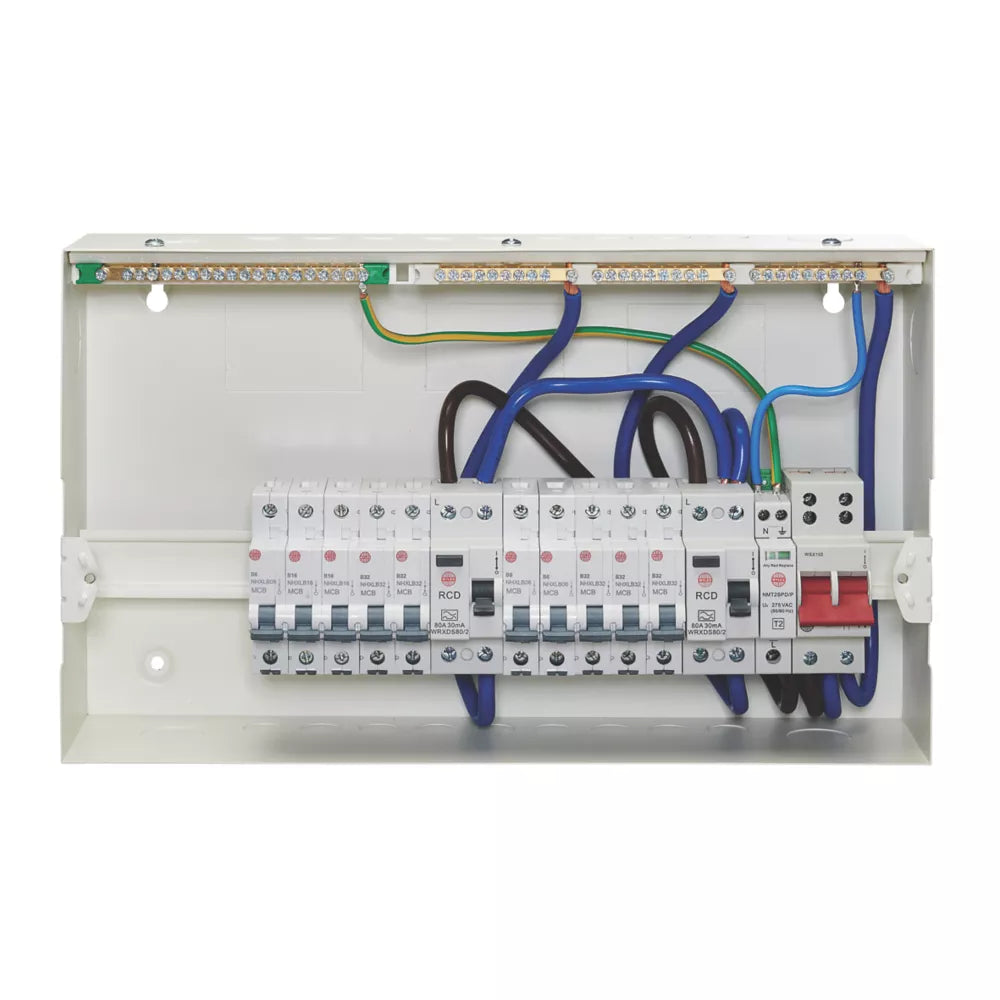

14-Way Metal CU, one module wide SPD, mains switch, blanks (4) and MCBs (10).
