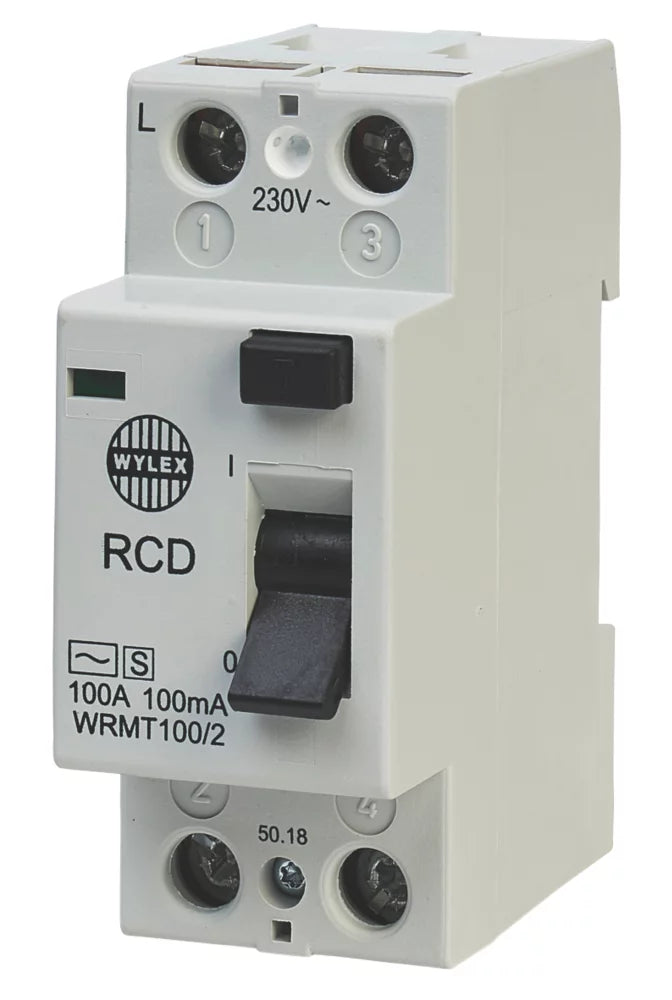

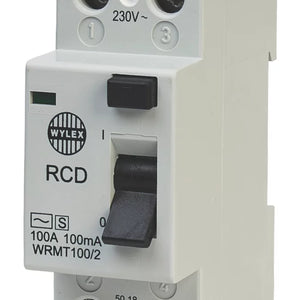

WYLEX LIFELINE 100A 100MA DP TYPE S TIME DELAY RCD

SKU: 11771-WYL

Credit Plans Available. Find out more

Clearpay_TD_Image

Klarna_TD_Image

V12_TD_Image

Description

WHAT'S IN THE BOX 1x WYLEX LIFELINE 100A 100MA DP TYPE S TIME DELAY RCD (563HV) NOTES FROM MT EXPERT Fully Shrouded Terminals OVERVIEW WYLEX LIFELINE 100A 100MA DP TYPE S TIME DELAY RCD (563HV) Suitable for use when total...

See Full Description

stars-5

5.0 (120 Reviews)

£68.74

£70.00

inc VAT

Qty:

In stock

Order within [hour], for earliest possible delivery on [date_start]

Description

WHAT'S IN THE BOX

1x WYLEX LIFELINE 100A 100MA DP TYPE S TIME DELAY RCD (563HV)

NOTES FROM MT EXPERT

Fully Shrouded Terminals

WYLEX LIFELINE 100A 100MA DP TYPE S TIME DELAY RCD (563HV)

Suitable for use when total RCD protection is required to supplement the system earthing and where local 30mA RCDs are used to give additional protection. Contact position indication on the dolly handle. Time delay will discriminate with the 30mA RCD.

DIN Rail Mounted Fitting
Type S Curve
Fully Shrouded Terminals
2-Module Size
Test Button

Brand	Wylex
CSU Device	RCDs
Curve Type	Type S
Earth Leakage Sensitivity (IDn)	100 mA
Incomer Fitting Type	DIN Rail Mounted
Manufacturer Guarantee	1 Year Guarantee
Model Name	Lifeline
Model No	SFWRMT100/2
No. of Phases	Single-Phase
Number of Poles	Double Pole
Pack Size	1
Pieces in Pack/Case	1
Product Type	Time Delay RCD
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Operational Current (In)	100 A
Rated Operational Voltage (Ue)	230 V
Suitable Cable Size	50 mm²
